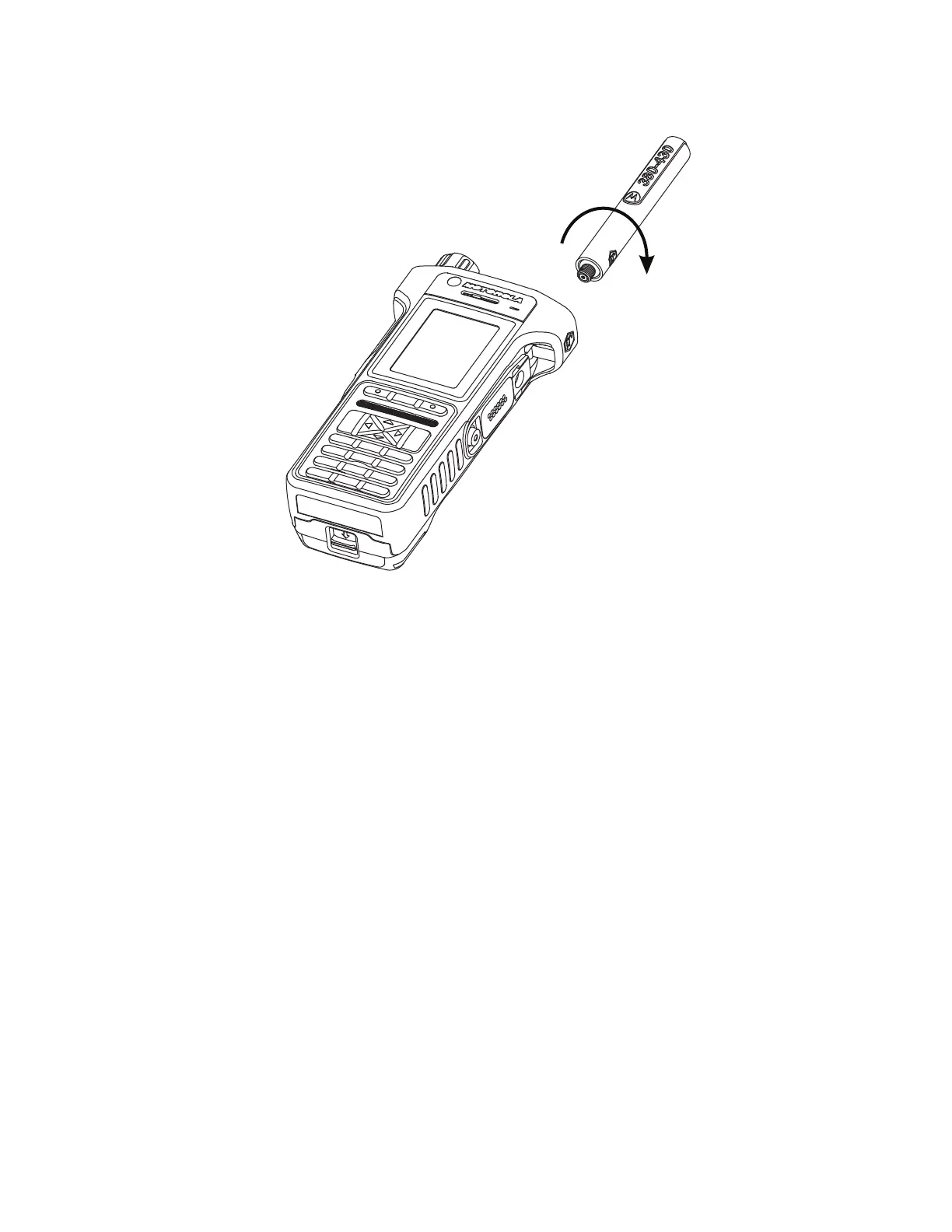

Figure 6: Antenna Removal
5.5.2.2
Removing the Battery
Procedure:
1 Place the unit facing down on the work area.
2 Lift the battery latch and slide the battery downwards away from the radio to remove the battery.
MN002465A01-AN
Chapter 5 : Maintenance
58
