Motorola MTP85 0EX Series Basic Service Manual

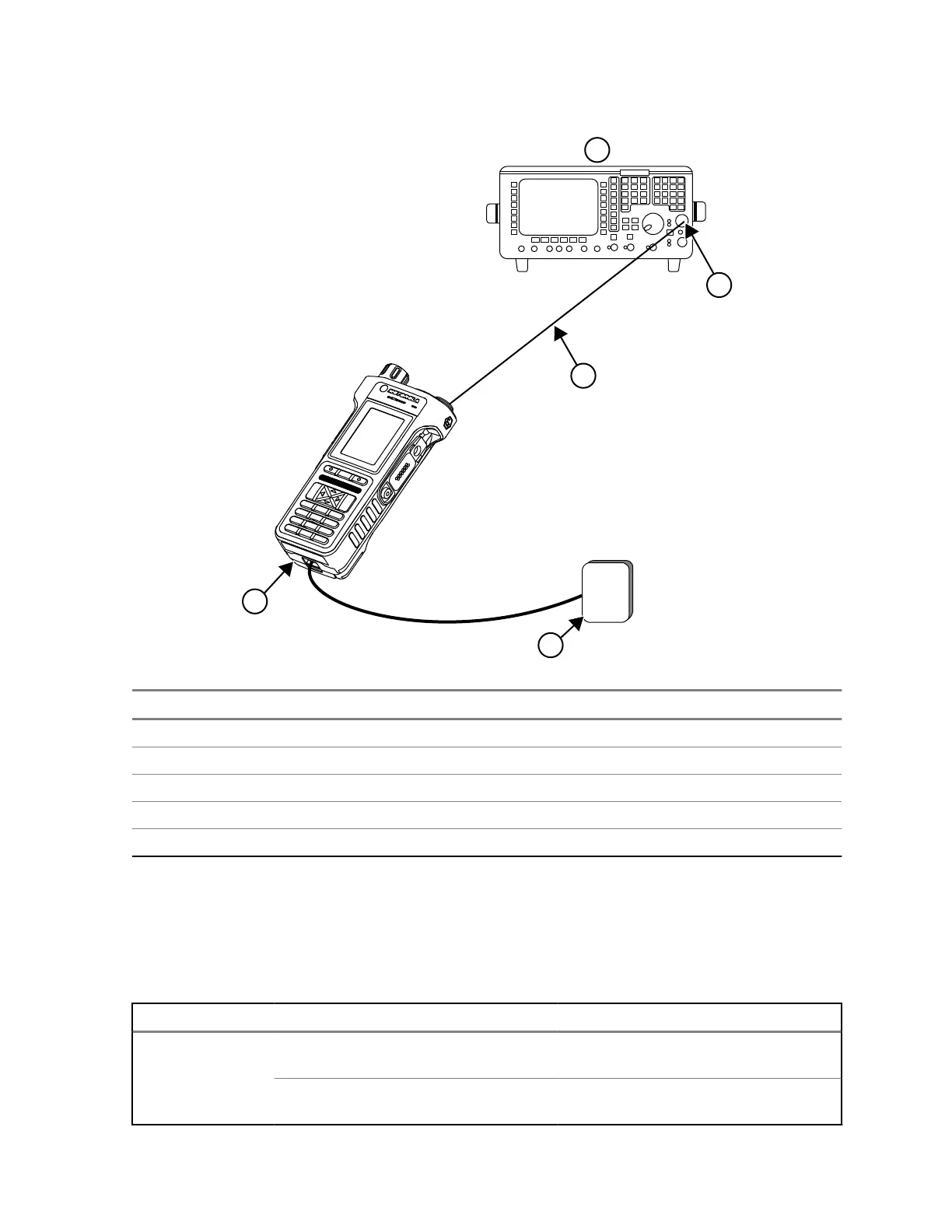

Figure 4: Typical Test Setup
2
3
1
4
5
Label Description
1 IFR 39xx/IFR 2968
2 N-Type RF Connector
3 SMA Cable
4 Battery Eliminator (PMLN7407_)
5 7.6 V Power Supply
4.2
Test Check List
Table 15: Test Setup for 350–470 MHz Radio Models
The following table summarizes the required test setup for 380–430 MHz radio models.
Test Name Test Setup Radio Setup Test Conditions Limits
Base Station
Registration
Control Channel 390.125 MHz 3605 TETRA
380+0MS
Traffic Channel 390.125 MHz 3605 TETRA
380+0MS
MN002465A01-AN
Chapter 4 : Test Setup and Testing
33
