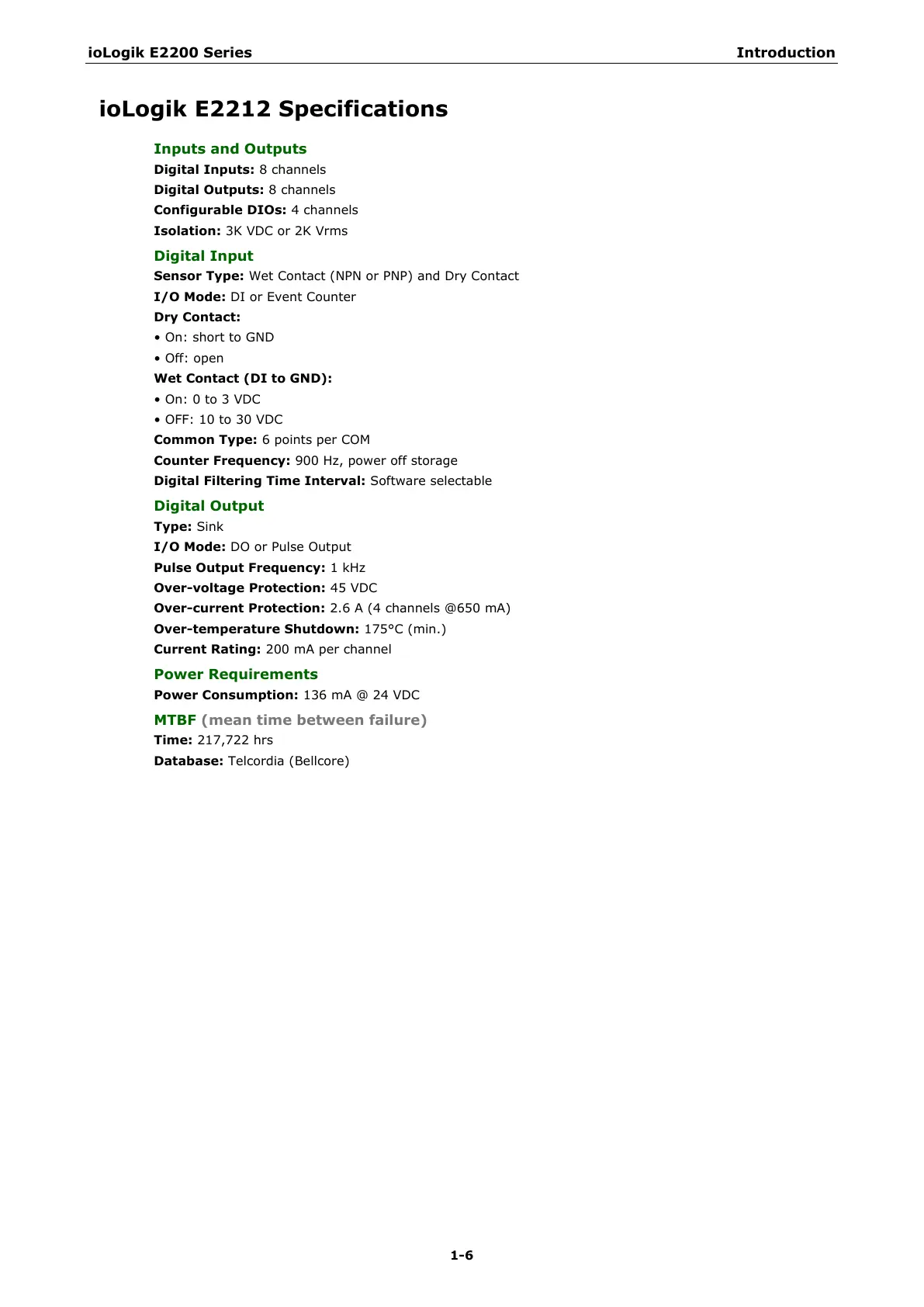

ioLogik E2200 Series Introduction
1-6
ioLogik E2212 Specifications
Inputs and Outputs
Digital Inputs:
8 channels
Digital Outputs:
8 channels
Configurable DIOs:
4 channels
Isolation:
3K VDC or 2K Vrms
Digital Input
Sensor Type:
Wet Contact (NPN or PNP) and Dry Contact
I/O Mode:
DI or Event Counter
Dry Contact:
• On: short to GND
• Off: open
Wet Contact (
DI to GND):
• On: 0 to 3 VDC
• OFF: 10 to 30 VDC
Common Type:
6 points per COM
Counter Frequency:
900 Hz, power off storage
Digital Filtering Time Interval:
Software selectable
Digital Output
Type:
Sink
I/O Mode:
DO or Pulse Output
Pulse Output Frequency:
1 kHz
Over
-voltage Protection: 45 VDC
Over
-current Protection: 2.6 A (4 channels @650 mA)
Over
-temperature Shutdown: 175°C (min.)
Current Rating:
200 mA per channel
Power Requirements
Power Consumption:
136 mA @ 24 VDC
MTBF
(mean time between failure)
Time:
217,722 hrs
Database:
Telcordia (Bellcore)
