ioLogik E2200 Series Click&Go
Working with Rules

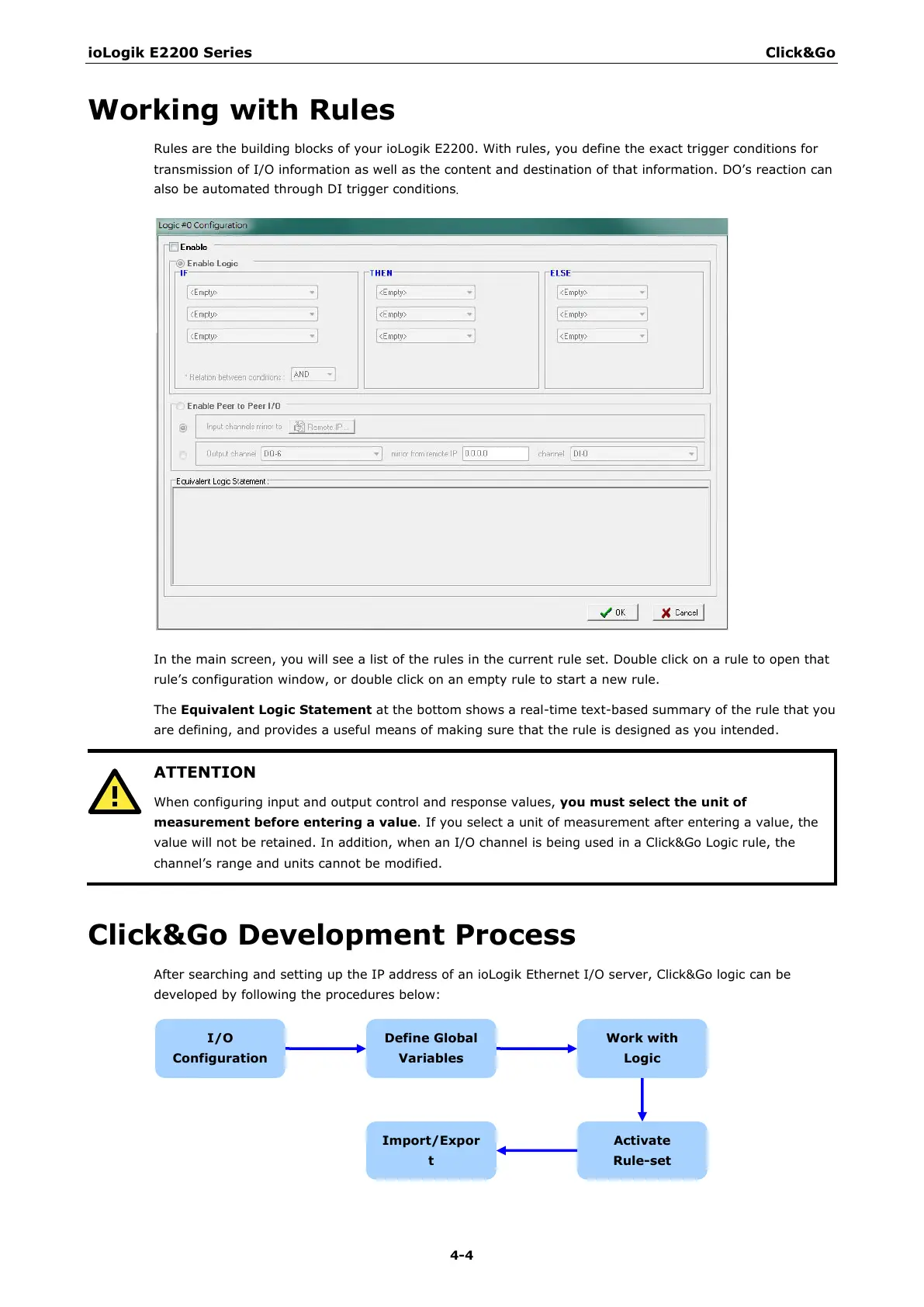

Rules are the building blocks of your ioLogik E2200. With rules, you define the exact trigger conditions for
transmission of I/O information as well as the content and destination of that information. DO’s reaction can
also be automated through DI trigger conditions.
In the main screen, you will see a list of the rules in the current rule set. Double click on a rule to open that
rule’s configuration window, or double click on an empty rule to start a new rule.
The Equivalent Logic Statement at the bottom shows a real-time text-based summary of the rule that you
are defining, and provides a useful means of making sure that the rule is designed as you intended.
ATTENTION
When configuring input and output control and response values,
you must select the unit of
measurement before entering a v
alue. If you select a unit of measurement after entering a value, the
value will not be retained. In addition, when an I/O channel is being used in a Click&Go Logic rule, the
channel’s range and units cannot be modified.
Click&Go Development Process
After searching and setting up the IP address of an ioLogik Ethernet I/O server, Click&Go logic can be
developed by following the procedures below:
I/O
Configuration
Define Global
Variables
Work with
Logic
Activate
Rule-set
Import/Expor
t
To Next Page
