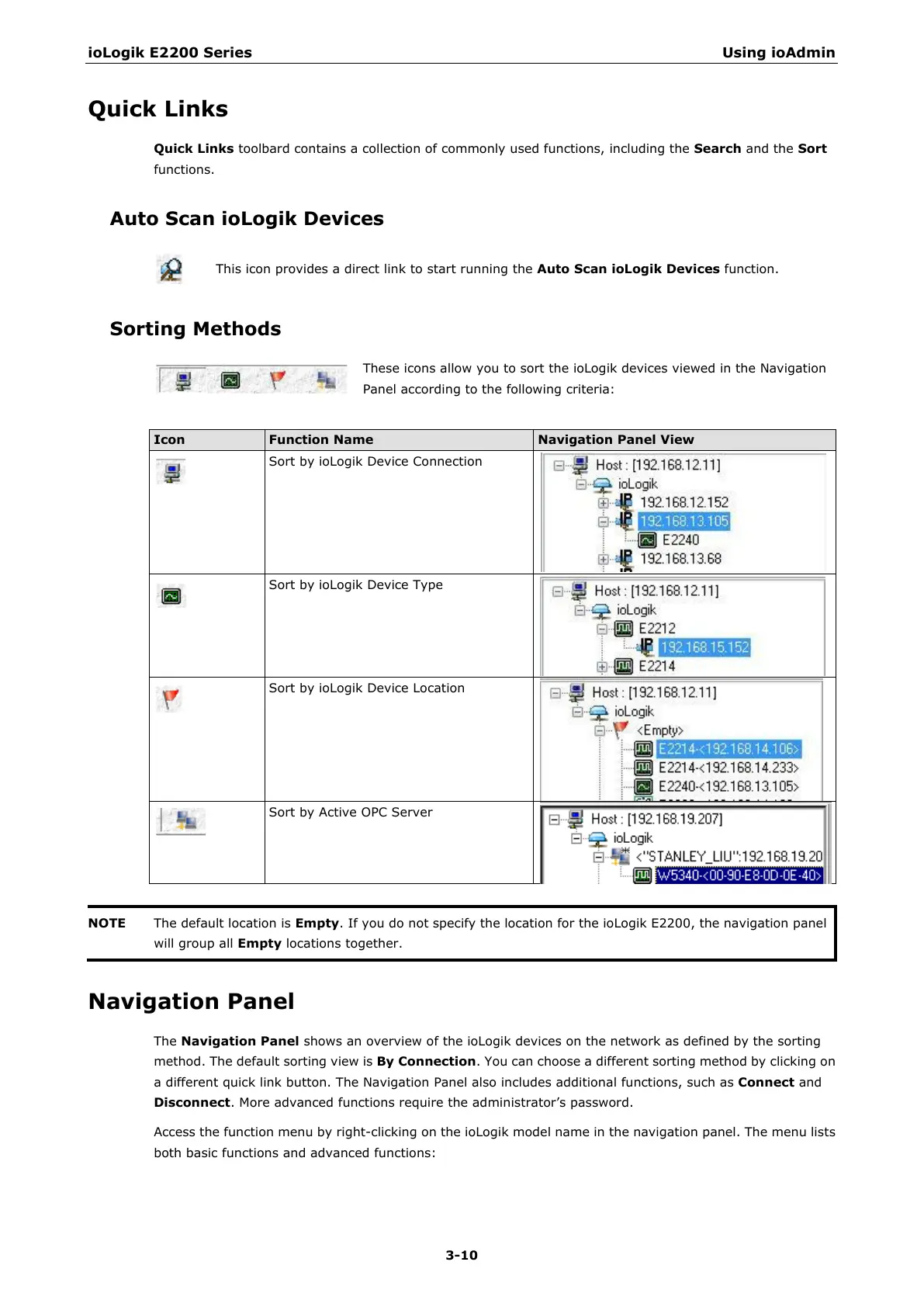

ioLogik E2200 Series Using ioAdmin
Quick Links
Quick Links toolbard contains a collection of commonly used functions, including the Search and the Sort
functions.
Auto Scan ioLogik Devices
This icon provides a direct link to start running the
Auto Scan ioLogik Devices function.
Sorting Methods
These icons allow you to sort the ioLogik devices viewed in the Navigation
Panel according to the following criteria:
Icon Function Name Navigation Panel View
Sort by ioLogik Device Connection
Sort by ioLogik Device Type
Sort by ioLogik Device Location
Sort by Active OPC Server
Empty. If you do not specify the location for the ioLogik E22
00, the navigation panel
will group all
Empty locations together.
Navigation Panel
The Navigation Panel shows an overview of the ioLogik devices on the network as defined by the sorting
method. The default sorting view is By Connection. You can choose a different sorting method by clicking on
a different quick link button. The Navigation Panel also includes additional functions, such as Connect and
Disconnect. More advanced functions require the administrator’s password.
Access the function menu by right-clicking on the ioLogik model name in the navigation panel. The menu lists
both basic functions and advanced functions:
