Moxa Technologies ioLogik E2200Series User Manual

ioLogik E2200 Series Introduction
1-8

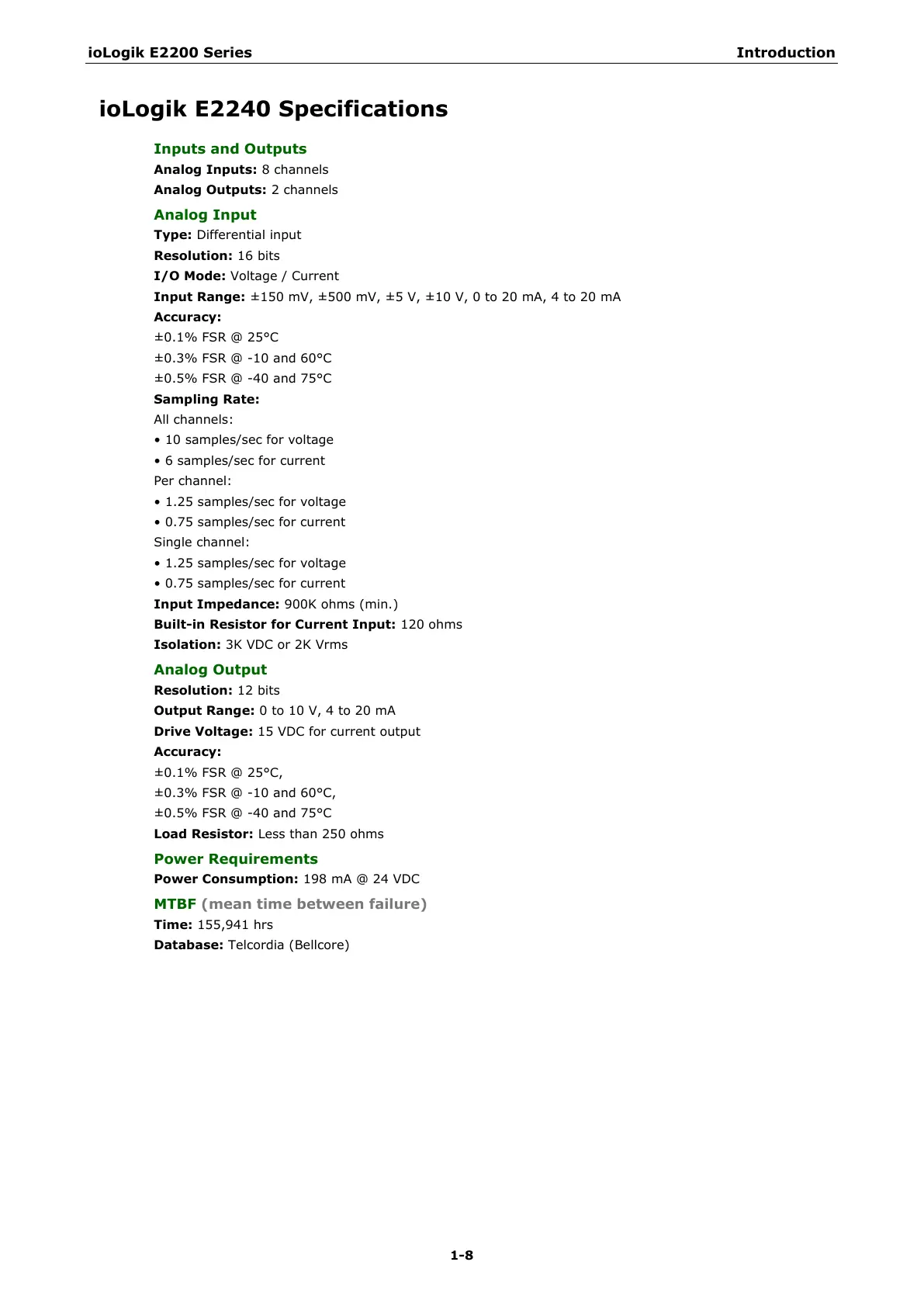

ioLogik E2240 Specifications
Inputs and Outputs
Analog Inputs:
8 channels
Analog Outputs:
2 channels
Analog Input
Type:
Differential input
Resolution:
16 bits
I/O Mode:
Voltage / Current
Input Range:
±150 mV, ±500 mV, ±5 V, ±10 V, 0 to 20 mA, 4 to 20 mA
Accuracy:
±0.1% FSR @ 25°C
±0.3% FSR @
-10 and 60°C
±0.5% FSR @
-40 and 75°C
Sampling Rate:
All channels:
• 10 samples/sec for voltage
• 6 samples/sec for current
Per
channel:
• 1.25 samples/sec for voltage
• 0.75 samples/sec for current
Single channel:
• 1.25 samples/sec for voltage
• 0.75 samples/sec for current
Input Impedance:
900K ohms (min.)
Built
-in Resistor for Current Input: 120 ohms
Isolation:
3K VDC or 2K Vrms
Analog Output
Resolution:
12 bits
Output Range:
0 to 10 V, 4 to 20 mA
Drive Voltage:
15 VDC for current output
Accuracy:
±0.1% FSR @ 25°C,
±0.3% FSR @
-10 and 60°C,
±0.5% FSR @
-40 and 75°C
Load Resistor:
Less than 250 ohms
Power Requirements
Power Consumption:
198 mA @ 24 VDC
MTBF (mean time between failure)
Time:
155,941 hrs
Database:
Telcordia (Bellcore)
