ioLogik E2200 Series Introduction
1-13

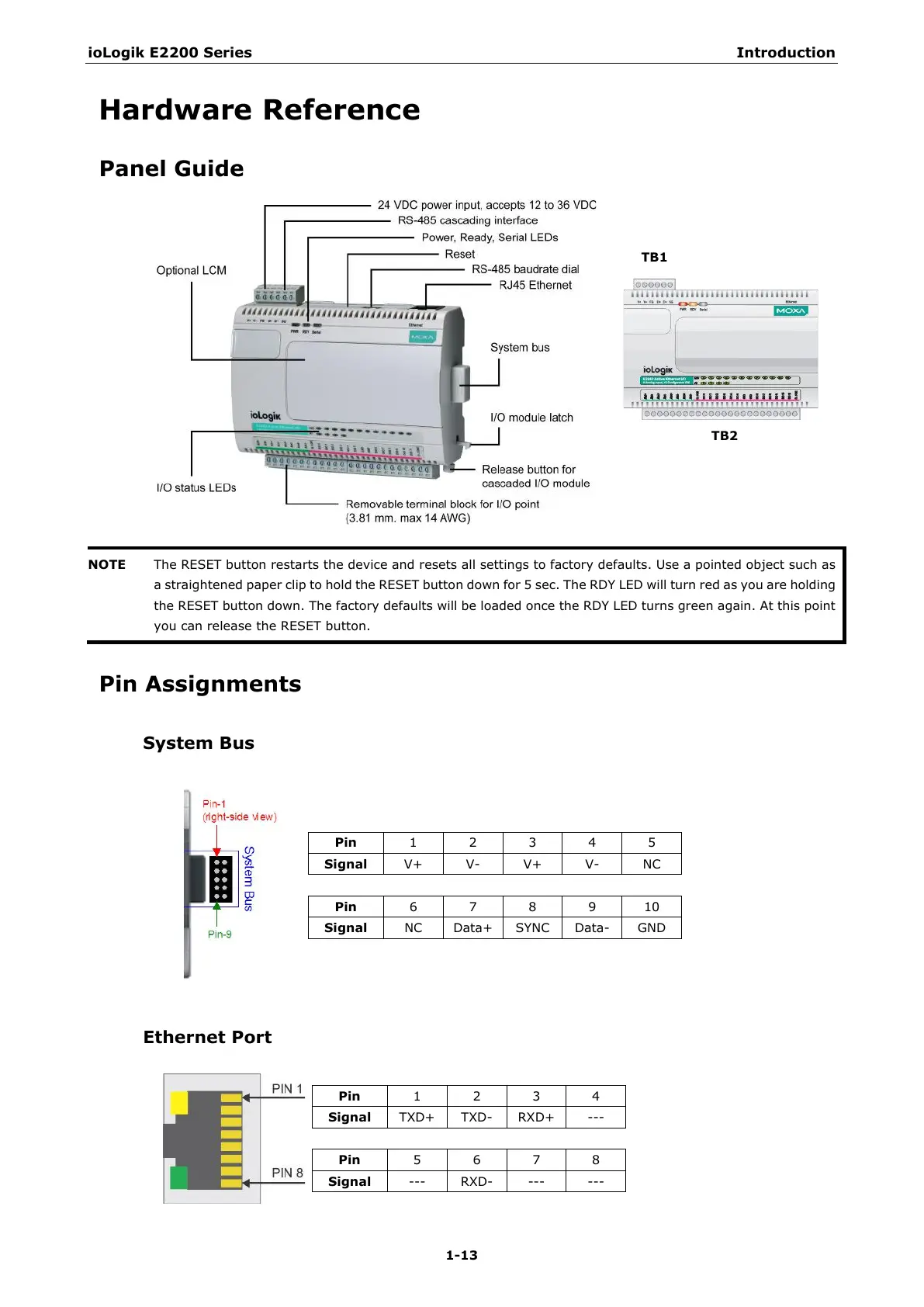

Hardware Reference
Panel Guide
NOTE
The RESET button restarts the device and resets all settings to factory defaults. Use a pointed object such as
a straightened paper clip to hold the RESET button down for 5 sec. The RDY LED will turn red as you are holding
the RESET button down. The factory defaults will be loaded once the RDY LED turns green again. At this point
you can release the RESET b
utton.
Pin Assignments
System Bus
Pin 1 2 3 4 5
Signal V+ V- V+ V- NC
Pin 6 7 8 9 10
Signal NC Data+ SYNC Data- GND
Ethernet Port
Pin 1 2 3 4
Signal TXD+ TXD- RXD+ ---
Pin 5 6 7 8
Signal --- RXD- --- ---
TB1
TB2
