ioLogik E2200 Series Introduction
1-11

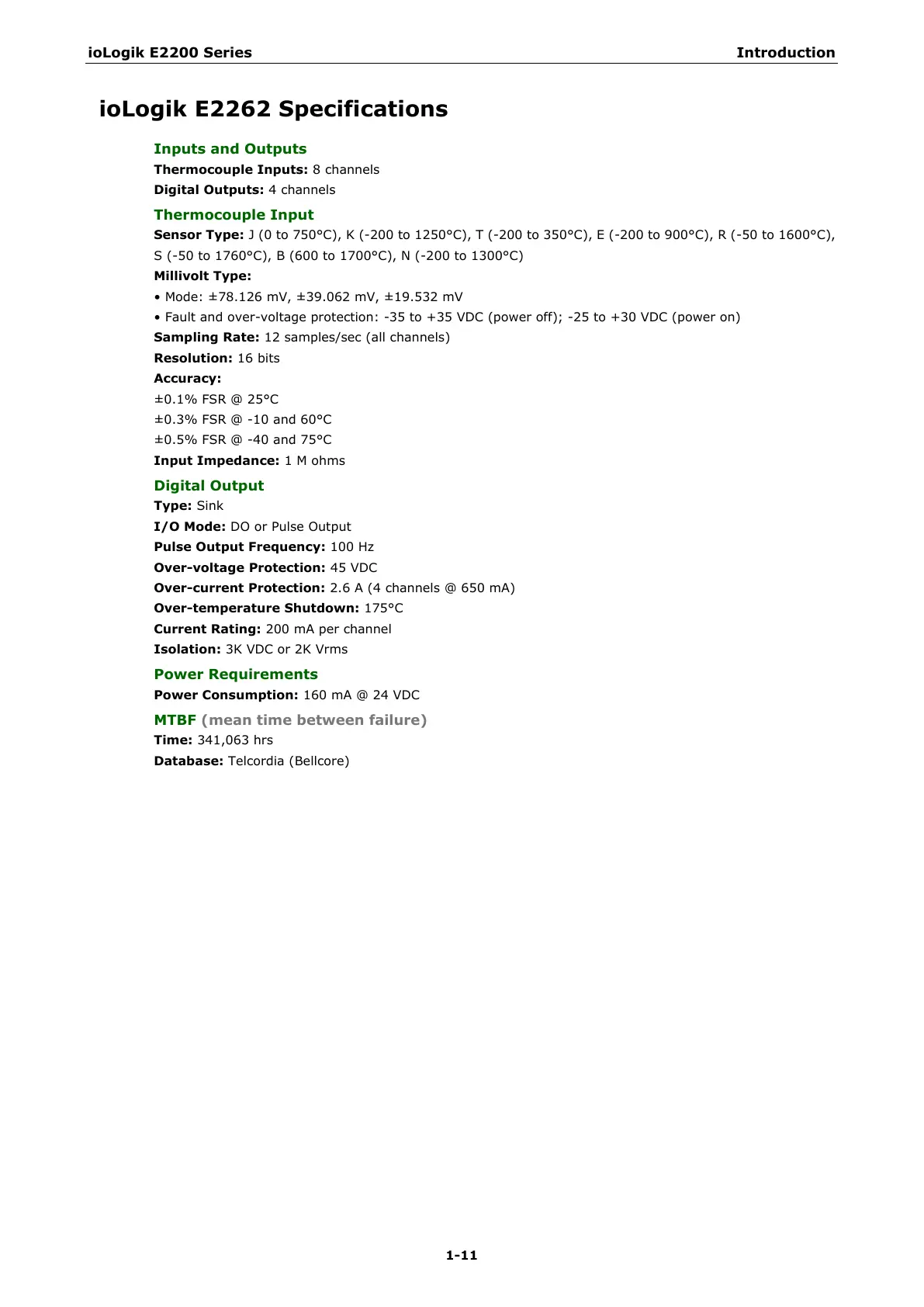

ioLogik E2262 Specifications
Inputs and Outputs
Thermocouple Inputs:
8 channels
Digital Outputs:
4 channels
Thermocouple Input
Sensor Type:
J (0 to 750°C), K (-200 to 1250°C), T (-200 to 350°C), E (-200 to 900°C), R (-
50 to 1600°C),
S (
-50 to 1760°C), B (600 to 1700°C), N (-200 to 1300°C)
Millivolt Type:
• Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV
• Fault and over
-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)
Sampling Rate:
12 samples/sec (all channels)
Resolution:
16 bits
Accuracy:
±0.1% FSR @ 25°C
±0.3% FS
R @ -10 and 60°C
±0.5% FSR @
-40 and 75°C
Input Impedance:
1 M ohms
Digital Output
Type:
Sink
I/O Mode:
DO or Pulse Output
Pulse Output Frequency:
100 Hz
Over
-voltage Protection: 45 VDC
Over
-current Protection: 2.6 A (4 channels @ 650 mA)
Over
-temperature Shutdown: 175°C
Current Rating:
200 mA per channel
Isolation:
3K VDC or 2K Vrms
Power Requirements
Power Consumption:
160 mA @ 24 VDC
MTBF
(mean time between failure)
Time:
341,063 hrs
Database:
Telcordia (Bellcore)
