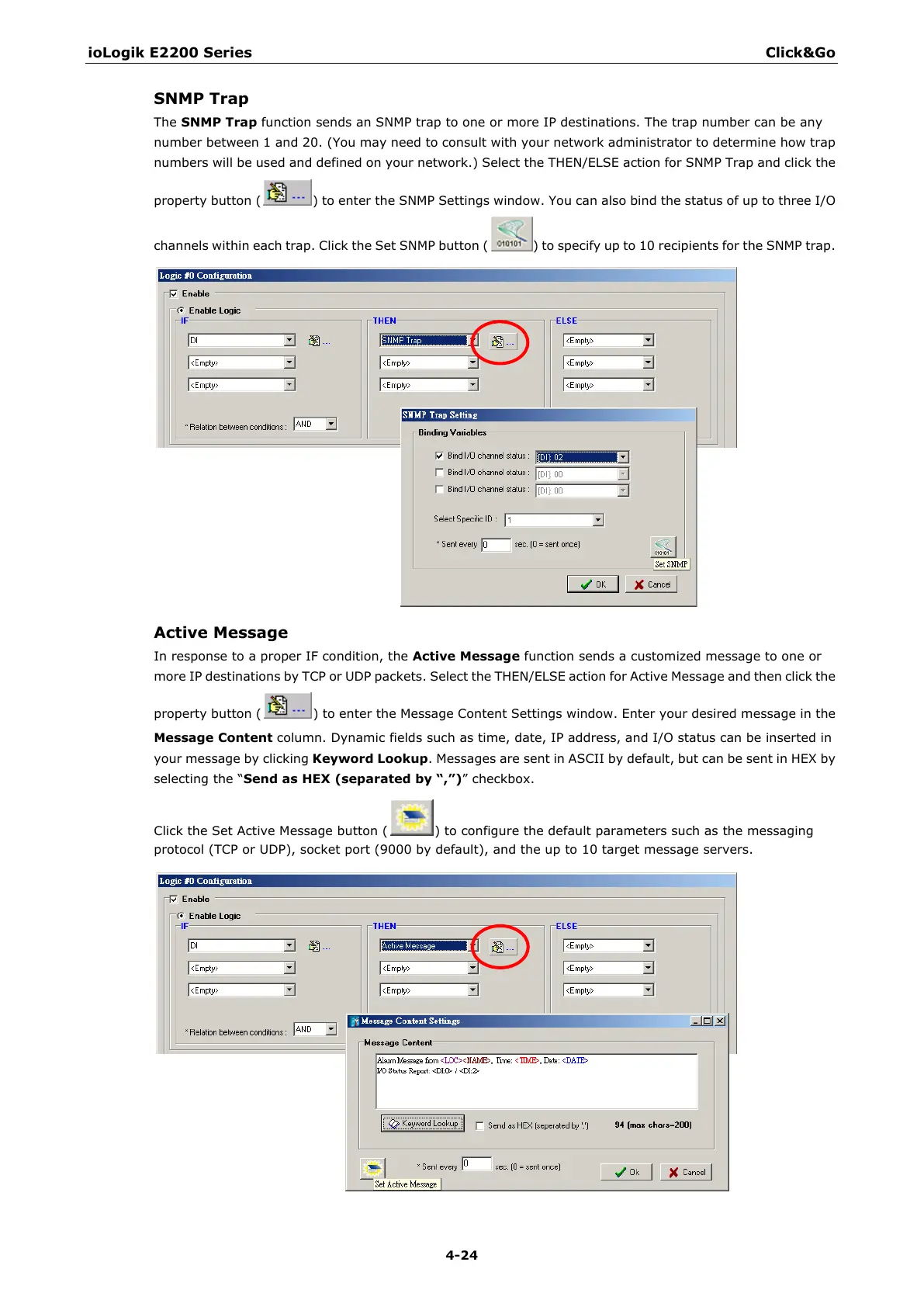

ioLogik E2200 Series Click&Go
SNMP Trap
The SNMP Trap function sends an SNMP trap to one or more IP destinations. The trap number can be any
number between 1 and 20. (You may need to consult with your network administrator to determine how trap
numbers will be used and defined on your network.) Select the THEN/ELSE action for SNMP Trap and click the
property button ( ) to enter the SNMP Settings window. You can also bind the status of up to three I/O
channels within each trap. Click the Set SNMP button ( ) to specify up to 10 recipients for the SNMP trap.
Active Message
In response to a proper IF condition, the Active Message function sends a customized message to one or
more IP destinations by TCP or UDP packets. Select the THEN/ELSE action for Active Message and then click the
property button ( ) to enter the Message Content Settings window. Enter your desired message in the
Message Content column. Dynamic fields such as time, date, IP address, and I/O status can be inserted in
your message by clicking Keyword Lookup. Messages are sent in ASCII by default, but can be sent in HEX by
selecting the “Send as HEX (separated by “,”)” checkbox.
Click the Set Active Message button ( ) to configure the default parameters such as the messaging
protocol (TCP or UDP), socket port (9000 by default), and the up to 10 target message servers.
