Moxa Technologies NPort IA5150A User Manual

NPort IA5150A/IA5250A Series Initial IP Address Configuration
3-7

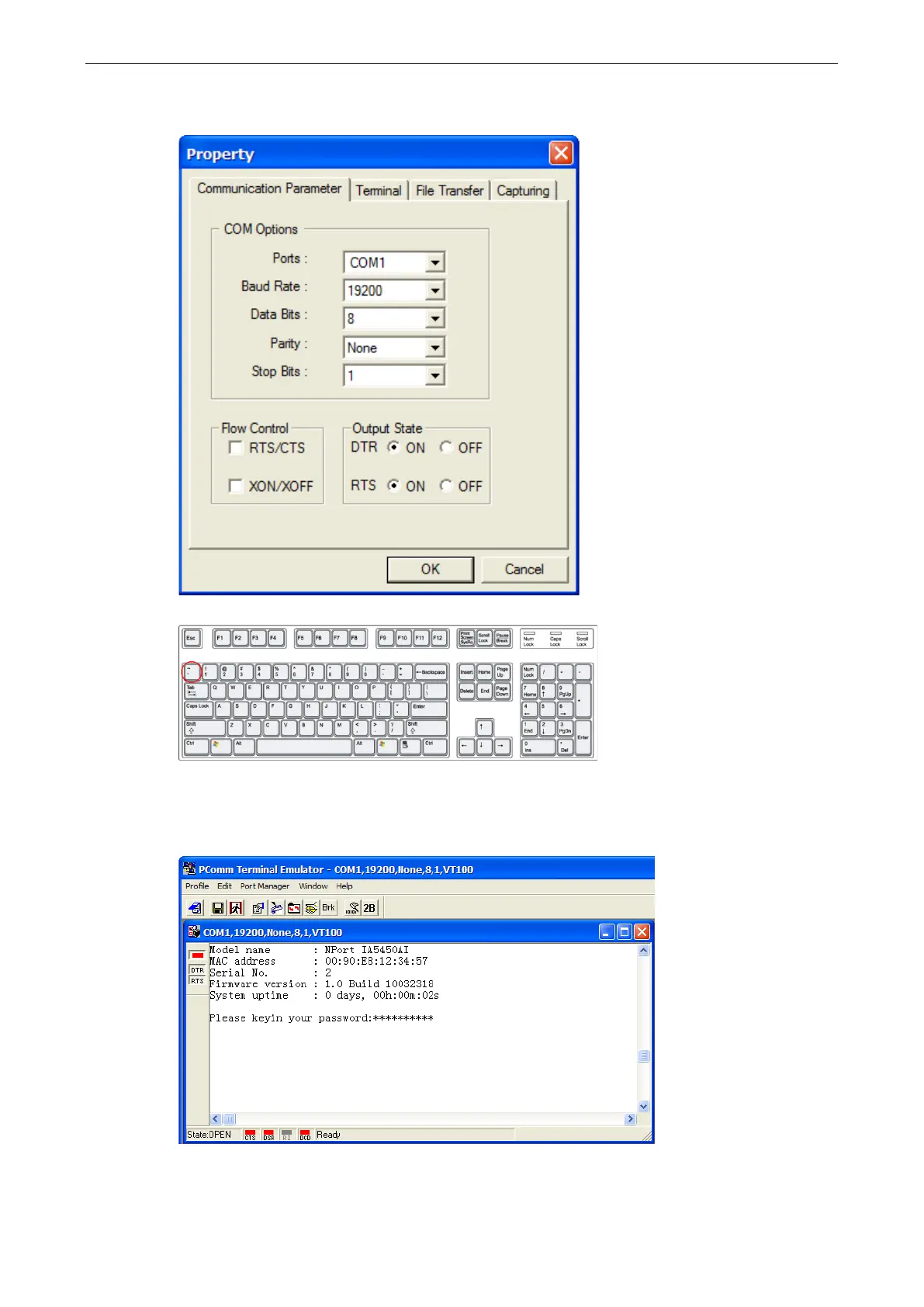

5. If you select Dumb Terminal as the terminal type, some of the console functions—especially the “Monitor”
function—may not work properly.
6. Press the “ ` ” key continuously and then power on the NPort IA5150A/IA5250A.
7. NPort IA5150A/IA5250A will automatically switch from data mode to console mode as it receives a
continuous string of “ ` ”.
8. Input the password when prompted. Note that this page will only appear when the NPort IA5150A/IA5250A
has been set up for password protection.

Moxa Technologies NPort IA5150A Specifications

General

Isolation	1.5 kV
Certification	CE, FCC
Serial interface type	RS-232/422/485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	2
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, HTTP, SMTP, SNTP, IGMP
Connectivity LEDs	Yes
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL-508

Weight and Dimensions

Weight	475 g
Dimensions (WxDxH)	36 x 105 x 140 mm
