MR MESSKO COMPACT User Manual

6 Installation and commissioning
36 5831400/02 EN
To attach the pointer thermometer to the transformer, proceed as follows:
1. Drill two holes, with a distance of 184mm (7.24") and a diameter of
12.5mm (0.49"), in a suitable bracket on the outside of the transformer,
on the control cabinet mounting plate or on another suitable structure.

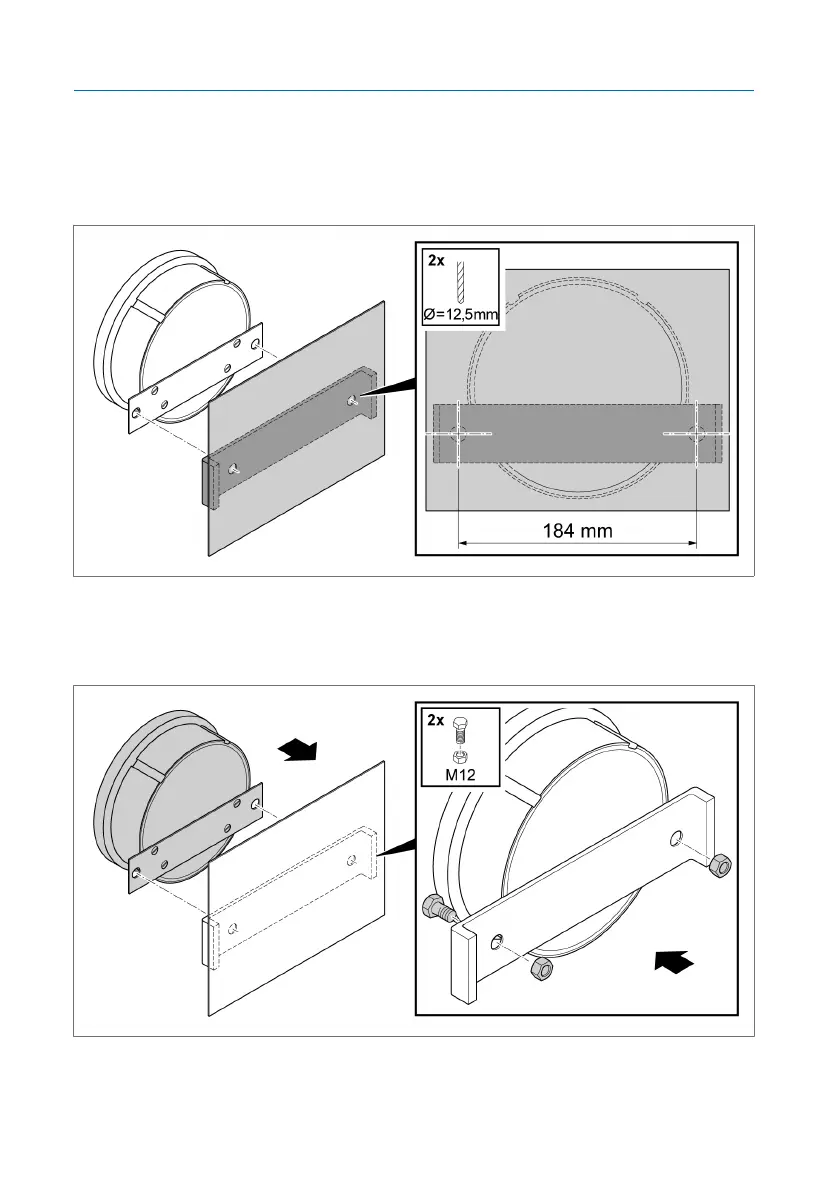

Figure14: Holes
2. Attach the pointer thermometer with mounting plate to the transformer.
Figure15: Attaching the pointer thermometer with mounting plate
