6 Installation and commissioning
38
5831400/02 EN
2.

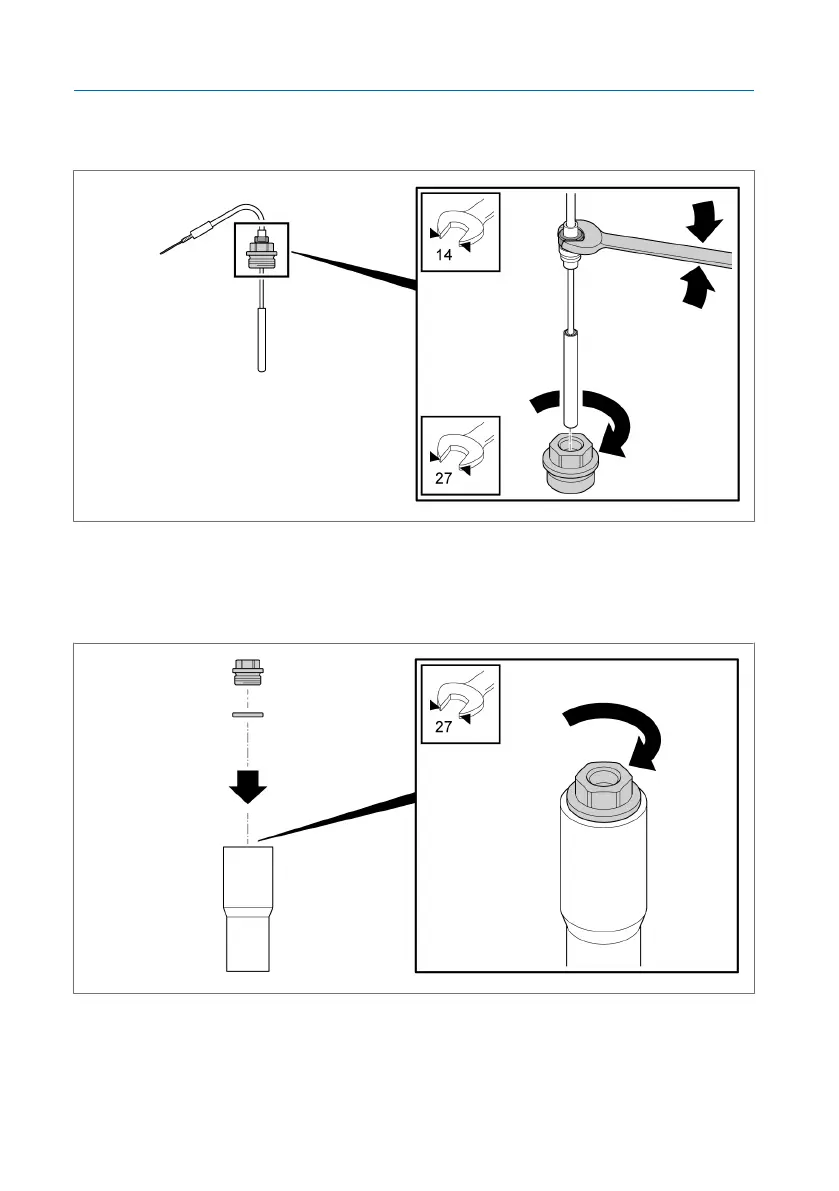

Unscrew the large screw connection of the temperature sensor from the
small screw connection.
Figure17: Unscrewing the large screw connection
3.
Insert the large screw connection into the transformer thermometer pocket
along with the gasket (gasket not included in the scope of delivery) and
secure it.
Figure18: Securing the large screw connection
37
39
Table of Contents
Table of Contents
3
Introduction
7
Manufacturer
7
Completeness
7
Safekeeping
7
Notation Conventions
7
Hazard Communication System
7
Information System
8
Instruction System
9
Typographic Conventions
9
Security
11
Appropriate Use
11
Fundamental Safety Instructions
12
Personal Protective Equipment
12
Security
16
Product Description
17
Scope of Delivery
17
Function Description
17
Design
19
Compact Standard Overview
19
Overview Compact RM
20
Cable Glands/Adapters
21
Ventilation
22
Overview Compact Temperature Sensor
22
Device Versions
23
Safety Markings
26
Nameplate
27
Packaging, Transport and Storage
28
Purpose
28
Suitability, Structure and Production
28
Markings
28
Transportation, Receipt and Handling of Shipments
28
Storage of Shipments
30
Further Transport
30
Transporting in the Installed State
32
Checking Measured Temperature Values
32
Mounting the Pointer Thermometer
33
Attaching the Pointer Thermometer to the Transformer
33
Securing the Capillary Line
37
Inserting the Temperature Sensor
37
Inserting the No. 7 RM Temperature Sensor
40
Attaching the Step Protection (Optional)
41
Electrical Connection
42
Preparation
43
Removing the Bayonet Seal Ring
46
Opening the Cover Plate
47
Cable Glands and Adapters
49
Connecting the Protective Conductor
59
Connecting the Interfaces (Optional)
62
Connecting the Micro-Switches
67
Connecting Cable Glands/Npt Adapters
74
Checking Micro-Switches
75
Micro-Switch to the Right of the Pointer
75
Micro-Switch to the Left of the Pointer
76
Setting Temperature Gradients (Winding Temperature)
78
Gradient Setting by Heating Current (W)
79
Gradient Setting by Resistance Value (WR)
83
Connecting the Current Transformer (Winding Temperature)
87
Configuring Modbus (Type TTM)
89
Closing the Cover Plate
90
Positioning the Bayonet Seal Ring
91
Operation
92
Resetting Drag Hands
92
Maintenance, Inspection and Care
93
Fault Elimination
94
General Malfunctions (Type TT)
95
General Malfunctions (Type TTM)
96
Ma Analog Signal Malfunctions (Type TT and Type TTM)
96
Modbus Communication Malfunctions (Type TTM)
97
Self-Diagnostic / Data Point DEVICE STATUS (Type TTM)
98
Disposal
100
SVHC Information in Accordance with the REACH Regulation
100
Technical Data
101
Ambient Conditions
101
Technical Data
102
Micro-Switches
103
Modbus RTU
106
Appendix
109
Compact Pointer Thermometer Dimensions
109
Compact RM Pointer Thermometer Dimensions
110
Temperature Sensor
111
Step Protection
112
Vibration-Damping Plate/Mounting Plate
113
Cable Gland Dimensions
114
Glossary
118
