6 Installation and commissioning
635831400/02 EN
3. Use ferrules for flexible lines (with a collar of max. 0.75mm²).

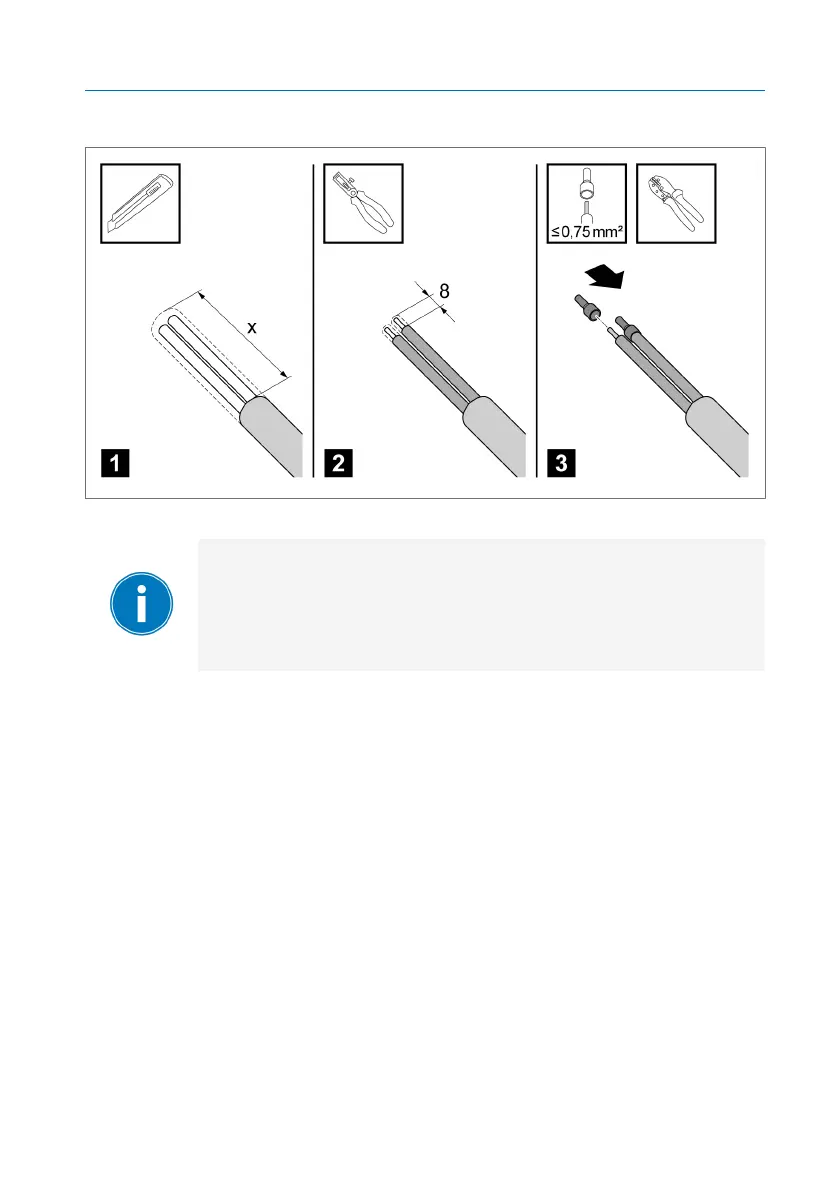

Figure45: Cable preparation for interfaces
You will need an actuating tool if wires have to be released
from the Push-in terminals used.
An actuating tool is not absolutely necessary for connecting
the wires. When using wires with sufficient buckling resis-
tance, direct plugging is possible without an actuating tool.
6.4.6.1 Passive 4…20mA analog output (type TT) connection
The pointer thermometer is equipped with a passive analog output that is-
sues the temperature value as an electrical 4…20mA signal.
Connecting the passive analog output in accordance with the
connection diagram
1. Press in the white actuator using the actuating tool (width 2.5mm).
2. Connect the wires to the terminals "4…20mA(+/-)". Do so by pushing the
wires through the opening up to the stop.
