6 Installation and commissioning
68 5831400/02 EN
WARNING
Electric shock
If a wire comes loose from a terminal, it is important to prevent
dangerous voltage and extra-low voltage from meeting.
► Secure wire bundles with a dangerous contact voltage with a cable tie.
► Also secure wire bundles with extra-low voltage with a cable tie.
6.4.7.1 Connection for micro-switches for oil temperature indicator
without plug and without interface
This section only applies for the basic MT-ST160SK Standard version with-
out the RM option and without interface (not for type TT or type TTM).
To connect the micro-switches, proceed as follows:
► Connect the wires to the terminal strip in accordance with the connec-
tion diagram.

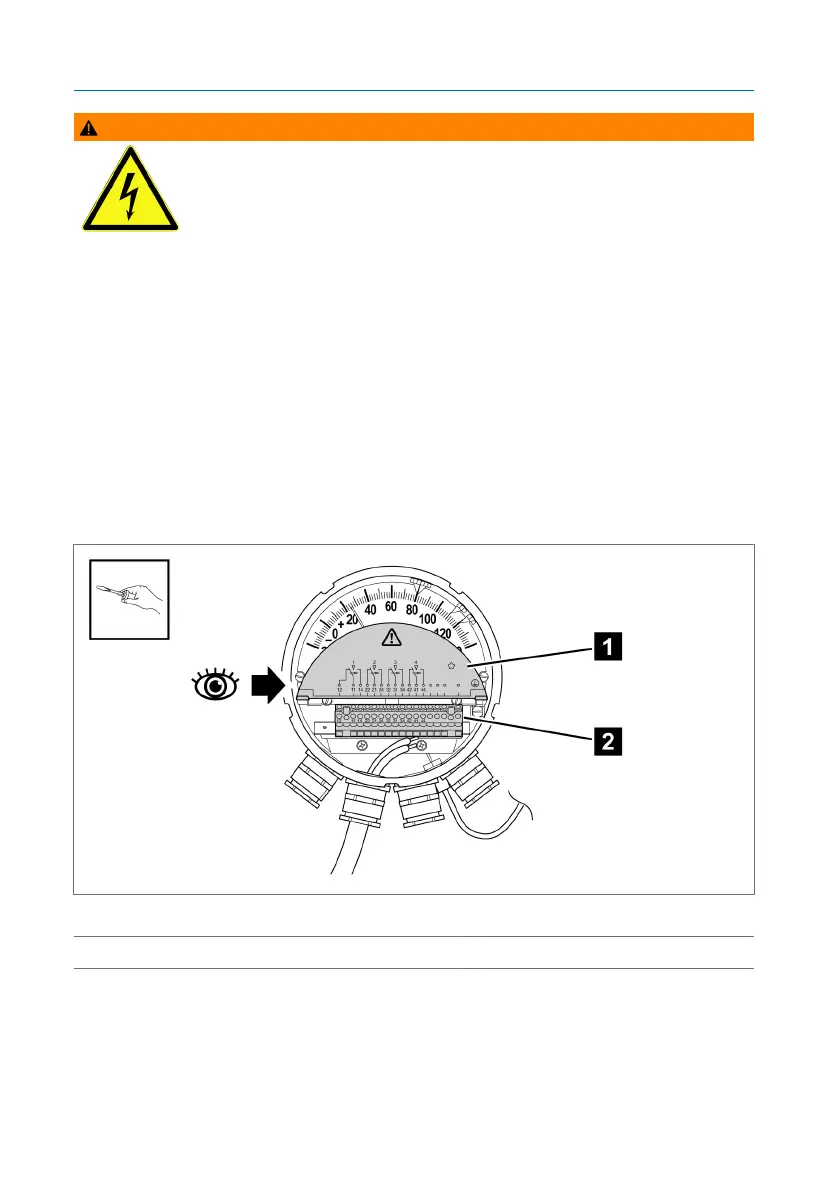

Figure51: Connecting the micro-switches
1 Connection diagram 2 Terminal strip
6.4.7.2 Connection for micro-switches for other device versions without
plug
This section applies for all oil temperature indicators with interface (type TT
and type TTM) and without plug connection (without RM option).
