Setting curve for the heating current
The heating current to be set is determined depending on the required tem-
perature gradient gr from the following setting curve:

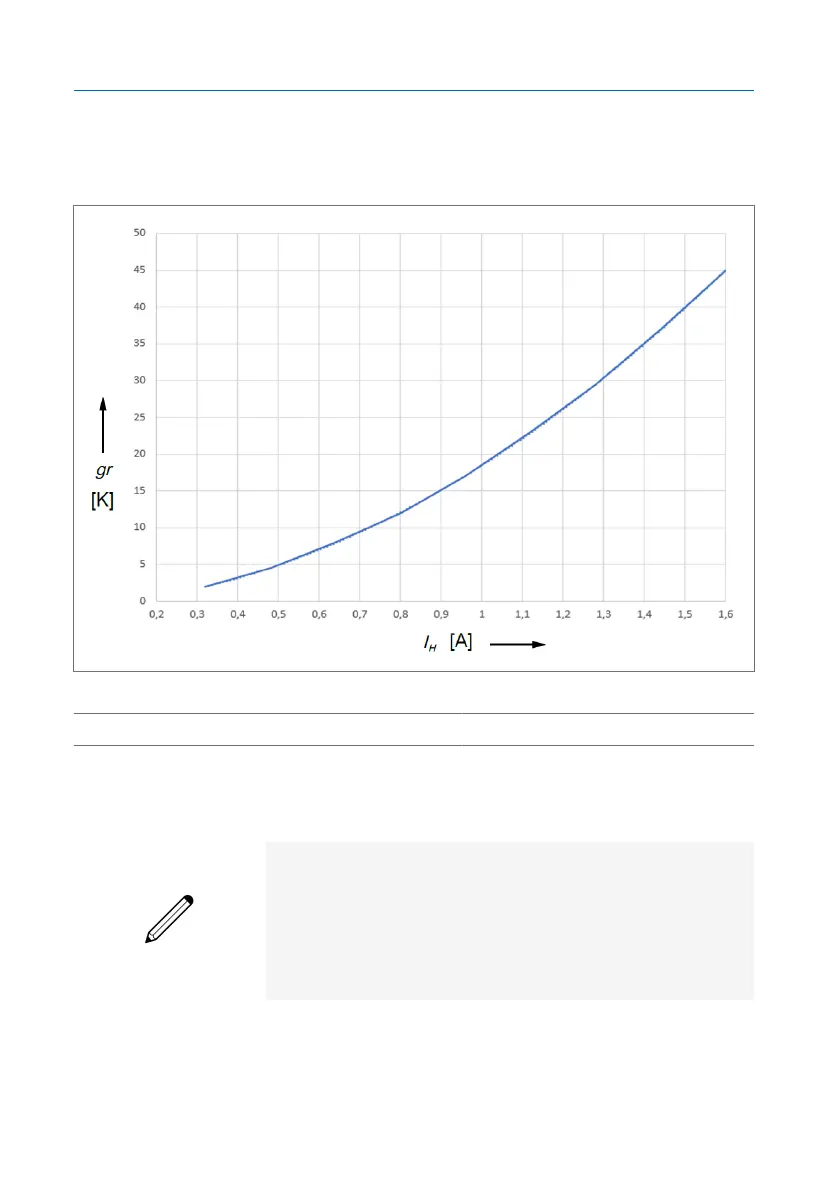

Figure61: Setting curve
gr Temperature gradient I
H
Heating current
Example:
Temperature read: 30°C
Required temperature gradient: 20K
Required display temperature: 30°C + 20K = 50°C
Nominal secondary transformer current: 2.0A
Heating current from setting curve: 1.05A
