3. Use the adjusting screw of the potentiometer to make an adjustment until
the numerical value of the measured voltage matches the desired value of
the heating current (1.05A in this example). Turning the adjusting screw
to the right causes the heating current to increase, and turning it to the left
causes it to decrease.

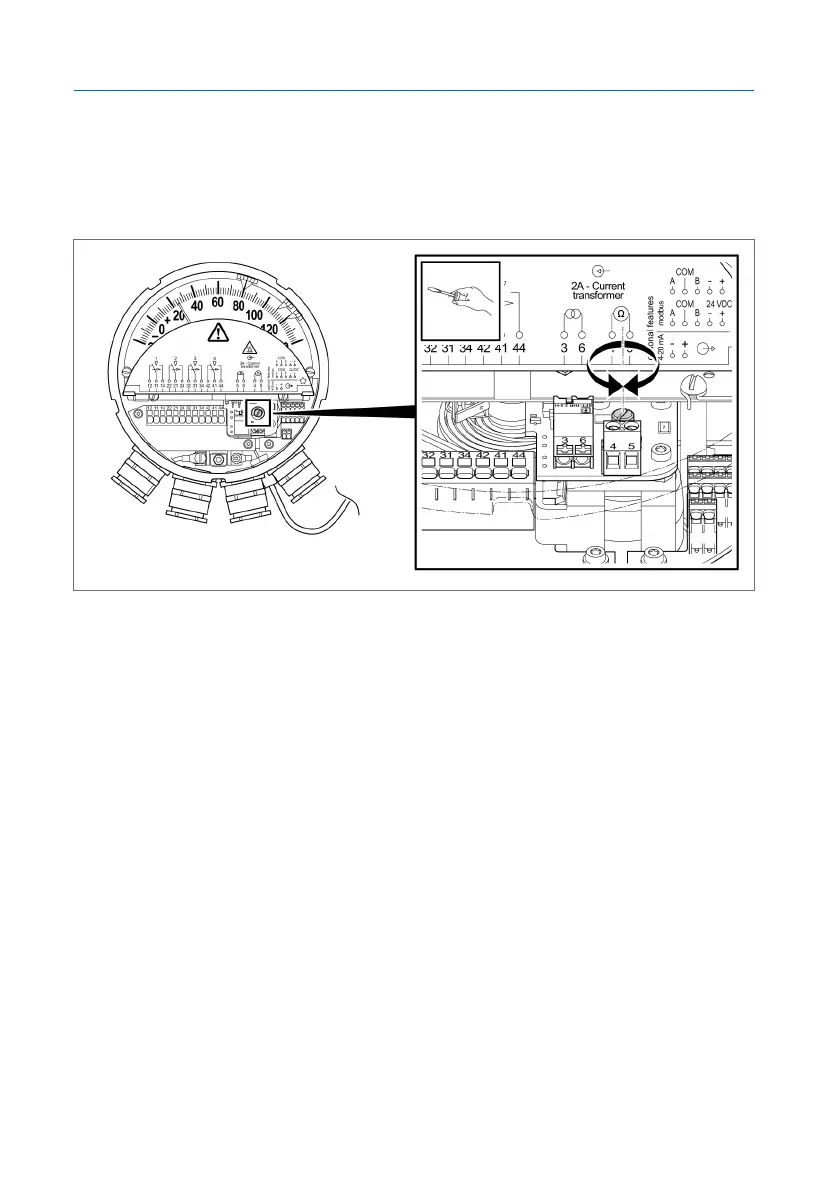

Figure63: Potentiometer setting
4. Check the required temperature increase: In this example, the tempera-
ture of the temperature sensor (30°C) should be increased by the temper-
ature gradient of 20K, thus resulting in 50°C being displayed. Take the
heating and cooling time of approx. 15minutes into account.
ð If the desired temperature value is not reached after approx. 30min-
utes, adjust the temperature gradient on the potentiometer again.
5. After setting the temperature gradient, remove the current source and
voltmeter.
