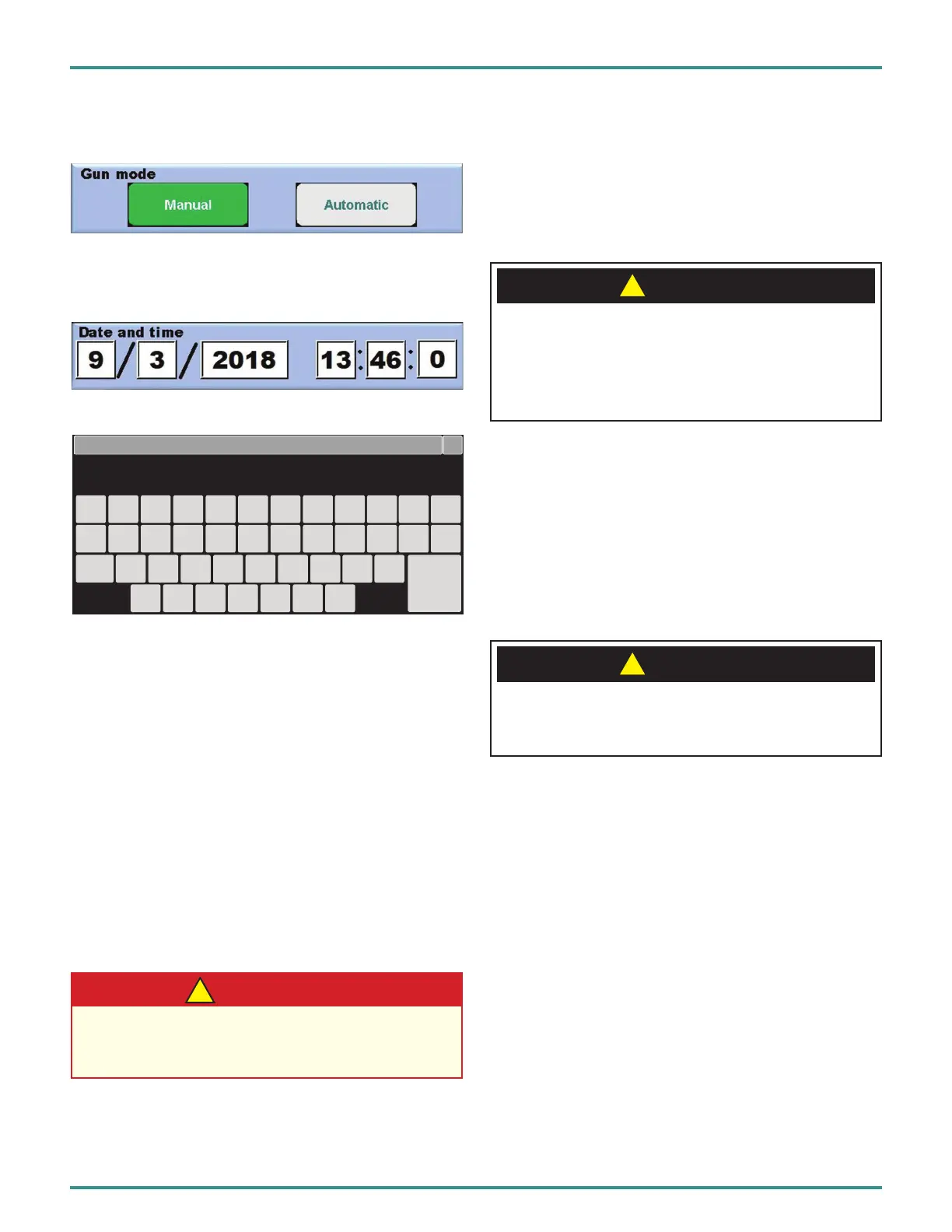

Setting Gun Operation Mode
Sets the type of gun operation mode.
Setting The Time And Date
Bypressingtheeld,akeyboardautomaticallypopsup.
ESC 1 2 3 4 5 6 7 8 9 0 DELESC 1 2 3 4 5 6 7 8 9 0 DEL
SPA Q W E R T Y U I O P CLR
CAP A S D F G H J K L
Enter
Z X C V B N M
X
GROUNDING
In order to achieve a good powder coating and for safety
reasons (see safety regulations), the powder coating
system must be properly grounded to true earth ground.
Good grounding of the workpiece is a prerequisite for
optimum powder coating. A poorly grounded workpiece
causes:
1. Verybadwrap-around,poorefciency
2. Uneven coating thickness
3. Back spray onto spray gun and user
4. Dangerous electric charging of the workpiece
Important:
1. Powder residues must regularly be cleaned off
of workpiece hangers
2. Connect the grounding cable to the control unit.
WARNING
!
 Sparks between workpiece and hangers
may arise if hooks or other hanger parts are not
completely cleaned!
Earth grounding must be used with >16mm2 copper
conductor connected to the chassis ground. The grounding
cable must have good metallic connection with the coating
enclosure, the recovery unit and the conveyor chain
respectively. The workpiece suspension system must be
connected to the true earth ground.
Electrical supply:
CAUTION
!
CAUTION
!
 All electrical supply lines must be equipped with a
grounding conductor and connected. Only power cords
with a ground wire are used.
 Thegroundingofallconductiveparts(forexam-
ple, hooks, chain conveyors, etc.) must be checked
at least weekly.
 TheResistancetoearthmustbe<1MΩ(MegaOhm).
