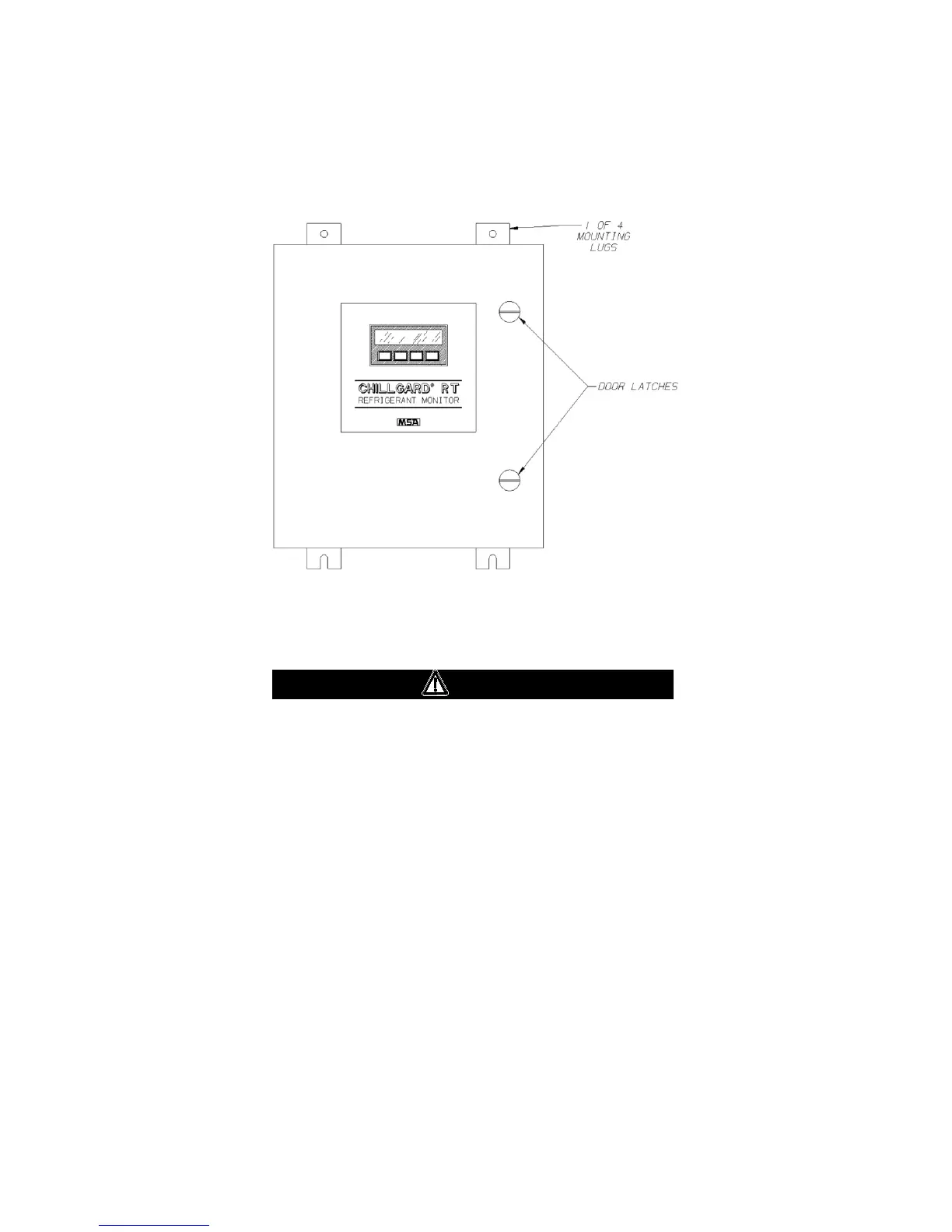

gure 2-1. Front Door Latches
Location of the Monitor
WARNING
This unit must not be located in areas that may contain a
flammable mixture of gas and air; otherwise, an explosion
may occur.
The monitor performance is dependent on its location and sensing pick-
up location(s). Follow the guidelines listed below before mounting the
monitor.
Instrument Location Guidelines
1.
Select a location where personnel will see the front panel or the
opt
ional beacon before they enter the equipment room or the area
where the monitoring point is located.
2.
Mount the unit vertically; do not mount the unit to structures subject
to vibration and shock, such as piping and piping supports.
3.
Do not locate the unit near an excessive heat source or in wet and
dam
p locations.
