B-3
Specifications
Table B-1. Specifications
TEMPERATURE OPERATING 0 to 50°C
RANGE
STO
RAGE -20 to 60°C
POWER 85 - 264 Volts @ 40 Watts max.
MAXIMUM 30 seconds
WARM-UP TIME
HUMIDITY 0 to 99% RH non-condensing
SYSTEM
COMMUNICATION RS-485
RELAYS
COMMON TROUBLE
AND HORN RELAY
10 Amps @ 125, 250 VAC
10 Amps @ 30 VDC
CAUTION, WA
RNING
AND ALARM RELAYS
4 Amps, 1/20 H.P. @ 125, 250 VAC
3 Amps @ 30 VDC
T
ERMINAL BLOCK can accept up to 12 AWG wire
HORN 80 db (2 feet [61 cm] at ambient
temperature and pressures)
DIMENSIONS 12.5" wide x 6.5" deep x 15" high
(31.8 cm wide x 16.5 cm deep
x 38.1 cm high)
WEIGHT
Approximately 25 lbs. (12 kg)

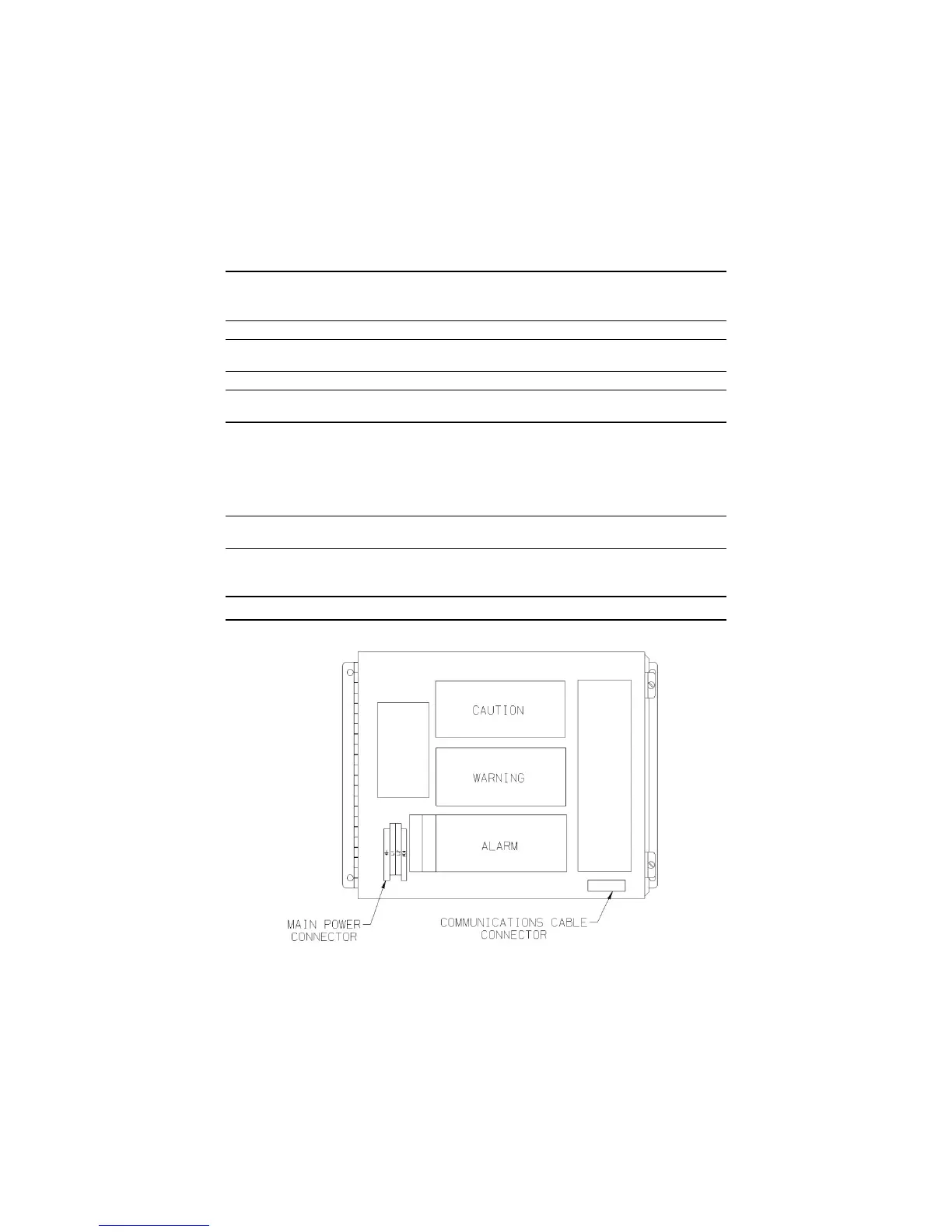

Figure B-3. Relay Module Main Power Connector and
Communication Cable Connector Locations
