The voltage output can be programmed to correspond to the channel
presently being sampled. The front-panel screen shows:
1V/PT IF OUT = 1-10V
(indicating one volt per point if output equals one to 8 volts).
When enabled, and the unit is monitoring from:
• channel 1:
the voltage output is one volt
• channel 2:
the voltage output changes to two volts.
RS 232 Output
• See Appendix C for wiring information.

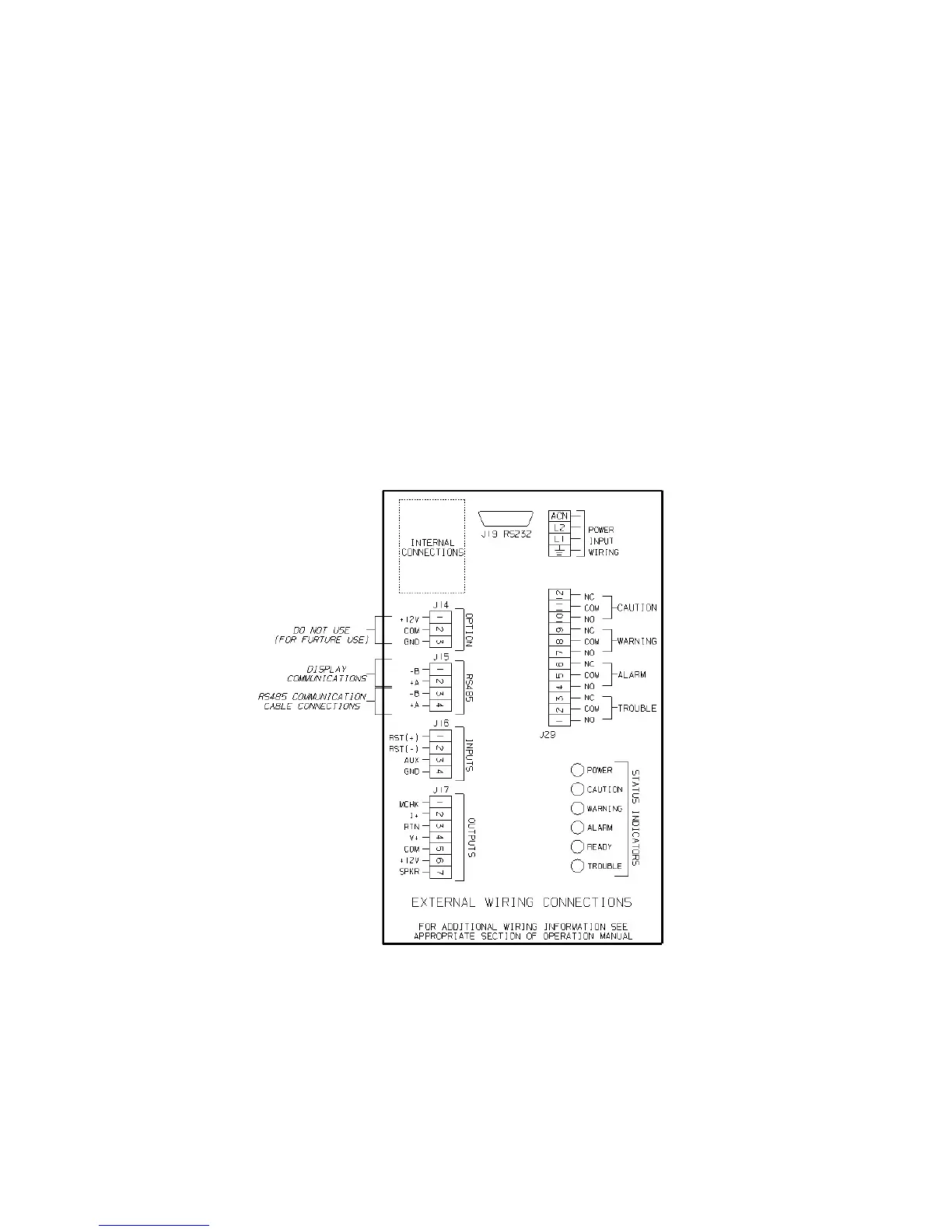

Figure 2-5. Wiring Connections
