MSA
Installation
PrimaX
16
GB
PrimaX P
(1) Unscrew the interlock between cover and bayonet joint of sensor.
(2) Unscrew the aluminium lid of the enclosure.
(3) Unplug the 4-way terminal block.
It is located behind a plastic cover above the display.
(4) Unscrew clamping nut at the cable gland.
(5) Put clamping nut on the cable
(6) Insert cable for connection into the device.
(7) Connect cable to terminal.
Use a shielded cable with 3 wires for the 3-wire sensor
Use a shielded cable with 4 wires for the 4-wire sensor
(8) Tighten cable gland clamping nut, check that cable cannot move within the ca-
ble gland.
(9) Replace enclosure lid and secure the interlock.

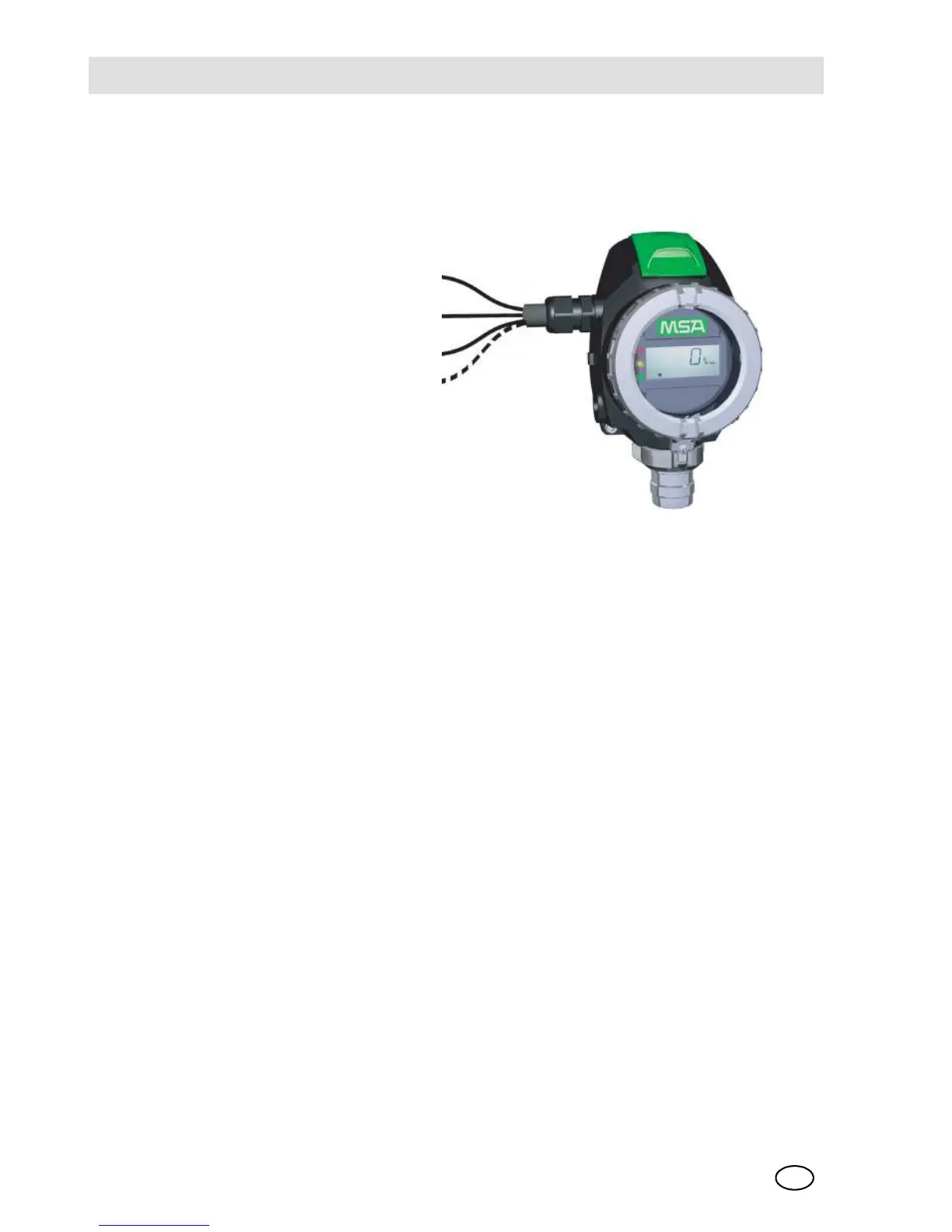

Fig. 5 3-wire/4-wire connection - PrimaX P
Power supply [+] 24 V DC
0 V DC [-]
4–20mA[Signal]
isolated ground
