InstallationMSA
PrimaX
GB
17

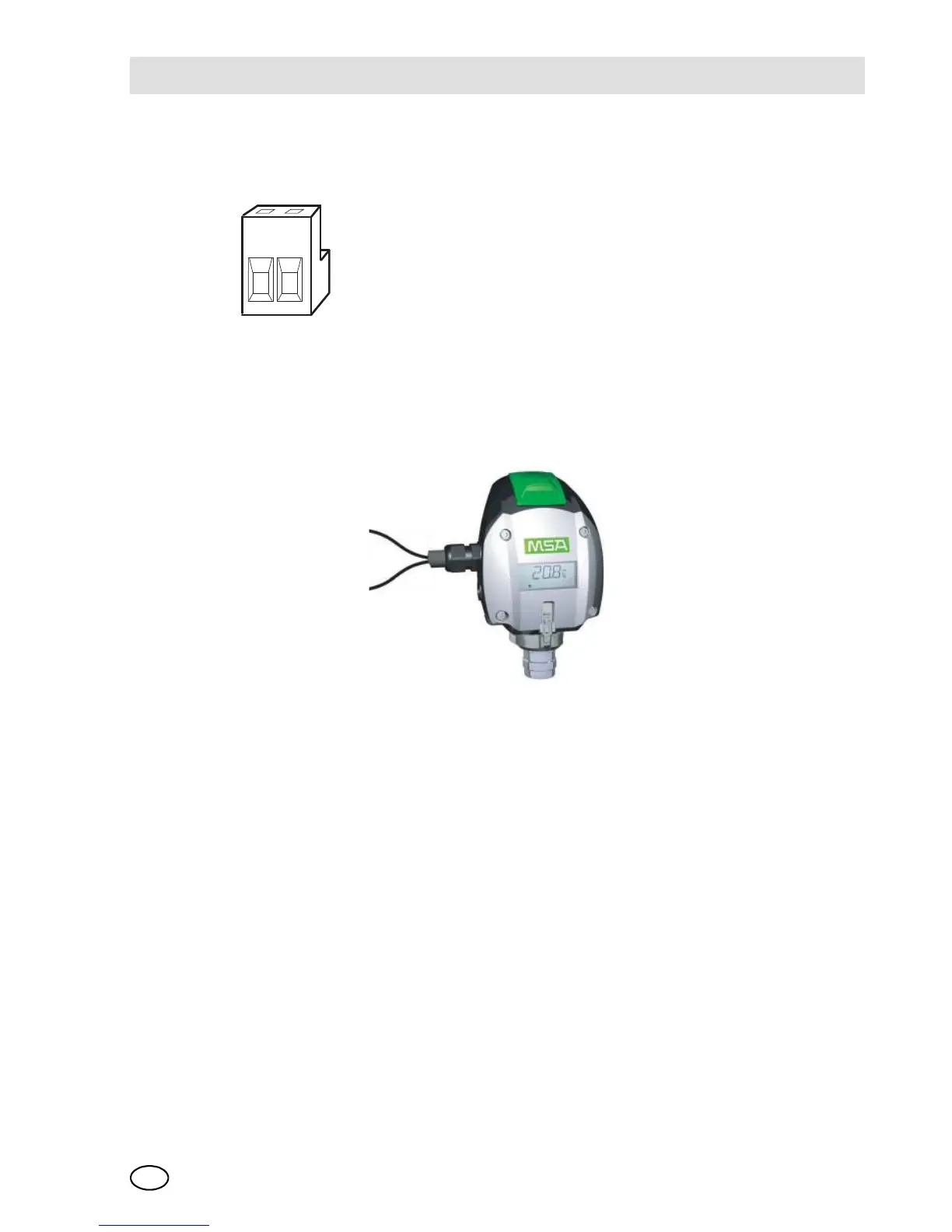

Electrical Connection - PrimaX I
Terminal PrimaX I
Fig. 6 Terminal PrimaX I
PrimaX I
(1) Remove plastic cover.
It is bolted with 4 screws.
(2) Remove the 2-way terminal block.
It is located behind a plastic cover above the display.
(3) Unscrew clamping nut at the cable gland.
(4) Put clamping nut on the cable
(5) Insert cable for connection into the device.
(6) Connect cable to terminal.
Use a 2-wire shielded cable.
(7) Tighten cable gland clamping nut, check that cable cannot move within the ca-
ble gland.
(8) Replace plastic cover, tighten the screws and secure the interlock.
1 Power supply [+], 24 V DC
2 4 20 mA [Signal]
Fig. 7 2-wire connection - PrimaX I
Power supply [+]
4–20mA[Signal]
1 2
