Operation

PrimaX

Relays

Relay nominal switching capacity [resistive load]:

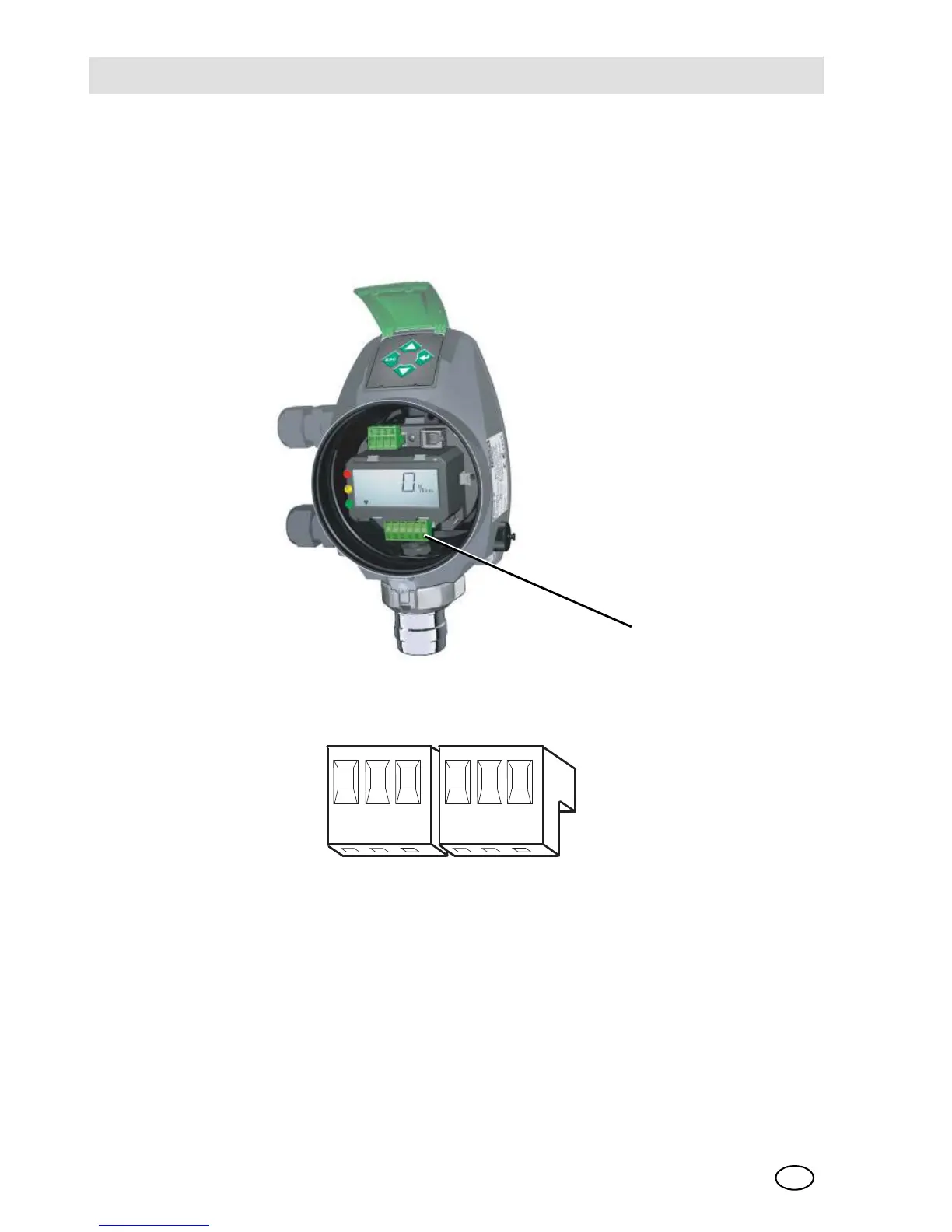

Fig. 11 Location of Relay

Fig. 12 Relay Terminals

Alarm Relay 2A / 30V DC

Failure Relay 2A / 30V DC

1 Relay Terminals

Alarm Relay Failure Relay

1 Normally closed energised[NC] 1 Normally closed energised[NC]

2 Common [COM] 2 Common [COM]

3 Normally open energised[NO] 3 Normally open energised[NO]

132

ALARM FAILURE
