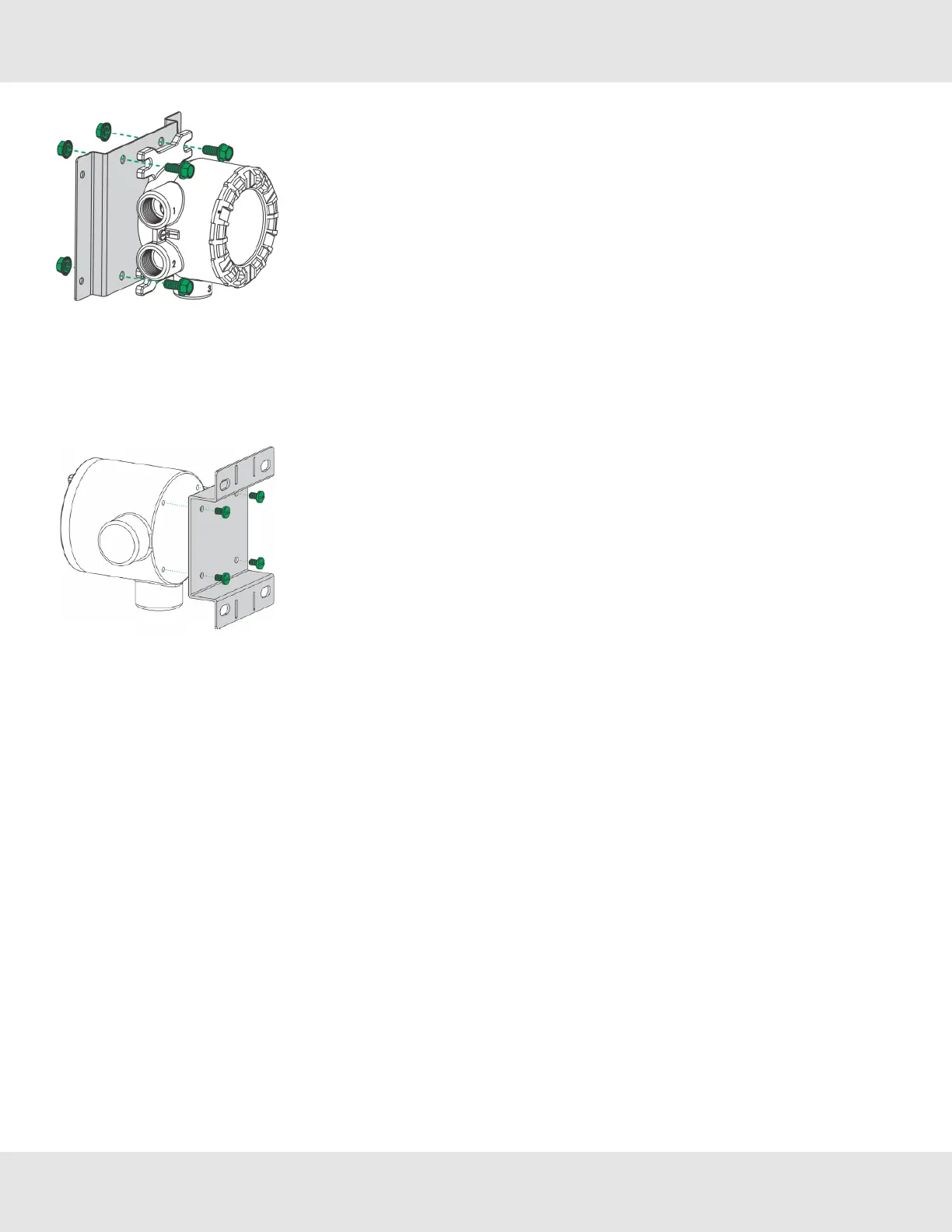

Figure 15 Mounting Bracket for ULTIMA X5000 (compatible with ULTIMA XIR PLUS Sensors)
3.4.6 MountingPointsJB5000JunctionBox
TheJB5000junctionboxcanbemounteddirectlyusingthe4integrated10-32threadedholesonthebackoftheenclosure
orwiththeuseofamountingbracket(P/N10206570).
Figure 16 JB5000 Bracket Attachment
