MSI 865PE NEO2-LS - Motherboard - ATX User Manual

Using 2-, 4- or 6-Channel Audio Function
A-21

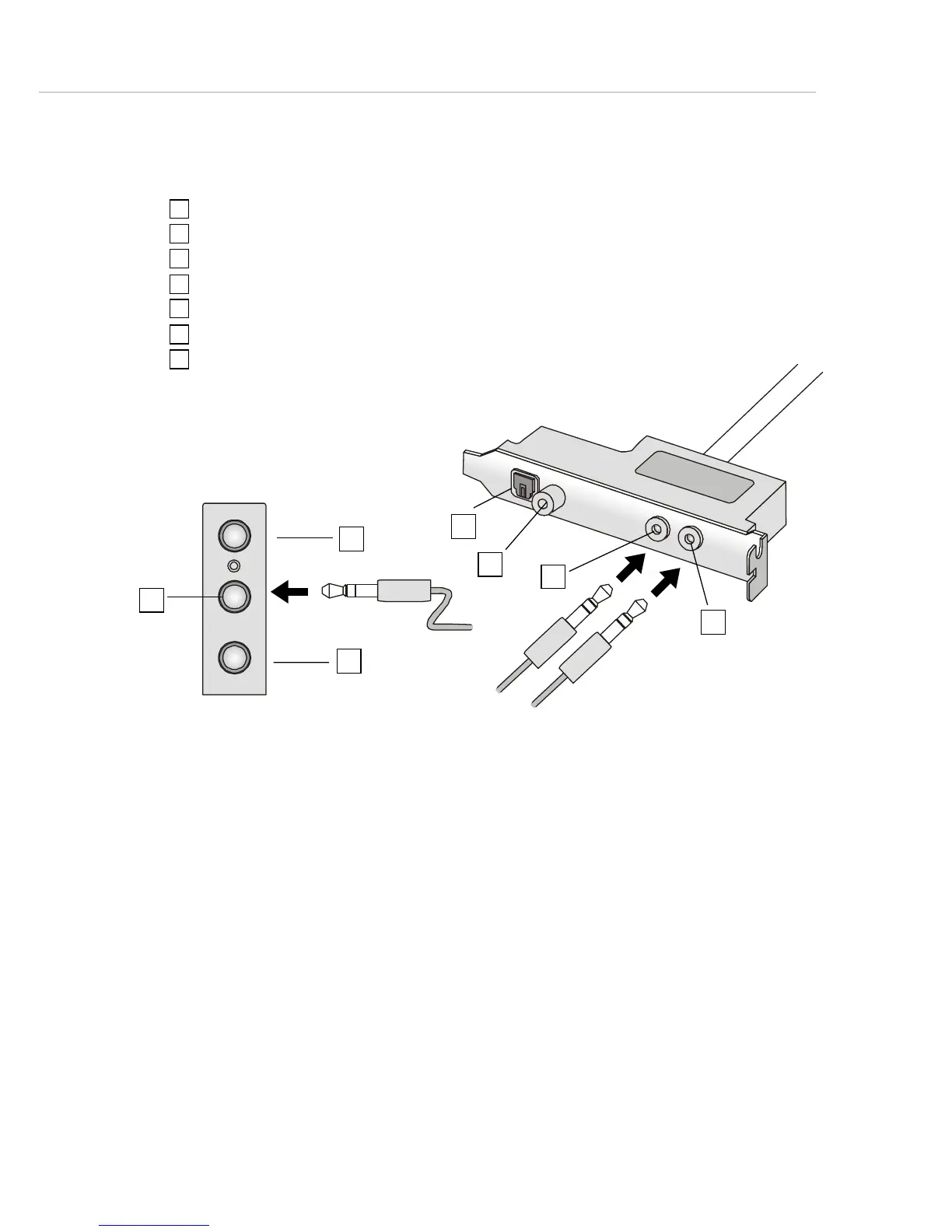

6-Channel Analog Audio Output
Description:
Connect two speakers to back panel’s Line Out
connector and four speakers to both Line Out
connectors of S-Bracket.
1 MIC
2 Line Out (Front channels)
3 Line In
4 Optical SPDIF jack
5 Coaxial SPDIF jack
6 Line Out (Center and Subwoofer channel)
7 Line Out (Rear channels)
S-Bracket
1
2
3
Back Panel
6
7
4
5

MSI 865PE NEO2-LS - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel 865PE
Socket	Socket 478
Memory Type	DDR SDRAM
Maximum RAM	4 GB
Supported RAM Speed	DDR 400/333/266
Expansion Slots	1 x AGP 8X, 5 x PCI
Integrated LAN	Yes
LAN Controller	Realtek RTL8100C
Audio Codec	Realtek ALC655
Audio Output	6-channel
Compatible Processors	Intel Pentium 4, Celeron
Memory Slots	4 x DIMM
Storage Interfaces	2 x ATA100, 2 x SATA 1.5Gb/s
LAN Ports	1 x RJ-45
USB Ports	8 x USB 2.0
