MS-6728 ATX Mainboard

BATT

Serial ATA /Serial ATA RAID Connectors controlled by Promise

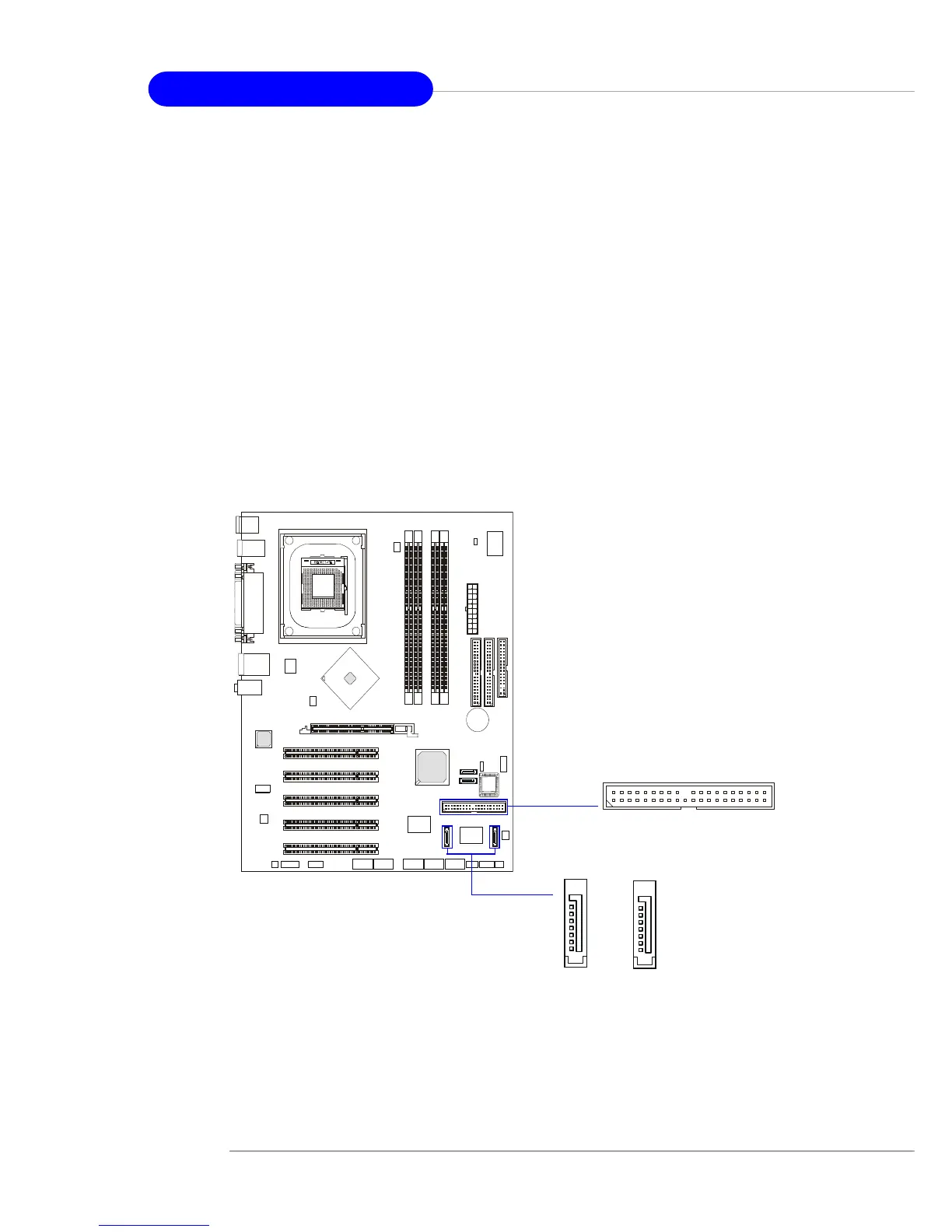

20378: IDE3, SATA3 & SATA4 (Optional)

The brand new Promise 20378 chipset supports one IDE connector IDE3

and two serial connectors SATA1& SATA2.

IDE3 is a 32-bit Enhanced PCI IDE and Ultra DMA 66/100/133 controller

that provides PIO mode 0~6, Bus Master, and Ultra DMA 66/100/133 function.

You can connect up to 2 hard disk drives---one IDE master and one IDE slave.

And STAT3 & SATA4 are dual high-speed Serial ATA interface ports.

Each supports 1

generation serial ATA data rates of 150 MB/s. Both connectors

are fully compliant with Serial ATA 1.0 specifications. Each Serial ATA connector

can connect to 1 hard disk device. Please refer to Serial ATA/Serial ATA Raid

manual for detail software installation procedure.

SATA3

IDE3

SATA4
