MSI 865PE NEO2-LS - Motherboard - ATX User Manual

2-24
MS-6728 ATX Mainboard
BATT
+

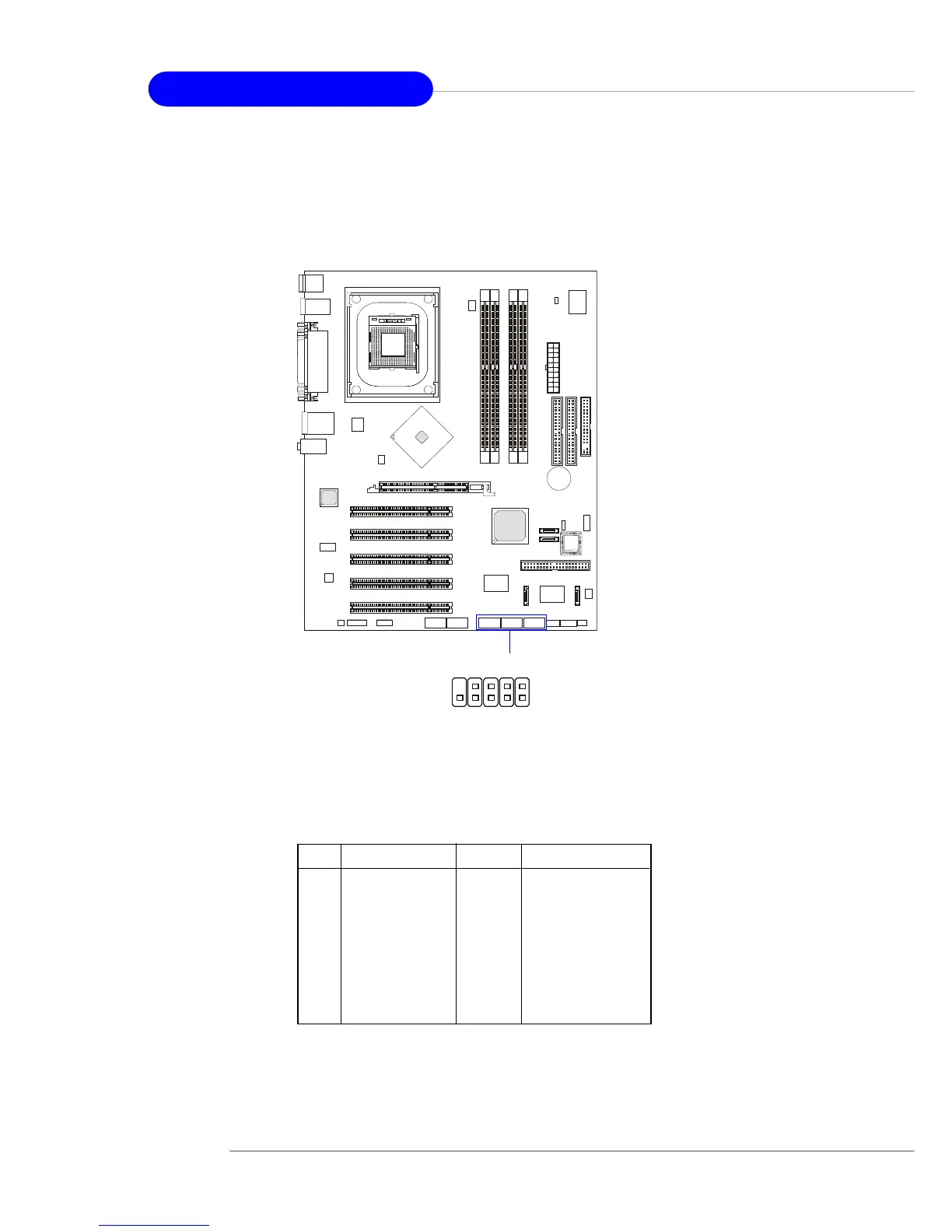

IEEE 1394 Connectors: J1394_1, J1394_2, J1394_3 (Optional)
The mainboard provides three 1394 pin headers that allow you to con-
nect optional IEEE 1394 ports.
J1394_1, J1394_2, J1394_3
(from left to right)
J1394 Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
9
2
10
1

MSI 865PE NEO2-LS - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel 865PE
Socket	Socket 478
Memory Type	DDR SDRAM
Maximum RAM	4 GB
Supported RAM Speed	DDR 400/333/266
Expansion Slots	1 x AGP 8X, 5 x PCI
Integrated LAN	Yes
LAN Controller	Realtek RTL8100C
Audio Codec	Realtek ALC655
Audio Output	6-channel
Compatible Processors	Intel Pentium 4, Celeron
Memory Slots	4 x DIMM
Storage Interfaces	2 x ATA100, 2 x SATA 1.5Gb/s
LAN Ports	1 x RJ-45
USB Ports	8 x USB 2.0
