MSI 865PE NEO2-LS - Motherboard - ATX User Manual

2-2
MS-6728 ATX Mainboard
BATT
+

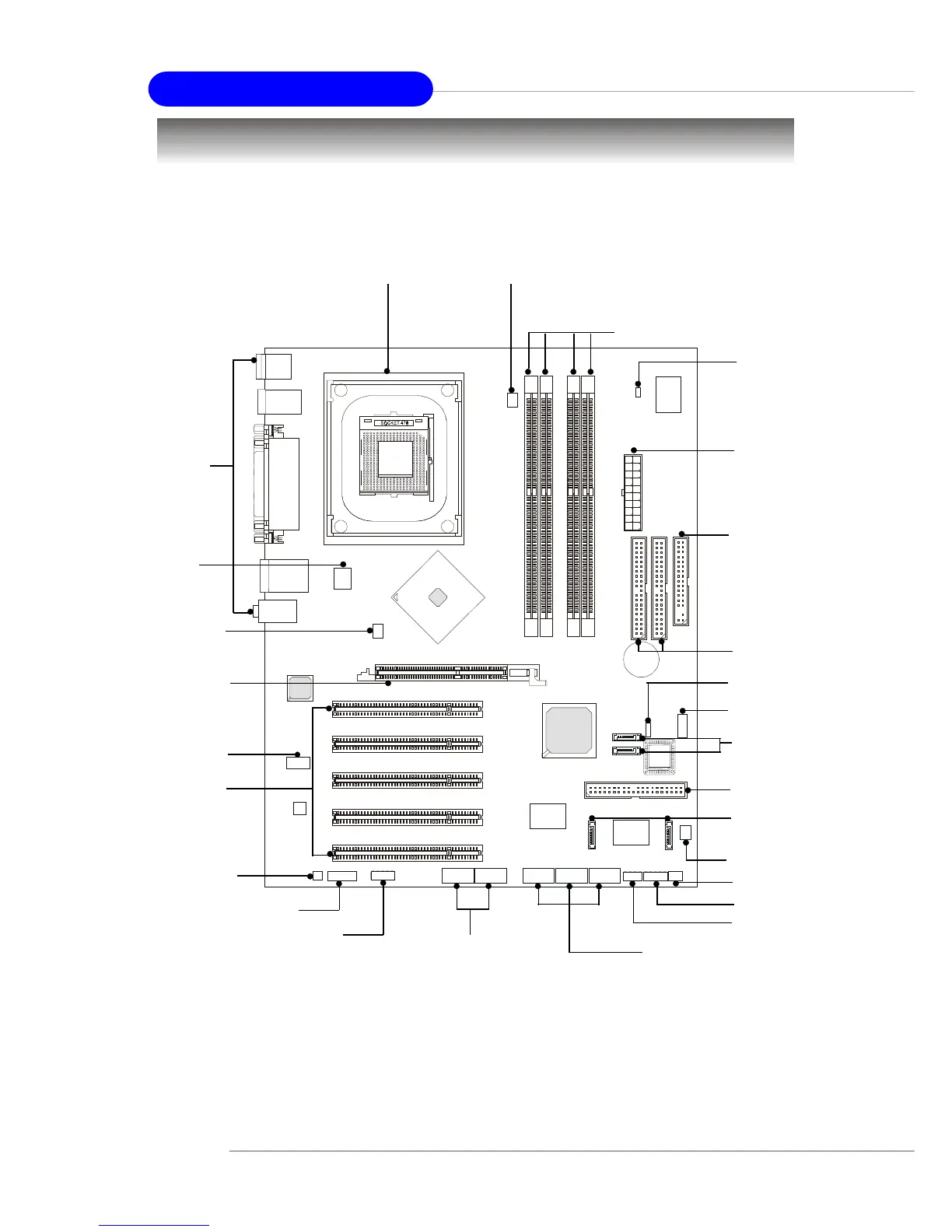

Quick Components Guide
DDR DIMMs, p.2-7
CPU, p.2-3
Back Panel
I/O, p.2-10
FDD1, p.2-16
NBFAN1, p.2-17
IDE3, p.2-20
JUSB1, JUSB2,
p.2-28
J1394_1, J1394_2,
J1394_3, p.2-24
JAUD1, p.2-27
JFP1, p.2-26
AGP Slot, p.2-33
PCI Slots, p.2-33
IDE1, IDE2, p.2-18
JIR1, p.2-30
JSP1, p.2-22
SATA1, SATA2,
p.2-19
ATX1, p.2-9
JBAT1, p.2-31
CPUFAN1, p.2-17
JCD1, p.2-22
JCI1, p.2-30
JDB1, p.2-29
SATA3, SATA4,
p.2-20
JFP2, p.2-26
SFAN1, p.2-17
JS1, p.2-32
JPW1, p.2-9

MSI 865PE NEO2-LS - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel 865PE
Socket	Socket 478
Memory Type	DDR SDRAM
Maximum RAM	4 GB
Supported RAM Speed	DDR 400/333/266
Expansion Slots	1 x AGP 8X, 5 x PCI
Integrated LAN	Yes
LAN Controller	Realtek RTL8100C
Audio Codec	Realtek ALC655
Audio Output	6-channel
Compatible Processors	Intel Pentium 4, Celeron
Memory Slots	4 x DIMM
Storage Interfaces	2 x ATA100, 2 x SATA 1.5Gb/s
LAN Ports	1 x RJ-45
USB Ports	8 x USB 2.0
