Hardware Setup

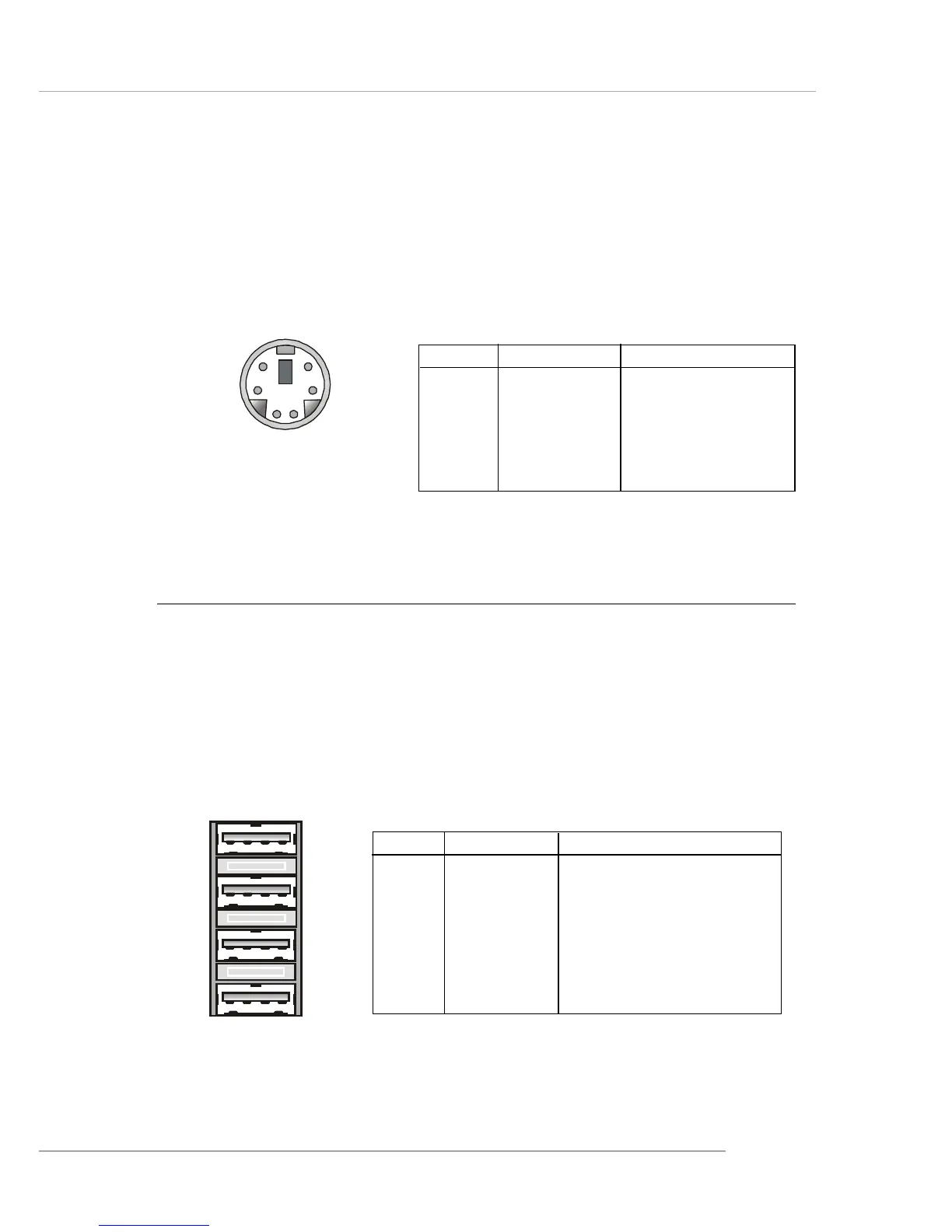

Keyboard Connector

The mainboard provides a standard PS/2

keyboard mini DIN connec-

tor for attaching a PS/2

keyboard. You can plug a PS/2

keyboard directly

into this connector.

PIN SIGNAL DESCRIPTION

1 Keyboard DATA Keyboard DATA

2 NC No connection

3 GND Ground

4 VCC +5V

5 Keyboard Clock Keyboard clock

6 NC No connection

Pin Definition

PS/2 Keyboard (6-pin Female)

USB Connectors

The mainboard provides a UHCI (Universal Host Controller Interface)

Universal Serial Bus root for attaching USB devices such as keyboard, mouse

or other USB-compatible devices. You can plug the USB device directly into

the connector.

PIN SIGNAL DESCRIPTION

1 VCC +5V

2 -Data 0 Negative Data Channel 0

3 +Data0 Positive Data Channel 0

4 GND Ground

5 VCC +5V

6 -Data 1 Negative Data Channel 1

7 +Data 1 Positive Data Channel 1

8 GND Ground

USB Port Description

USB Ports

1 2 3 4

5 6 7 8
