1-10

MS-6728 ATX Mainboard

Red

Green

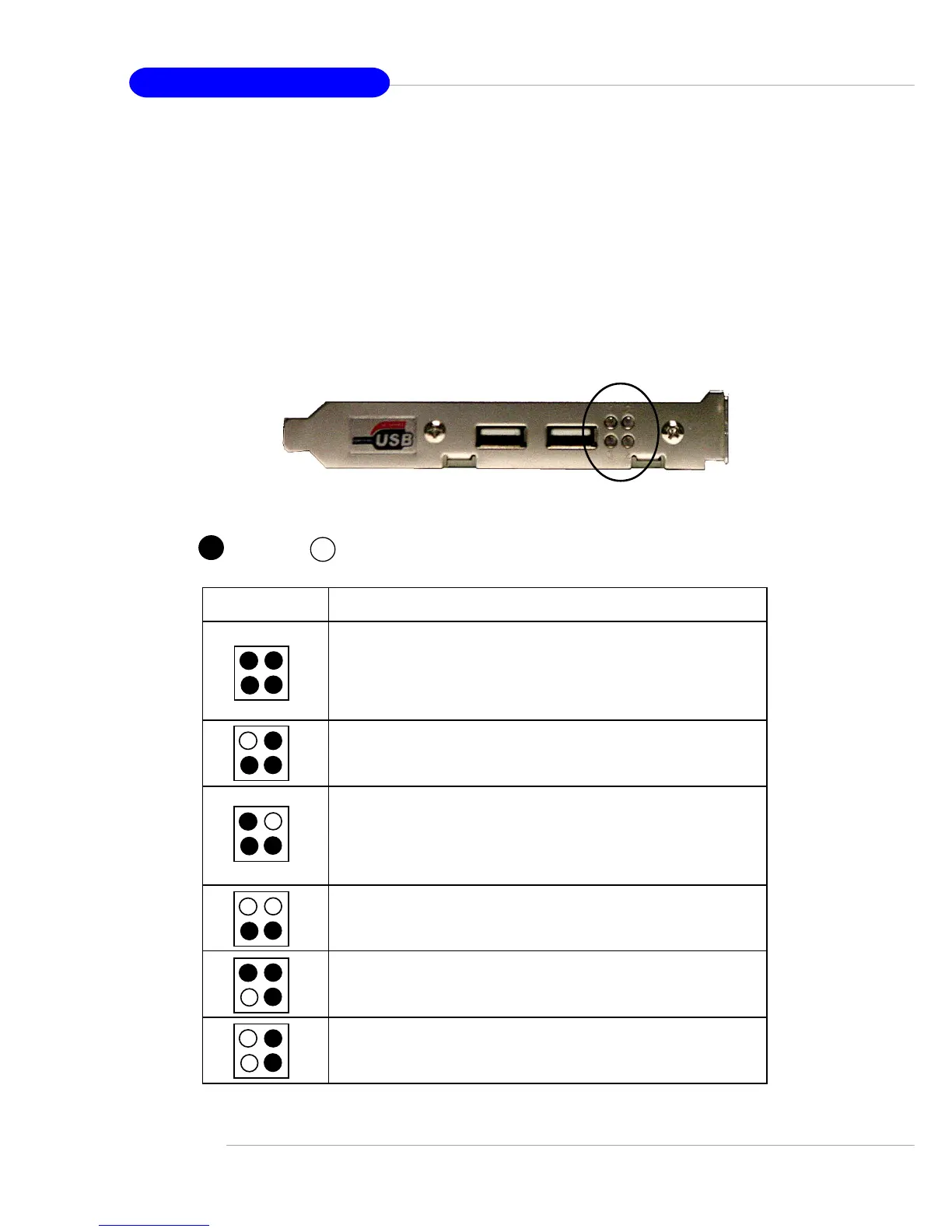

D-Bracket™ 2 (Optional)

D-Bracket™ 2 is a USB bracket integrating four Diagnostic LEDs, which

use graphic signal display to help users understand their system. The LEDs

provide up to 16 combinations of signals to debug the system. The 4 LEDs can

detect all problems that fail the system, such as VGA, RAM or other failures.

This special feature is very useful for overclocking users. These users can use

the feature to detect if there are any problems or failures. D-Bracket™ 2 supports

both USB 1.1 & 2.0 spec.

D-Bracket™ 2 Description

System Power ON

- The D-LED will hang here if the processor is damaged or

not installed properly.

Early Chipset Initialization

Memory Detection Test

- Testing onboard memory size. The D-LED will hang if the

memory module is damaged or not installed properly.

Decompressing BIOS image to RAM for fast booting.

Initializing Keyboard Controller.

Testing VGA BIOS

- This will start writing VGA sign-on message to the screen.

D-Bracket™ 2

1 2

3 4
