2-29

Hardware Setup

BATT

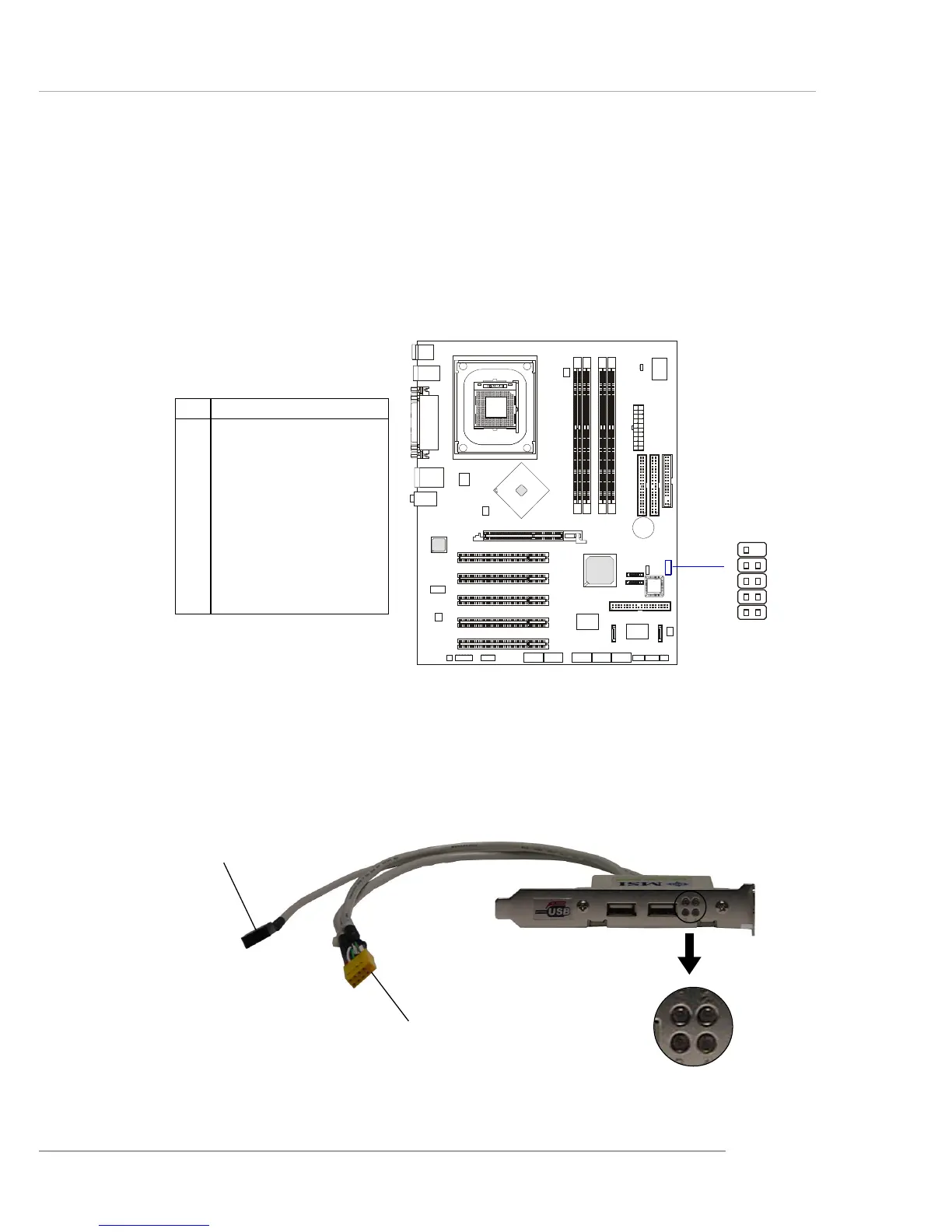

D-Bracket™ 2 Connector: JDB1 (Optional)

The mainboard comes with a JDB1 connector for you to connect to D-

Bracket™ 2. D-Bracket™ 2 is a USB Bracket that supports both USB1.1 & 2.

0 spec. It integrates four LEDs and allows users to identify system problem

through 16 various combinations of LED signals. For definitions of 16 signal

combinations, please refer to D-Bracket™ 2 at P.1-10 in Chapter 1.

Pin Signal

1 DBG1 (high for green color)

2 DBR1 (high for red color)

3 DBG2 (high for green color)

4 DBR2 (high for red color)

5 DBG3 (high for green color)

6 DBR3 (high for red color)

7 DBG4 (high for green color)

8 DBR4 (high for red color)

9 Key (no pin)

10 NC

JDB1 Pin Definition

JDB1

Connected to JUSB1

Connected to JDB1

LEDs
