2-15

Hardware Setup

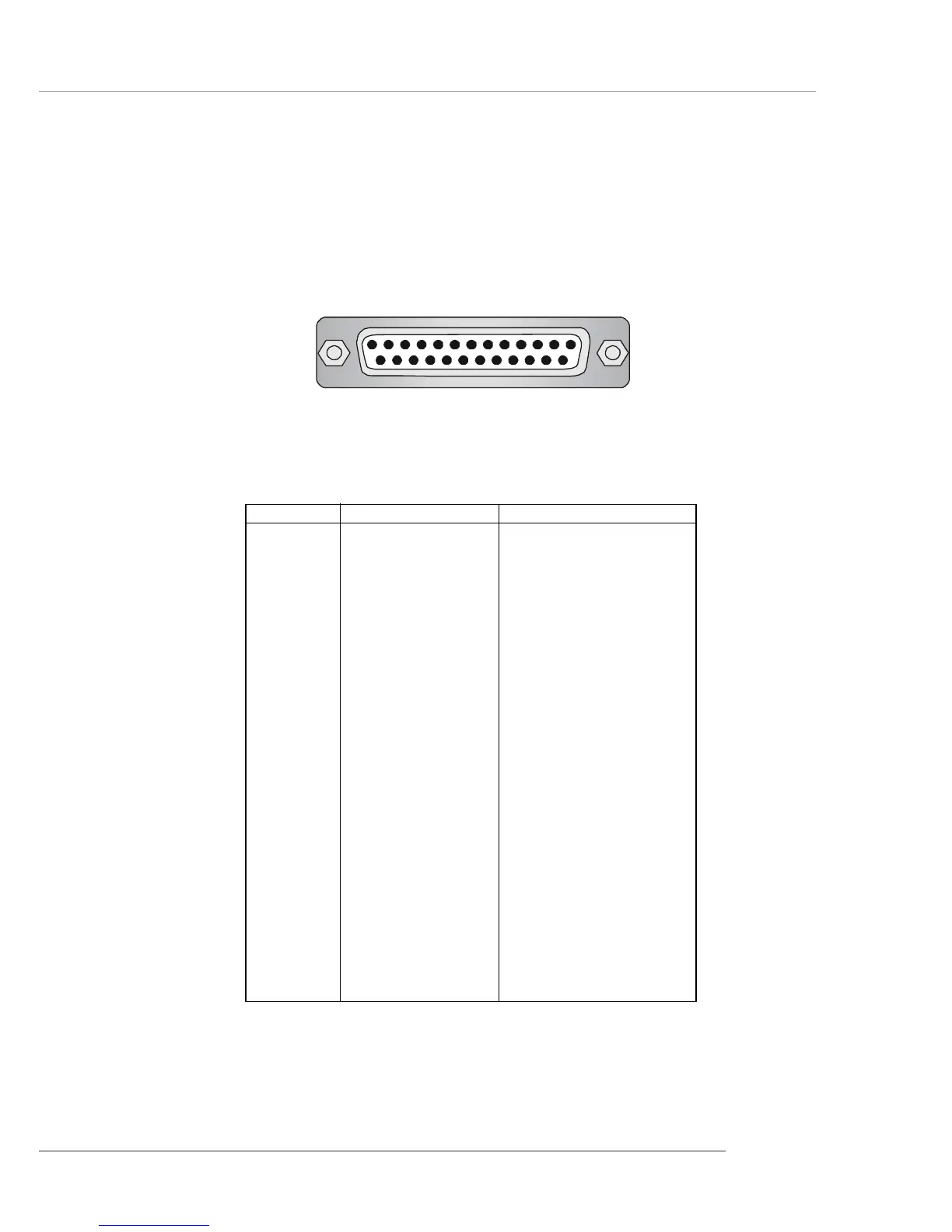

Parallel Port Connector: LPT1

The mainboard provides a 25-pin female centronic connector as LPT.

A parallel port is a standard printer port that supports Enhanced Parallel Port

(EPP) and Extended Capabilities Parallel Port (ECP) mode.

13 1

PIN SIGNAL DESCRIPTION

1 STROBE Strobe

2 DATA0 Data0

3 DATA1 Data1

4 DATA2 Data2

5 DATA3 Data3

6 DATA4 Data4

7 DATA5 Data5

8 DATA6 Data6

9 DATA7 Data7

10 ACK# Acknowledge

11 BUSY Busy

12 PE Paper End

13 SELECT Select

14 AUTO FEED# Automatic Feed

15 ERR# Error

16 INIT# Initialize Printer

17 SLIN# Select In

18 GND Ground

19 GND Ground

20 GND Ground

21 GND Ground

22 GND Ground

23 GND Ground

24 GND Ground

25 GND Ground

Pin Definition
