MS-6728 ATX Mainboard

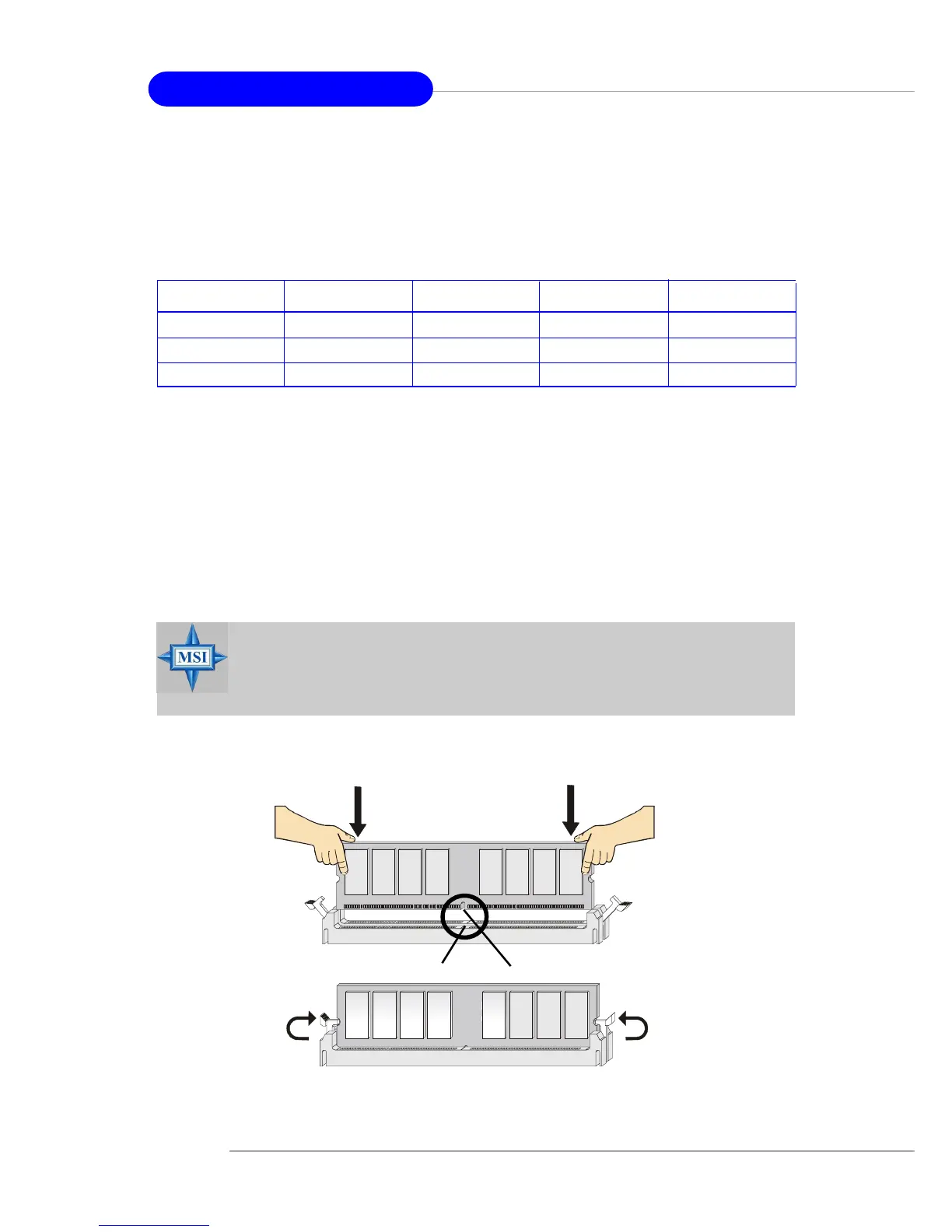

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module

will only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in until the golden finger on the memory module is deeply inserted

in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

MSI Reminds You...

You can barely see the golden finger if the module is properly

inserted in the socket.

Volt

Notch

DIMM1 (Ch A) DIMM2 (Ch A) DIMM3 (Ch B) DIMM4 (Ch B) System Density

128MB~1GB 128MB~1GB 256MB~2GB

128MB~1GB 128MB~1GB 128MB~1GB 128MB~1GB 512MB~4GB

channelDDR DIMMs. However, the same type and density memory modules

are necessary while using dual-channel DDR, or instability may happen.

Please refer to the following table for detailed dual-channel DDR. Other

combination not listed below will function as single-channel DDR.
