2-28

MS-6728 ATX Mainboard

BATT

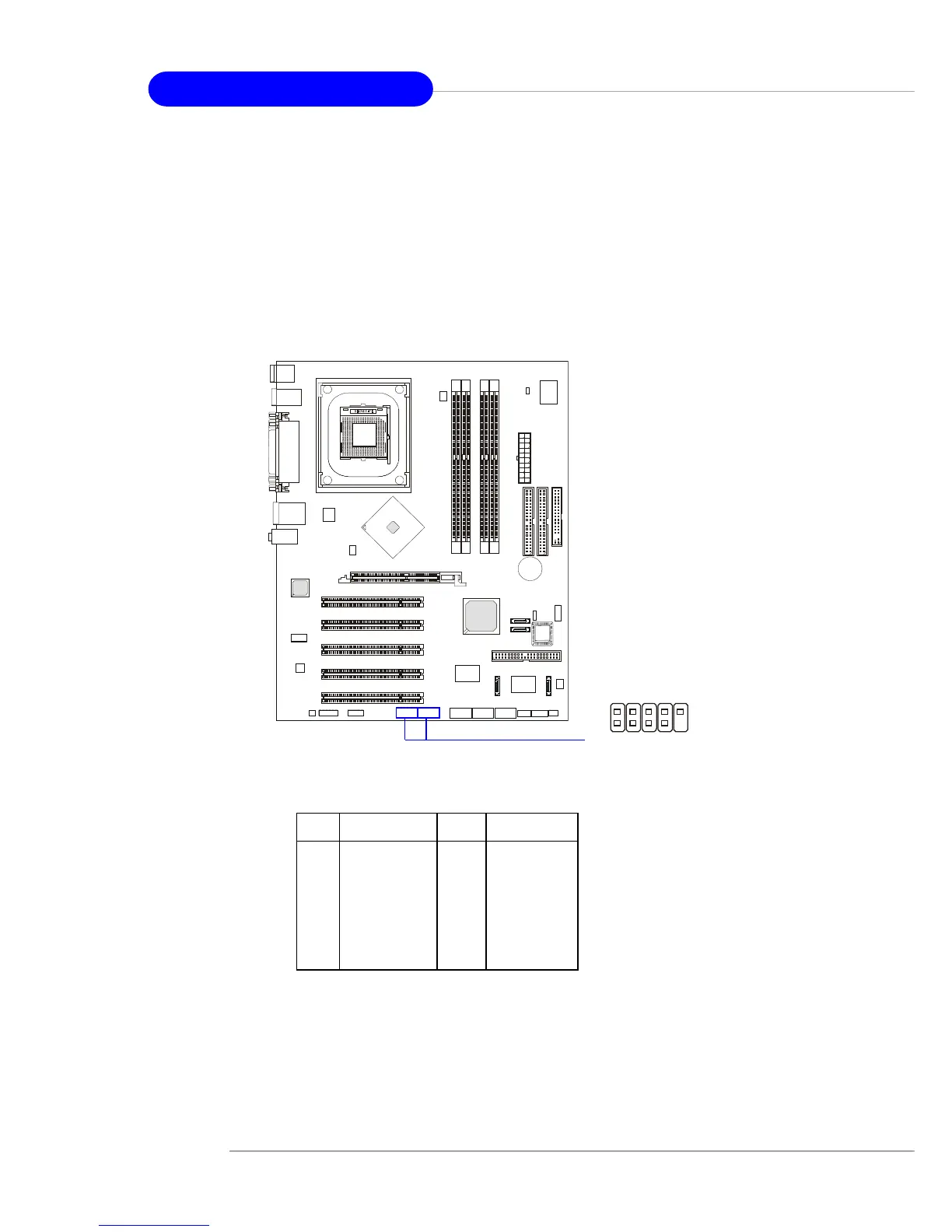

Front USB Connectors: JUSB1 & JUSB2 (Optional)

The mainboard provides two USB 2.0 pin headers JUSB1 & JUSB2

(Optional) that are compliant with Intel

I/O Connectivity Design Guide. USB

2.0 technology increases data transfer rate up to a maximum throughput of

480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting

high-speed USB interface peripherals such as USB HDD, digital cameras,

MP3 players, printers, modems and the like.

PIN SIGNAL PIN SIGNAL

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 GND 8 GND

9 Key (no pin) 10 USBOC

JUSB1 & JUSB2 Pin Definition

JUSB2, JUSB1

(USB 2.0/Intel spec)

2 10
