MSI 865PE NEO2-LS - Motherboard - ATX User Manual

Using 2-, 4- or 6-Channel Audio Function
A-7

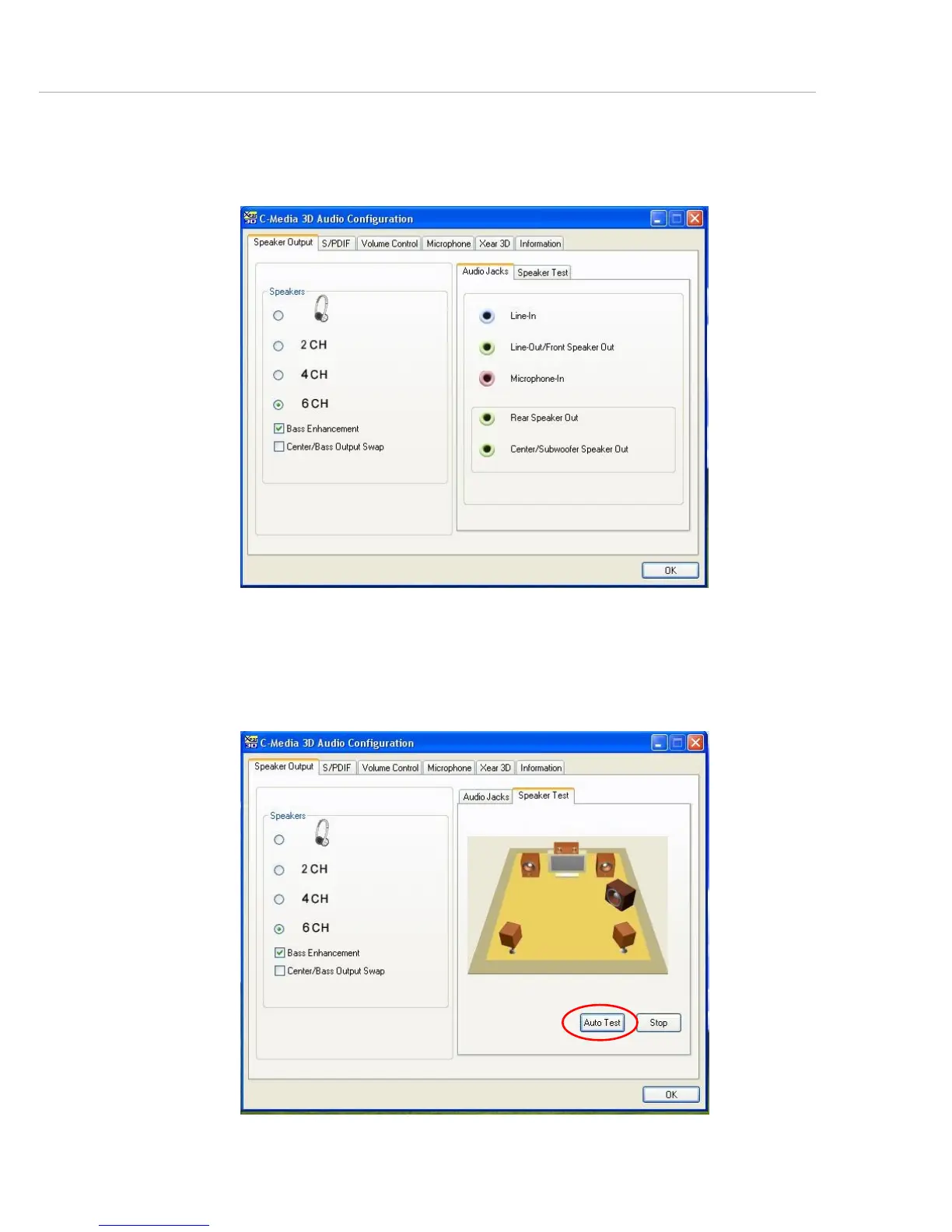

When you choose 6CH, the audio output will function as the screen showed
below.
Check the Speaker Test tab in the right side. It shows the speaker figure and
test environment complying with your speaker type settings as follows. You
can click Auto Test button or just click each speaker for testing your audio
connection. The sound will repeat unless you click Stop.

MSI 865PE NEO2-LS - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel 865PE
Socket	Socket 478
Memory Type	DDR SDRAM
Maximum RAM	4 GB
Supported RAM Speed	DDR 400/333/266
Expansion Slots	1 x AGP 8X, 5 x PCI
Integrated LAN	Yes
LAN Controller	Realtek RTL8100C
Audio Codec	Realtek ALC655
Audio Output	6-channel
Compatible Processors	Intel Pentium 4, Celeron
Memory Slots	4 x DIMM
Storage Interfaces	2 x ATA100, 2 x SATA 1.5Gb/s
LAN Ports	1 x RJ-45
USB Ports	8 x USB 2.0
