AIR INTAKE SYSTEMS
22
To service the air filter:
1. Press in on the tab in the air filter cover. See
Figure 3.10.
2. Swing open the cover and lift it off of the air filter
base.
3. Lift the air filter out of the base.
4. Replace the air filter or clean it, following the
steps described in Chapter 1: Introduction.
NOTE: When installing the air filter, make sure
the tabs on the filter fit in between the pins in the
air filter base.
See Figure 3.11.
5. Re-assemble by following the above steps in
reverse order.
Air filter base and intake elbow
To remove the air filter base:
1. Remove the air filter following the steps
described in the previous section.
2. Remove the two screws that hold the air filter
base to the intake elbow.
See Figure 3.12.
3. Lift the base off of the elbow.
4. Remove the two carburetor nuts using a 10 mm
wrench.
See Figure 3.13.
5. Slide the elbow off of the carburetor studs.

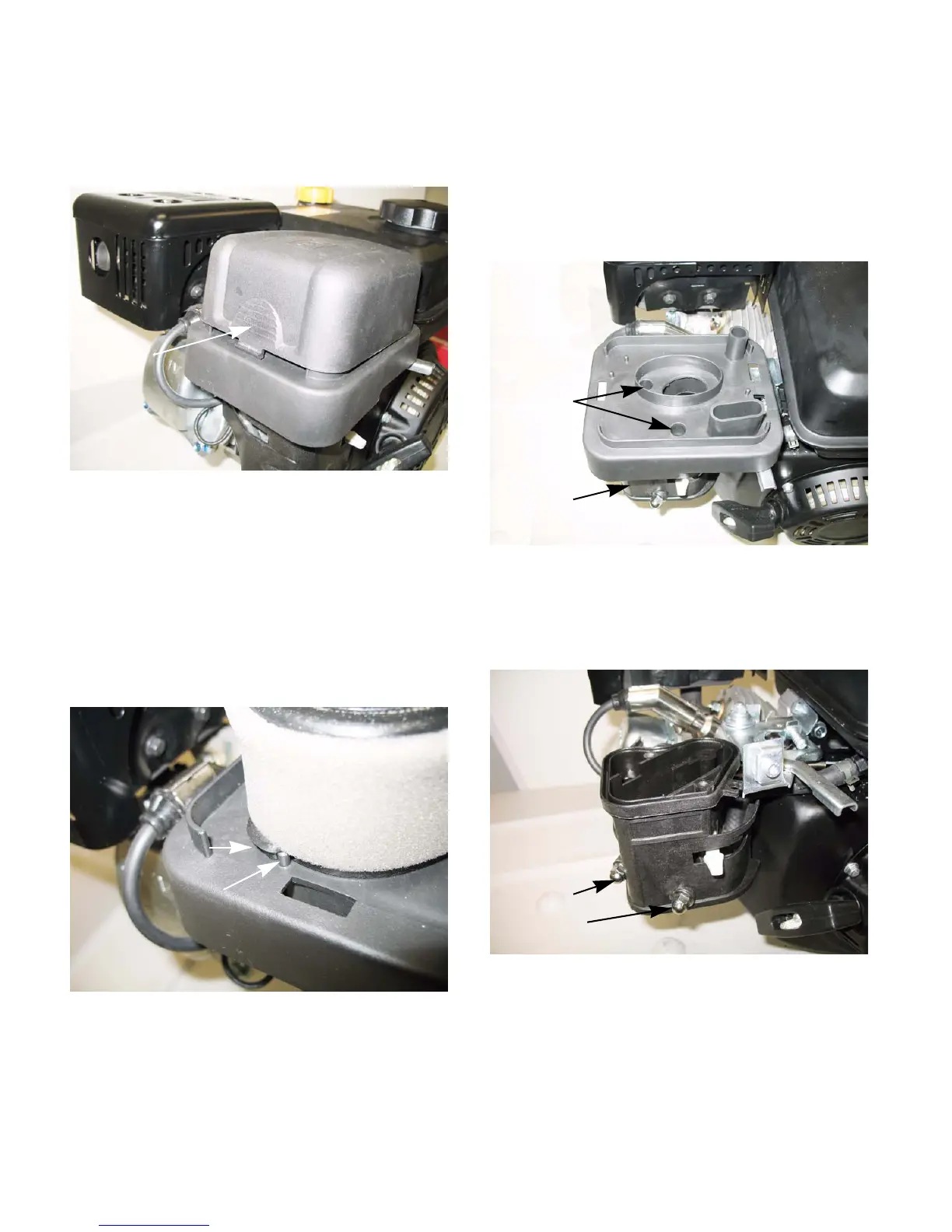

Figure 3.10
Press here
Figure 3.11
Tab
Pin
Figure 3.12
Mounting
screws
Intake elbow
Figure 3.13
Carburetor
nuts
