7.21.4 Engine Monitoring Unit EMU 7 – Plug connection check
Preconditions
☑Engine is stopped and starting disabled.
Checking EMU plug connections

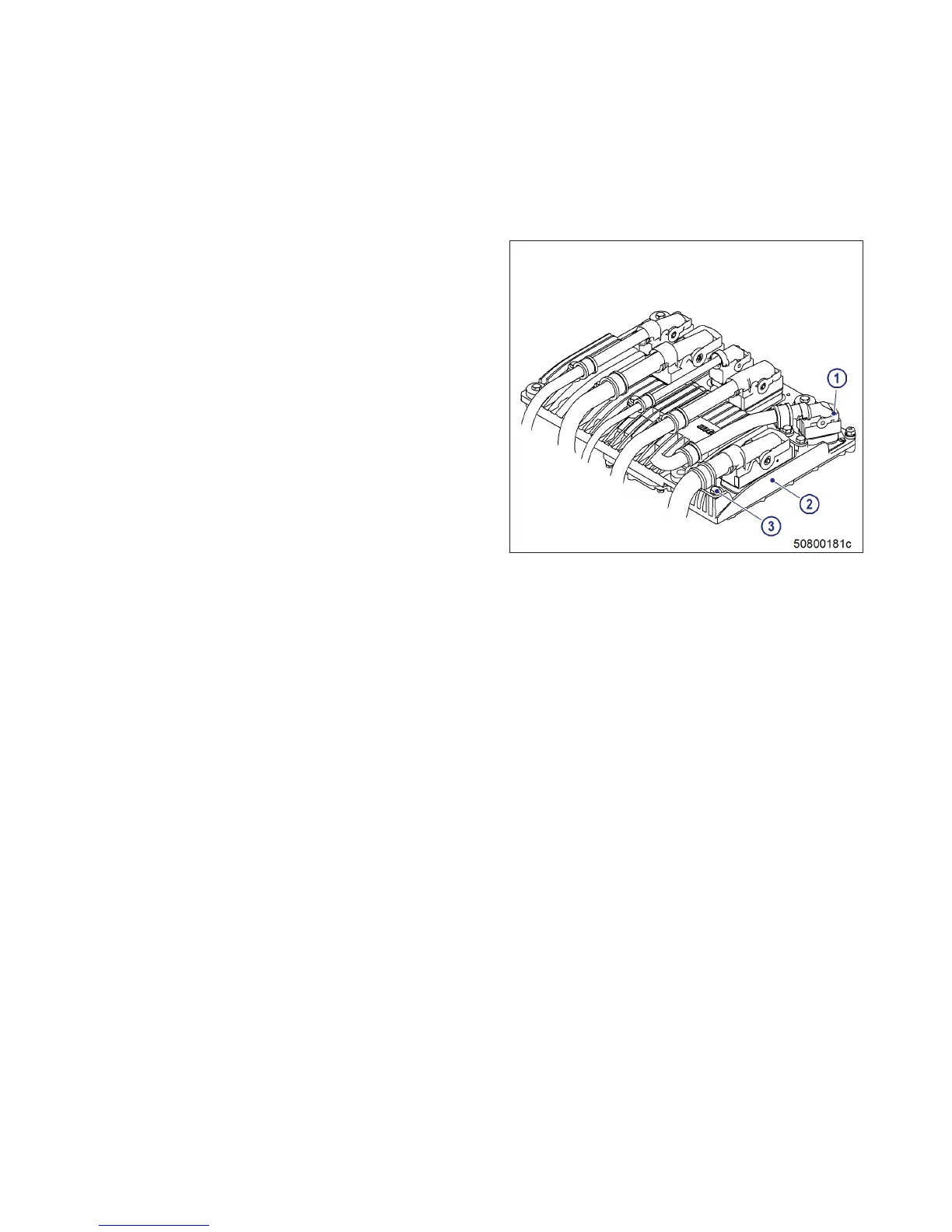

1. Check both connectors on EMU (2) for firm
seating. Ensure that the clips (1) are engag-
ed.
2. Check screws (3) of cable clamps on
EMU (2) for firm seating. Ensure that cable
clamps are not faulty.
M015655/05E 2015-06 | Task Description | 141
TIM-ID: 0000035355 - 002
