7.21.5 Interface module EIM plug connections – Check
Preconditions
☑Engine is stopped and starting disabled.
Checking EIM plug connections

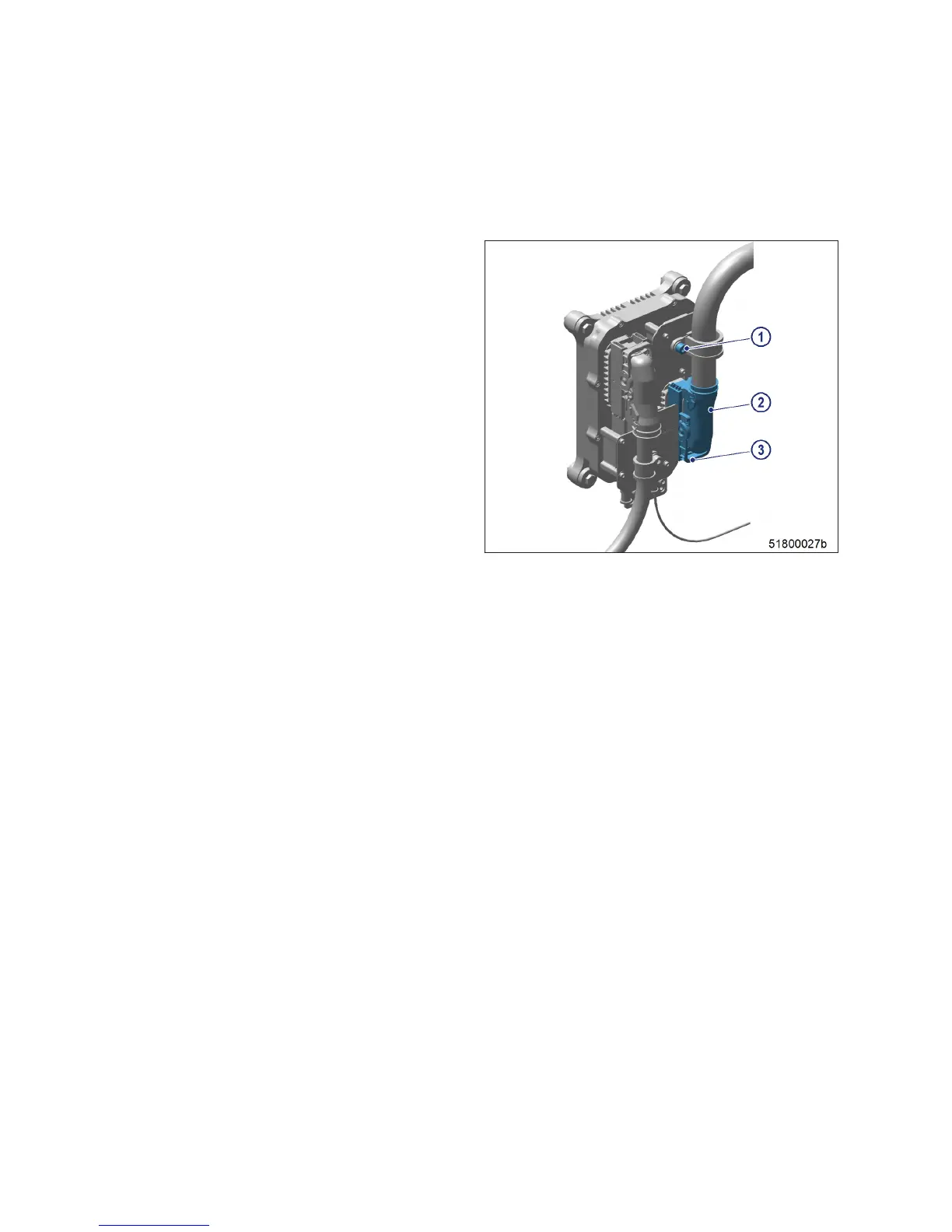

1. Check both Tyco plugs (62-pole) (2) on EIM
for firm seating. Ensure that clips (3) are
engaged.
2. Check screws (1) of cable clamps on EIM
for firm seating. Ensure that cable clamps
are not faulty.
142 | Task Description | M015655/05E 2015-06
TIM-ID: 0000017034 - 004
