Muller Elektronik SLURRY-Controller 3.0 User Manual

4
Mounting and installation
Installing sensors on the slurry tanker
18
V4.20191001
30322453-02-EN

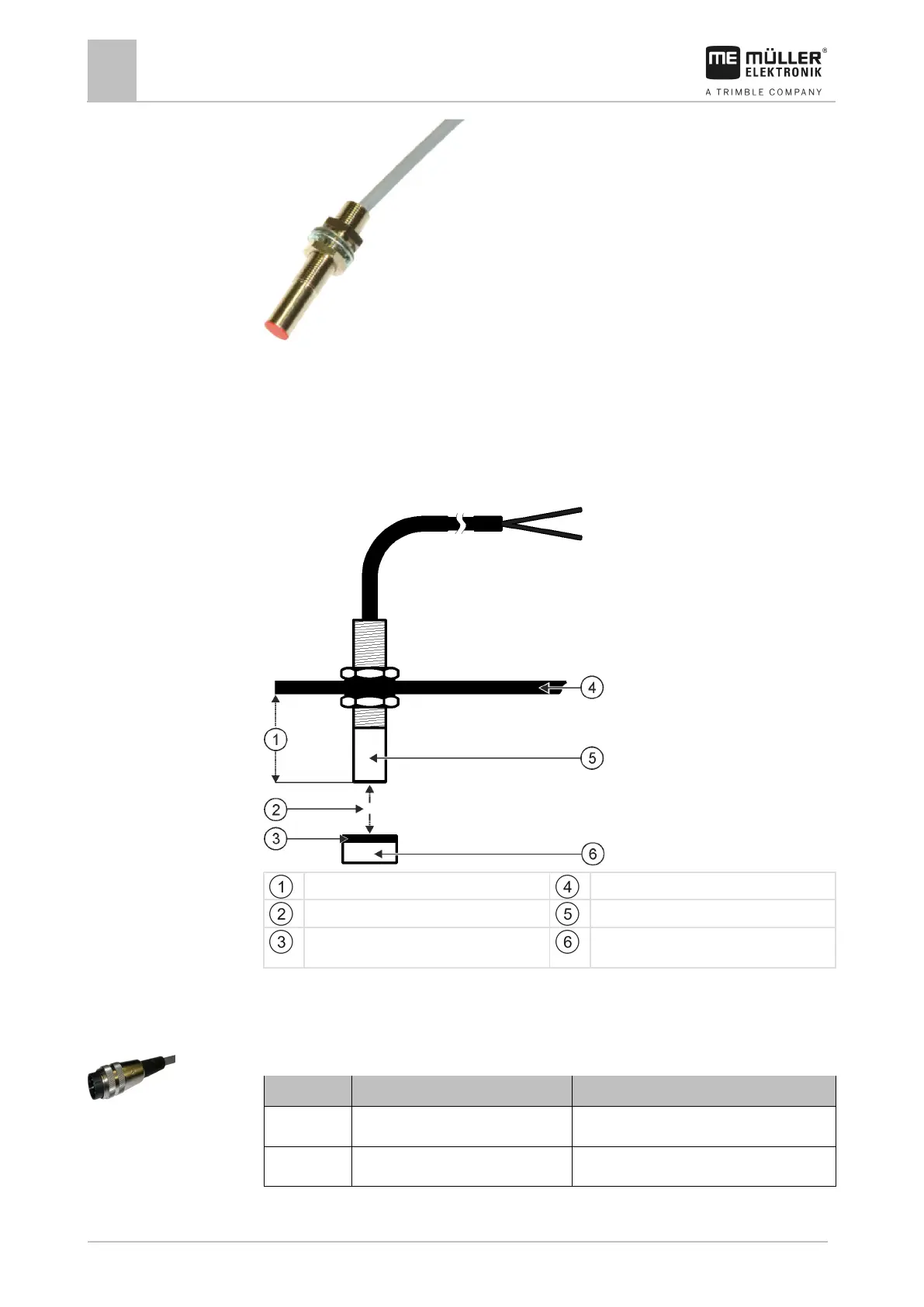

Functional principle
A signal is sent when the red side of a magnet is held in front of the red cap of the sensor. This
creates a connection between the signal line and the ground wire of the sensor.
Schematic overview
Min. 25 mm Attachment angle
Distance 15-25mm Sensor (red cap)
South pole of the magnet (red side)
Magnet (nonmagnetic attachment, e.g. V2A,
copper, brass)
Connector pin assignment
3-pin connector
Pin
Cable color
Designation
1
green
Signal
2
brown
