Muller Elektronik SLURRY-Controller 3.0 User Manual

Mounting and installation
Installing sensors on the slurry tanker
4
30322453-02-EN
V4.20191001
17

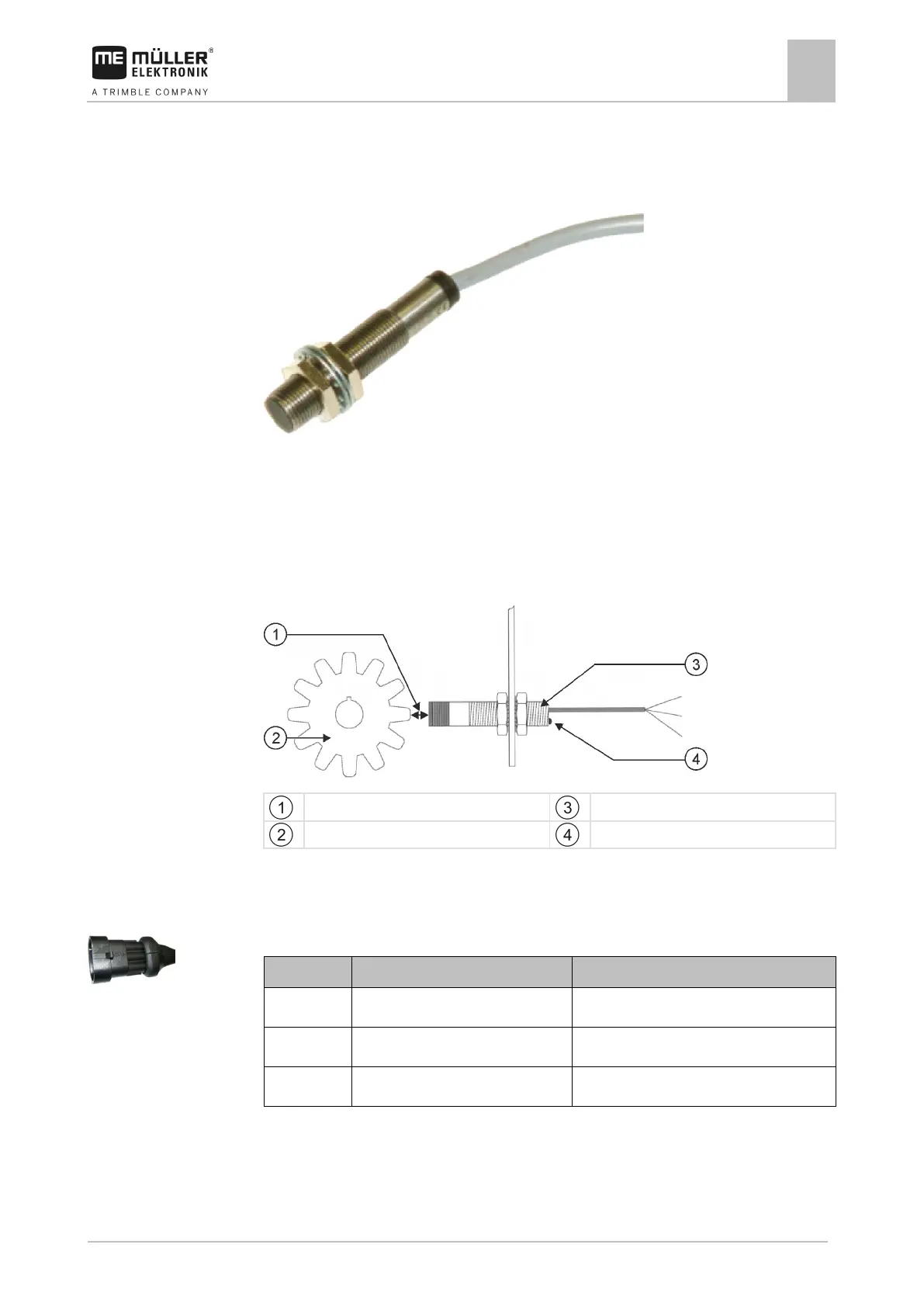

Installing the rotational speed sensors
Inductive sensors are suitable as rotational speed sensors.
Functional principle
A signal is measured when the magnet field of the sensor is influenced by an object made of
magnetically conductive metal. Stainless steel is not suitable for this.
Schematic overview
Reacting distance (depends on the sensor) Sensor
Metal object (e.g. gearwheel) Control LED
Connector pin assignment
3-pin AMP connector
Pin
Cable color
Designation
1
blue
0 VE
2
brown
12 VE
3
black
Signal
Installing the speed and position sensors
Reed contact sensors are suitable as speed and position sensors.
4.4.1
4.4.2
