Muller 6609d - Programming the Fold Length

Mod. 6609d-6612d: Automatic Forms Cutter 13.12.2006
-22-

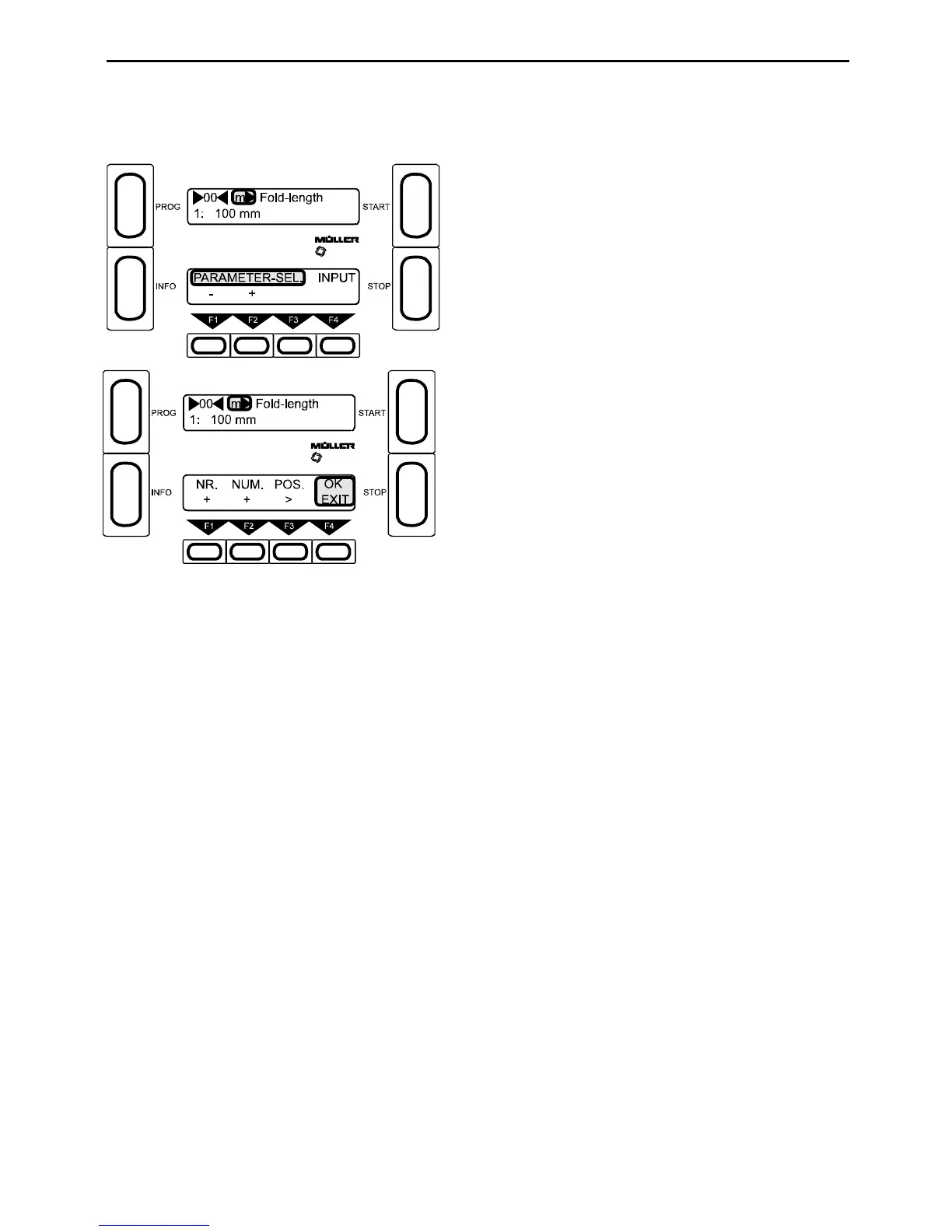

3.2.1.6 Parameter m) Programming the fold length
Button F4 - push enter
F1 - Select Folder 1-4 (R)
(The sequence 1-4 is equal to the set-up of the Folders
in paperflow direction). Max. you can connect up to four
Folders in line.
F2 - Digit selection (0-9) (R)
F3 - actuall writte position =_ (R)
F4 - End
The fold-length input is in mm (i.e. 100 mm).
Fold length: min 50 mm, max. 231 mm
