Muller 6609d - Program Sequence; Possible Cuts with Special Length

Mod. 6609d-6612d: Automatic Forms Cutter 13.12.2006
-18-
Parameter j) Program Sequence
The lengths in parameter i) can now be entered in the desired sequence under the numbers 1-9. The machine
passes through all positions from 1-9 in every cycle. When length 0 is entered, this position is passed over without
action in the program sequence.

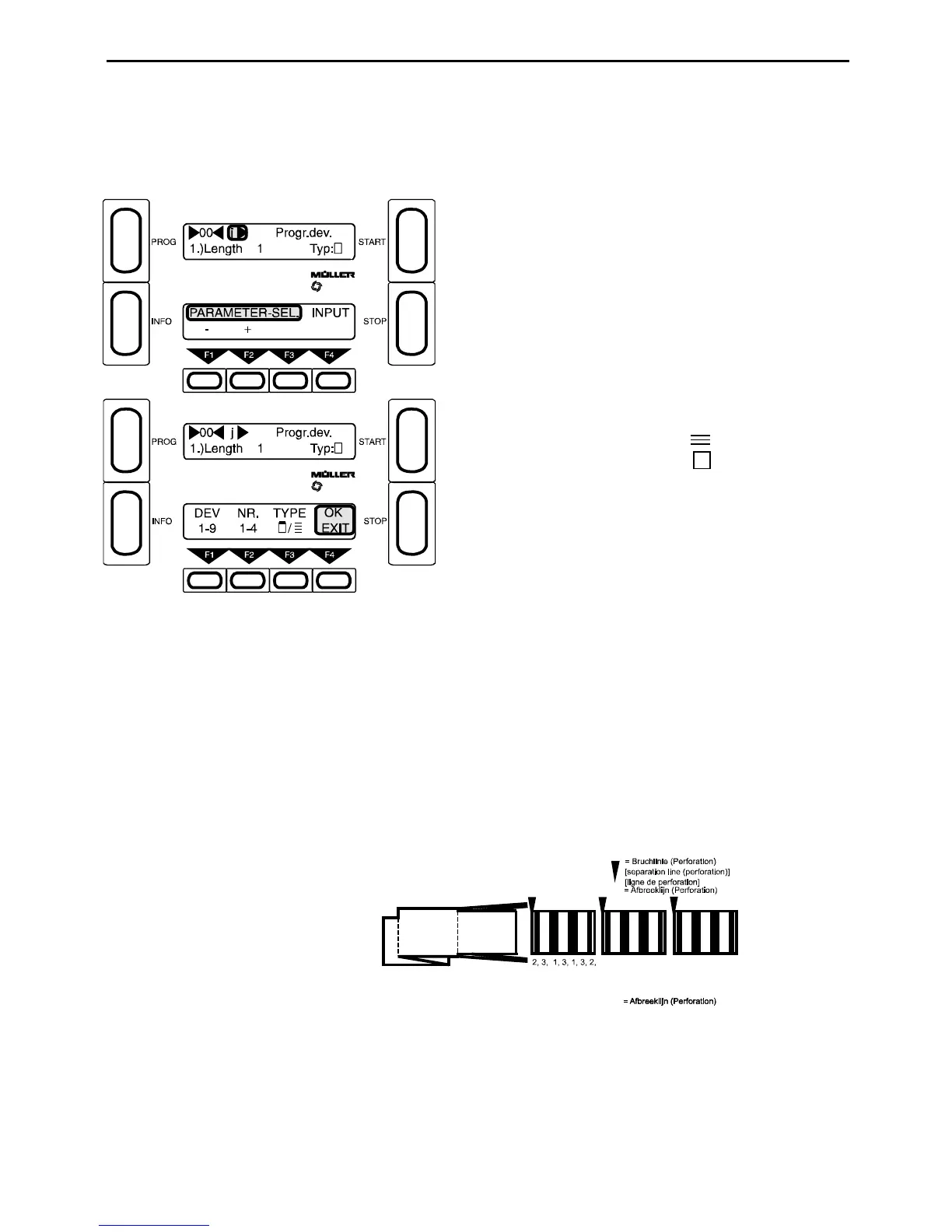

F4 - Press Input
F1 - Sequence (1-9) (R)
F2 - Length 1-4 or 0 from parameter i) (R)
F3 - Form will be chopped
Form will not not be chopped
F4 - Exit
Multiple distribution of lengths 1-4 from parameter i) among positions 1-9 is also possible. In additi on, it is possible
to decide at each position (1-9) whether the length 1-4 displayed here is to be performed completely or whether the
form is to be chopped.
Chopping witdh: 3/6" means that a feed length of 2" will be cut with 4 cycles (1 cycle = 3/6").
When using counter function ONLINE #00/#01 (see section 3.3.3) note the following:
The function entered under line #01 is carried out until the section before the last section is reached.
The function entered under line #00 is carried out when the last section is reached.
Possible cuts with Special Length:
The following example is stored in the machine under program slot 99 (fixed program):
Parameter i) Special Length (1/6" is set in Length c)):
No. 1 - 002 x 1/6"
No. 2 - 004 x 1/6"
No. 3 - 020 x 1/6"
Parameter j)
Program sequence:
1.) Length 2
2.) Length 3
3.) Length 1
4.) Length 3
5.) Length 1
6.) Length 3
7.) Length 2
8.) Length 0
9.) Length 0
The type of cut in our example is ‘do not chop’.
But it could also be ‘chop’, e.g. in program sequence i), point 6.), length 3.
