Mod. 6609d-6612d: Automatic Forms Cutter 13.12.2006
-25-

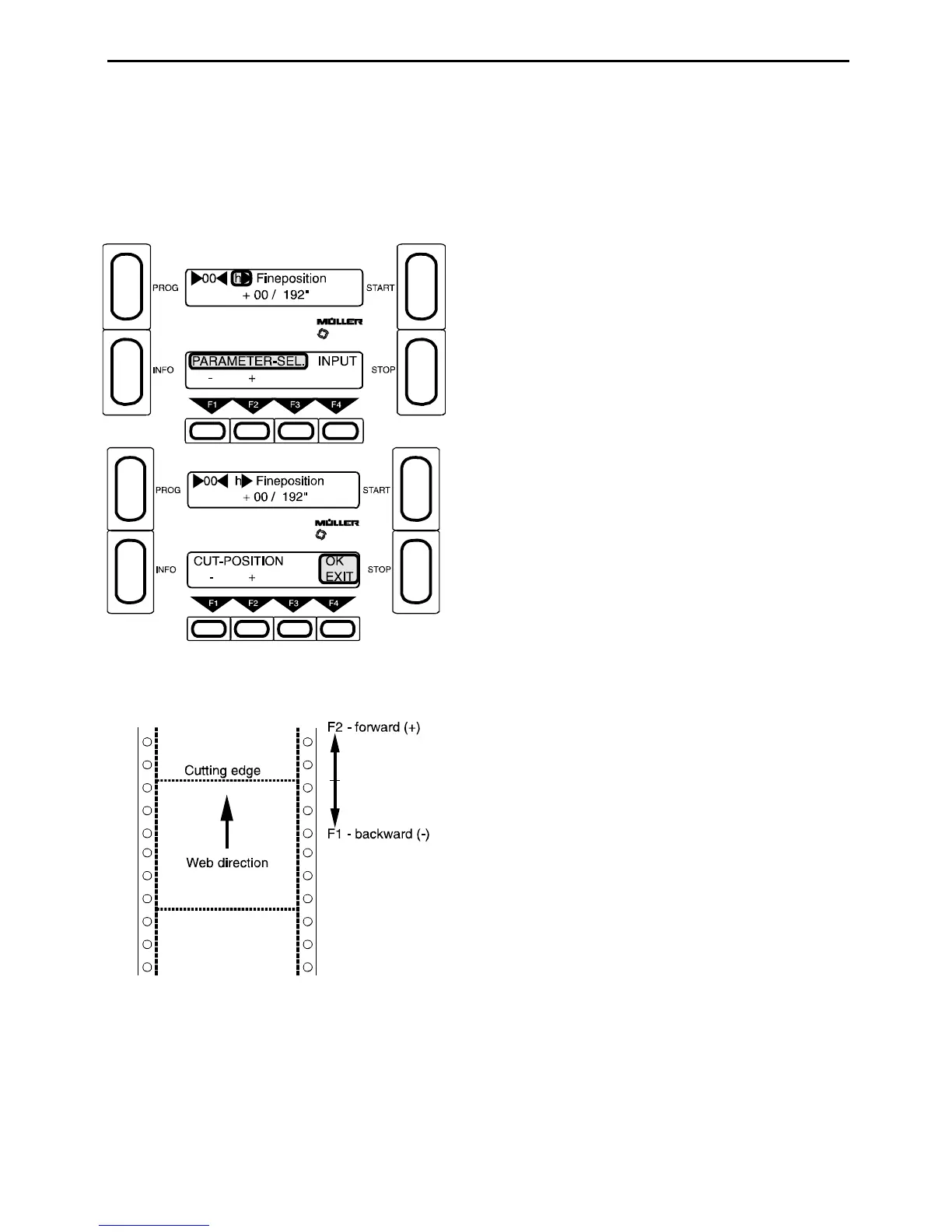

3.3.1.4 Parameter h) Fine Position
This parameter can be used for fine adjustment of the cross cut position. This is done in steps of
1/192". The cutting position can be adjusted to a maximum of 31/192" forward or reverse.
F4 - Press Input
The fine position can also be changed during continous
operation. The change will automatically be saved i n the
current program.
F1 - 1/192" reverse
F2 - 1/192" forward
F4 - Exit
The paper is moved forwards in relation to the blade.
The paper is moved backwards in relation to the blade.
F1 and F2 can be used to adust the cutting position
during continous operation.
