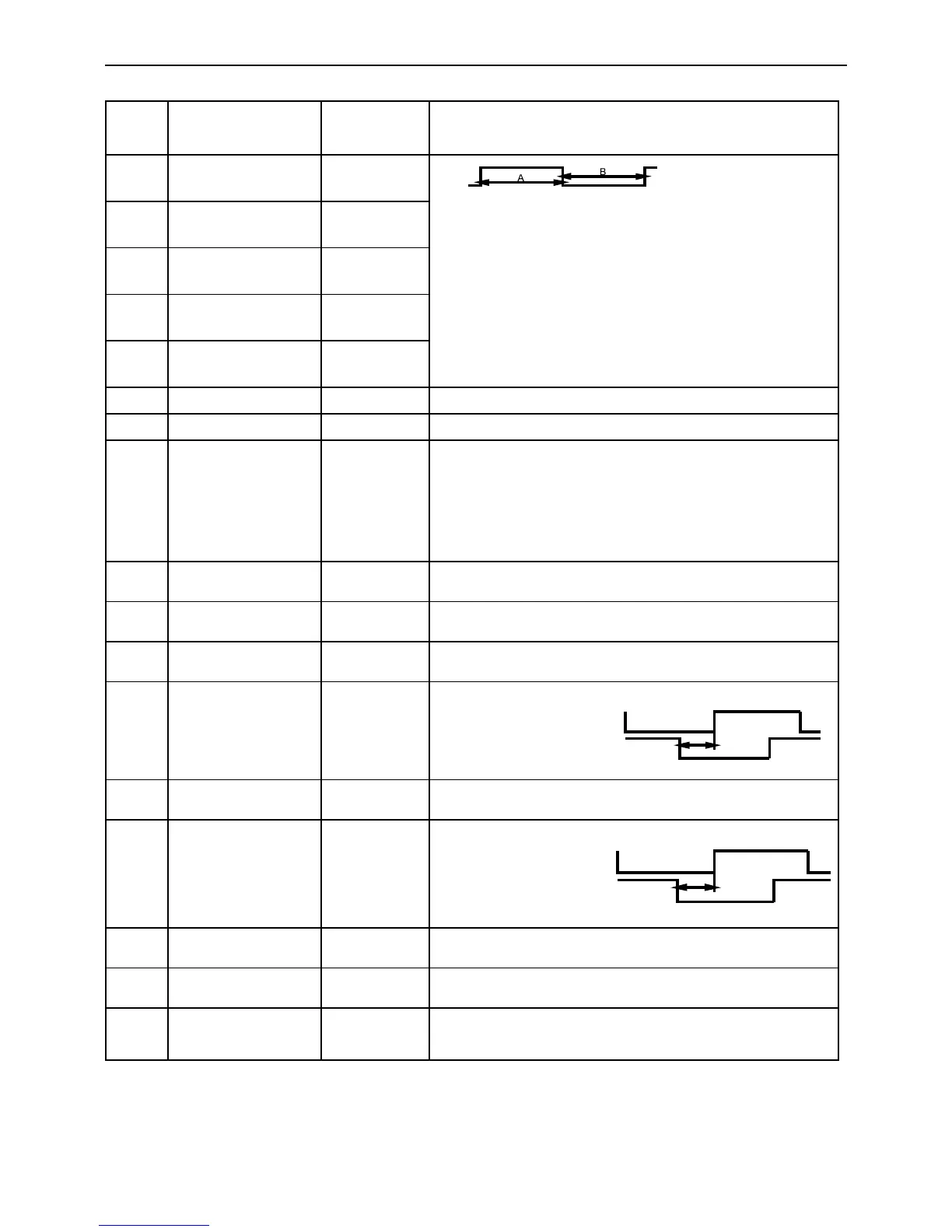

Mod. 6609d-6612d: Automatic Forms Cutter 13.12.2006
-44-
Service
routine
no.
Function Display when a
service routine is
started
Comments
010 2) Automatic adjustment
Opto 1-4
A:B =
50:50
Set value = 050 (045-055 tolerance range)
Caution: Do not start the machine before carrying out the following
precautionary measures:
Check the distance between the heads and the encoder disk (0,3mm). Make
sure the fibre-optic is correctly plugged in. Lower blade test run: Upper blade
must move freely to meet lower blade (fix the cable clamp between blade bar
and adjusting screw).
If service routine 10 is finished, the display changes into service no 9 level 3
and shows the DA values. The DA-values should not be over 200. (for further
information see pt. 4.4, S.52). Press the "Prog"-button two times and start
service routine no 000 to return to the program.
011 Opto 1 Adjust cross cutter 000-100
display range
012 Opto 2 Adjust cross cutter
000-100
display range
013 Opto 3 Adjust tractor 000-100
display range
014 Opto 4 Adjust tractor 000-100
display range
015 Opto 5 000, 002 Not in use at present
016 Opto 6 OMR Like service 17 for head 6
017 Opto 7 OMR
Test routine
(machine must be
switched off -
unplug online machines)
000-015
display range
Binary addition of the OMR marks recognized. In this test a maximum of four
marks are read (in four successive lines, AL + 3 li nes). Before the test routine
is started, the adjustment line (AL) of the test form must be positioned in the
groove on the reading head. Caution! The machine must be switched off -
unplug all online machines. Then start the test routine. 001 = first OMR mark
(AL), 002 = second mark, 004 = third mark and 008 = fourth mark. Altogether
015. In a correct reading operation the result shown in the display must be
stable.
018 Opto 8 End of paper 000
001
No paper
Paper present
019 Hall sensor cover 000
001
Plexiglass cover closed
Plexiglass cover open
020 Hall sensor pressure-
switch
000
008
008 pressure ok
021 Opto 1-2 Phase position
cross cutter
000-100
display range
Set value = 040
(030-065 tolerance range )
Caution: Service routine 10
must be started first!
022 Cross cutter - motor 001-255
display range
Motor test, together with test of electric drive circuits.
023 Opto 3-4 Phase position
tractor
display range 6609/10: Set value = 040
(030-055 tolerance range)
6611/12: Set value = 040
(030-050 tolerance range)
Attention: You will have to
START with Service Routine
10 first!
024 Tractor motor 001-255
display range
Motor test, together with test of electric drive circuits.
025 Edge knife and
ejector motor
001-255
display range
Motor test, together with test of electric drive circuits.
026 3) Motor test 8V 001-255
display range
Motor test: Use extension to plug motor into ejector socket, and with your
hand hold the belt pulley still. If the pulley makes jerky movements this is an
indication of faulty winding.
2) Only for forms cutters with new main board (no pots.)
3) Only for forms cutters with central computer chip "H..... 42/94"
