Two: Plumbing and Wiring Examples 11
Providing a brighter solution.™
Section 2:
Plumbing Examples

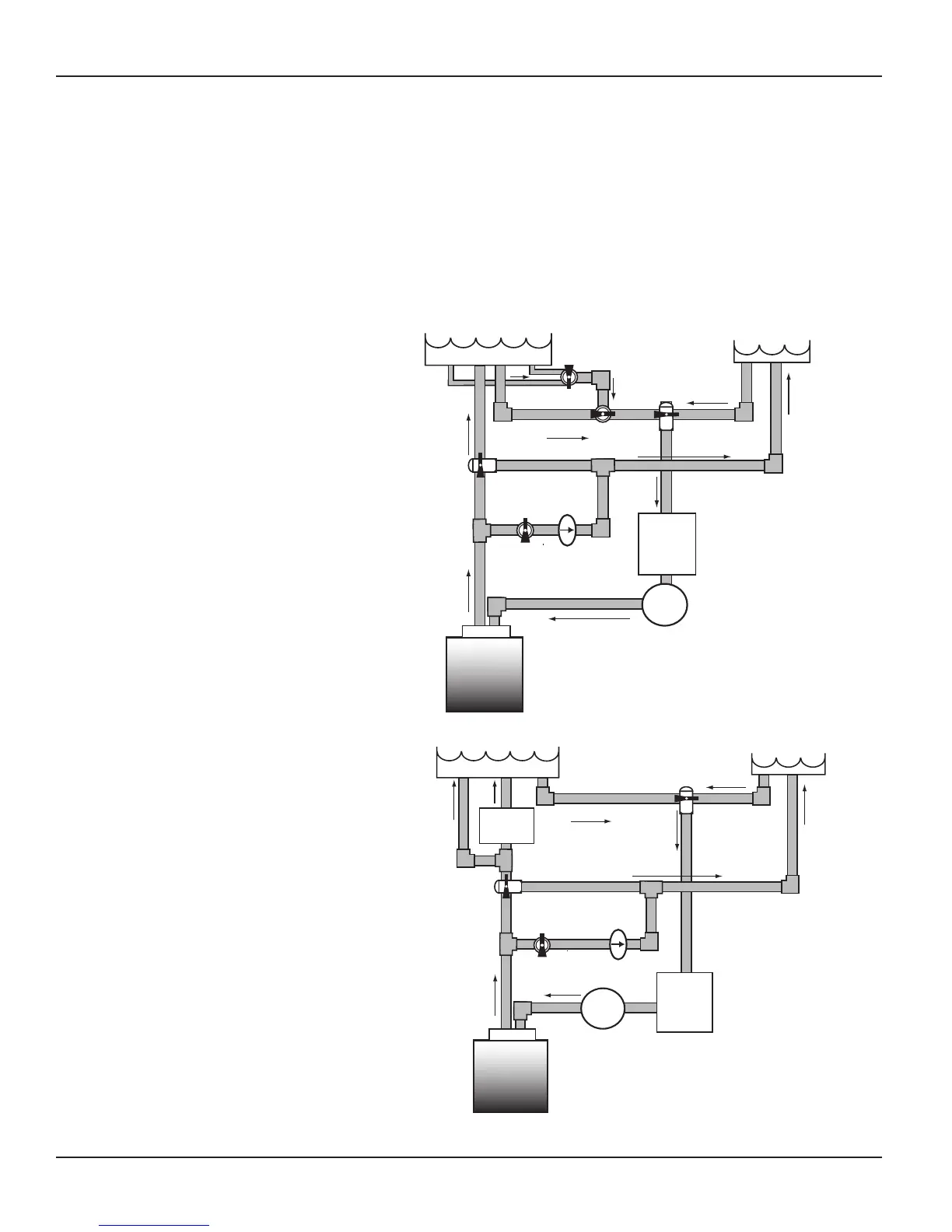

The following diagrams show several plumbing and wiring examples of installations for pool and
spa that share a single filter pump, filter, and heater. If you are installing a pool only or spa only,
these diagrams will not apply.
For Pool and Spa
Combo Installations
For Booster Pump Pool
Cleaner Installations
Pool
Spa
Filter
Check
Valve
Spa
Make-up
Filter
Pump
Intake
Return
Return
Intake
Skimmers
Heater
Pool
Spa
Filter
Check
Valve
Spa Make-up
Filter
Pump
Intake
Return
Return
Intake
Heater
Booster
Pump
To Next Page
