Three: PE653 Receiving Device Installation 23

Providing a brighter solution.™

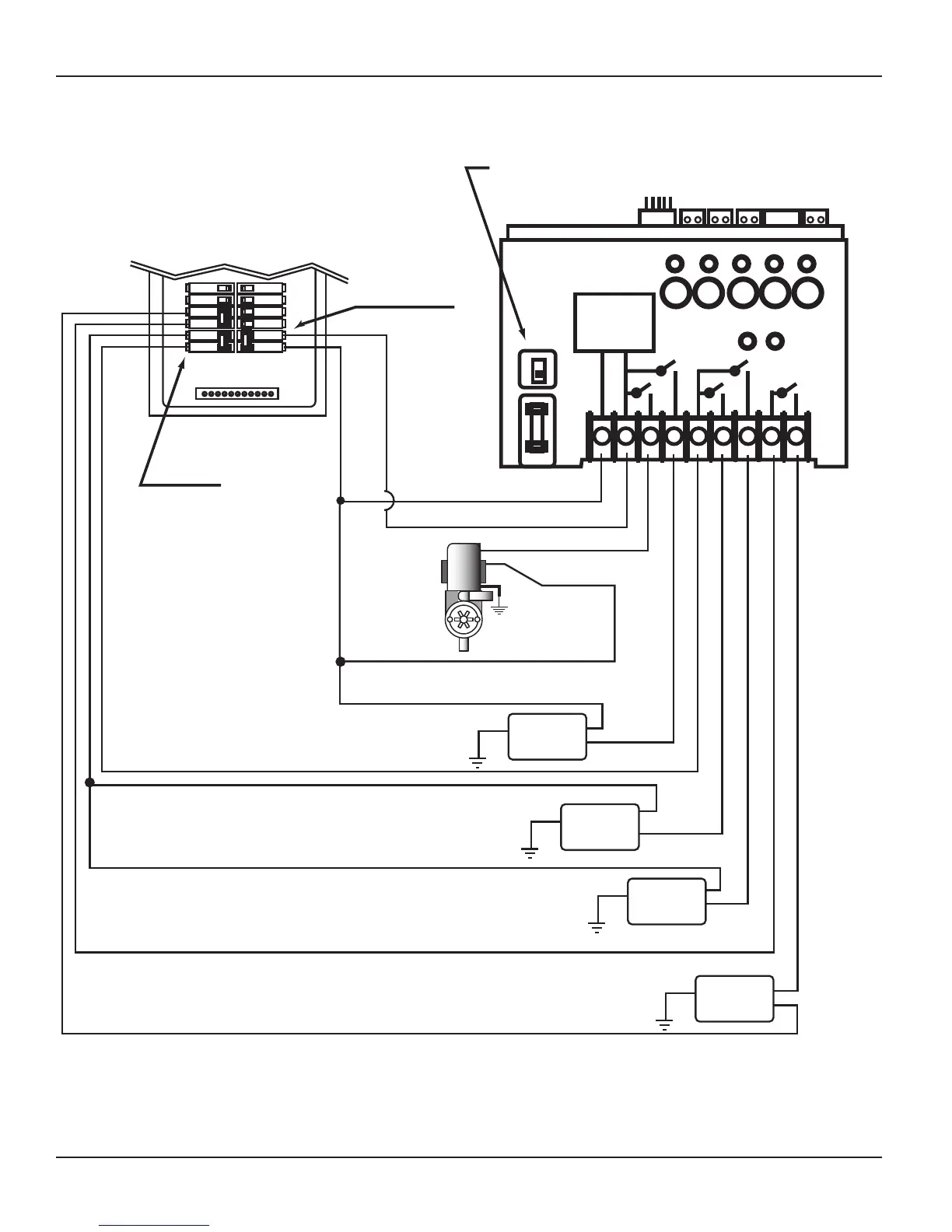

240V 1-speed pump + any four 240 VAC auxiliary equipment

Figure 3-10

NEUTRAL BUS

2- pole

Breaker

2- pole

Breaker

Select Breaker to match wire size

and load requirement. Observe

maximum control circuit capacity.

240 VAC

1-Speed

Pump

# 1 Button

1 2 3 4 5 6 7 8 9

RECEIVER

POWER

SUPPLY

120V

240V

1 2 3

4 5

240 VAC

Aux.

# 2 Button

# 3 Button

# 4 Button

# 5 Button

Make sure that voltage selector switch is in 240V

position before applying power to Terminals 1 & 2

NOTE:

The combined load on Terminals 6 & 7

must NOT exceed 15 amps Resistive.
