Multi Wave PE653RC - 240 V Pumps; 240 V 1-Speed Pump

22 Multi-Wave PE653-PE953 Installation Guide
Copyright © 2010 Intermatic, Inc.
240V Pumps

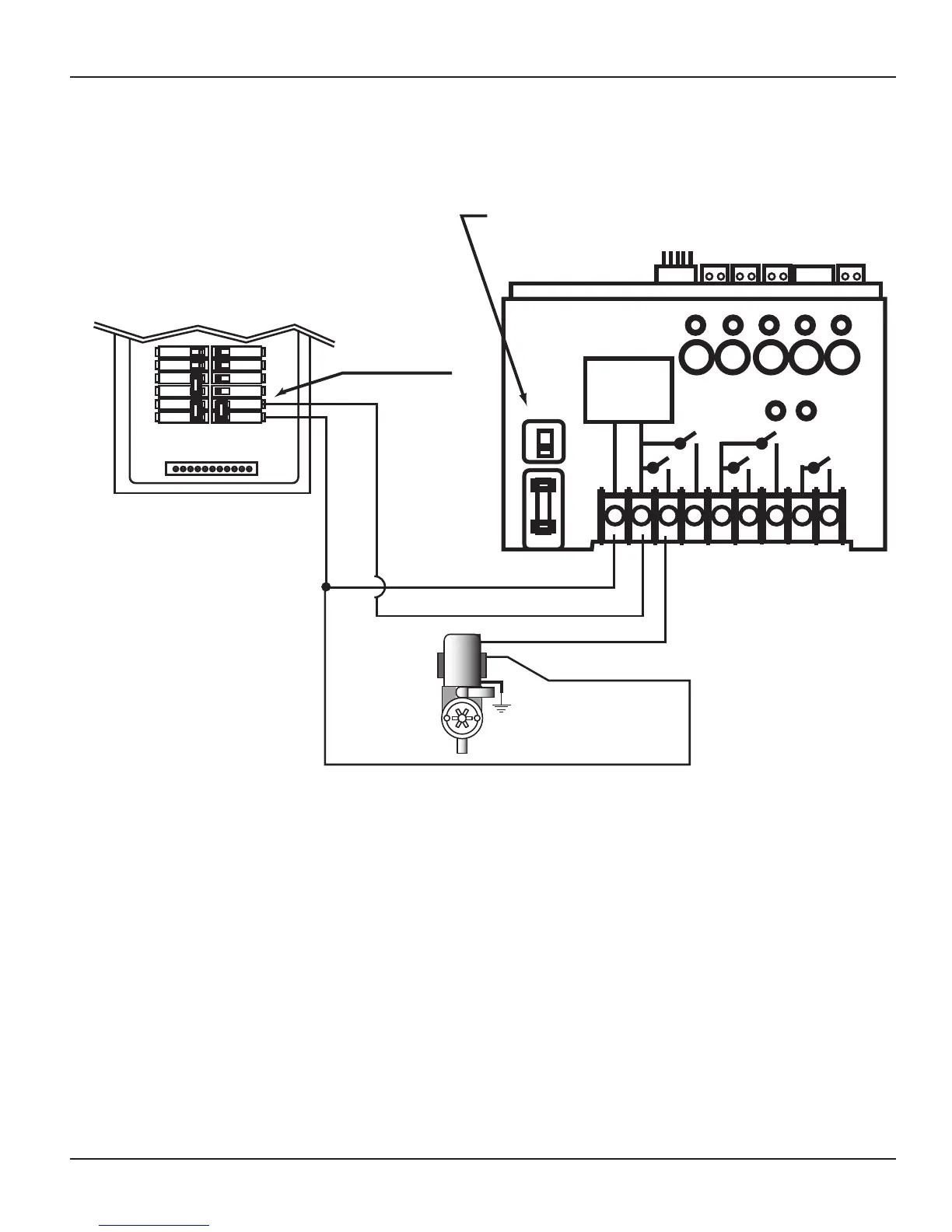

240V 1-speed pump
Figure 3-9
NEUTRAL BUS
2- pole
Breaker
Select Breaker to match wire size
and load requirement. Observe
maximum control circuit capacity.
240 VAC
1-Speed
Pump
L1
L2
# 1 Button
1
2 3 4 5 6 7 8 9
RECEIVER
POWER
SUPPLY
120V
240V
1 2 3 4 5
Make sure that voltage selector switch is in 240V
position before applying power to Terminals 1 & 2
