Multi Wave PE653RC - 240 V 2-Speed Pump + any 3 120 VAC Auxiliary Equipment

28 Multi-Wave PE653-PE953 Installation Guide
Copyright © 2010 Intermatic, Inc.

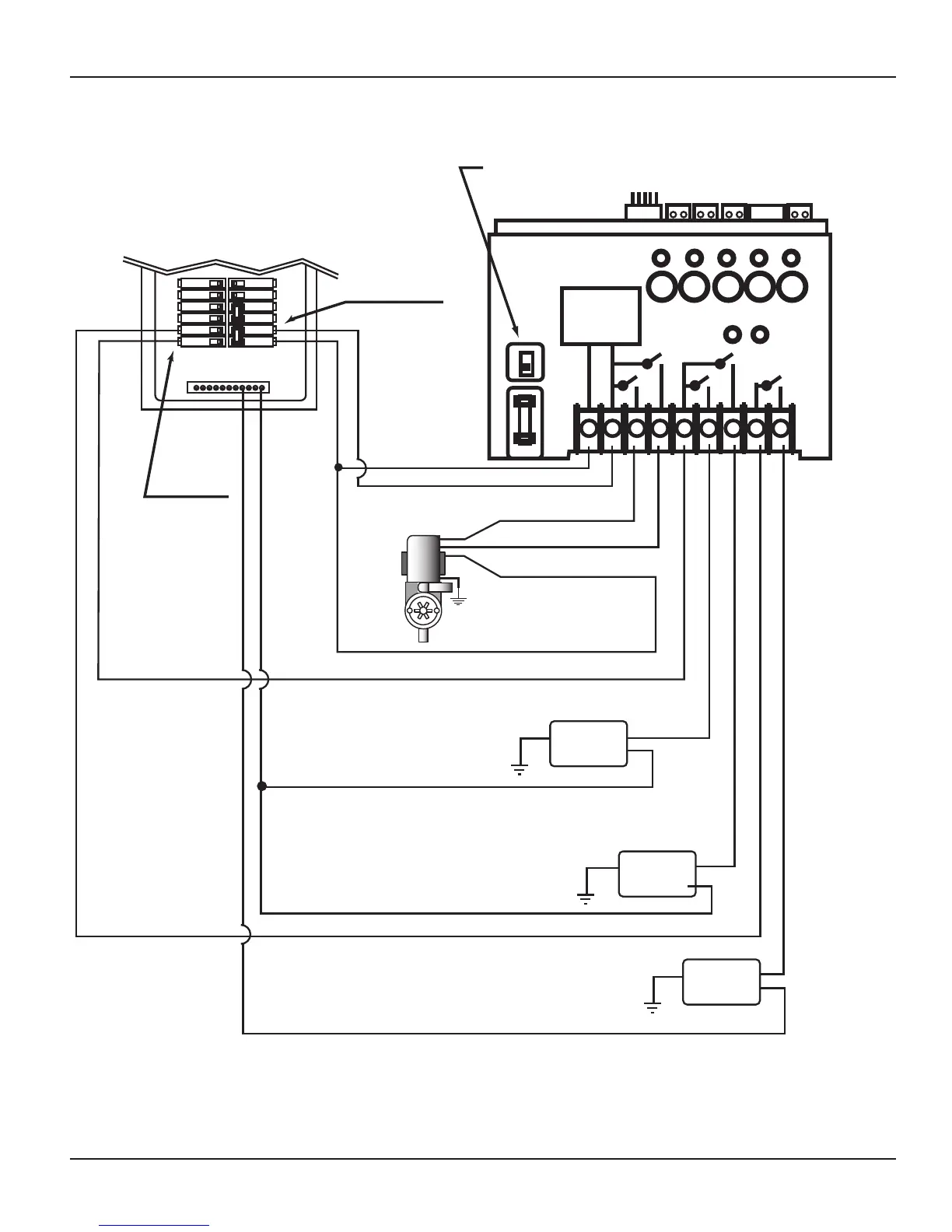

240V 2-Speed pump + any 3 120 VAC auxiliary equipment
Figure 3-15
NEUTRAL BUS
1 2 3 4 5 6 7 8 9
RECEIVER
POWER
SUPPLY
120V
240V
1 2 3 4 5
LOW
2-pole Breaker
1-pole
Breakers
15 A. Max
Select Breaker to match wire size
and load requirement. Observe
maximum control circuit capacity.
240 VAC
2-Speed
Pump
HIGH
COMMON
# 1 Button
# 2 Button
Make sure that voltage selector switch is in 240V
position before applying power to Terminals 1 & 2
120 VAC
120 VAC
120 VAC
Aux.
# 4 Button
NOTE:
The combined load on Terminals 6 & 7
must NOT exceed 15 amps Resistive.
Aux.
# 3 Button
Aux.
# 5 Button
