Multi Wave PE653RC - 120 V 1-Speed Pump + any Four 120 VAC Auxiliary Equipment

Three: PE653 Receiving Device Installation 19
Providing a brighter solution.™

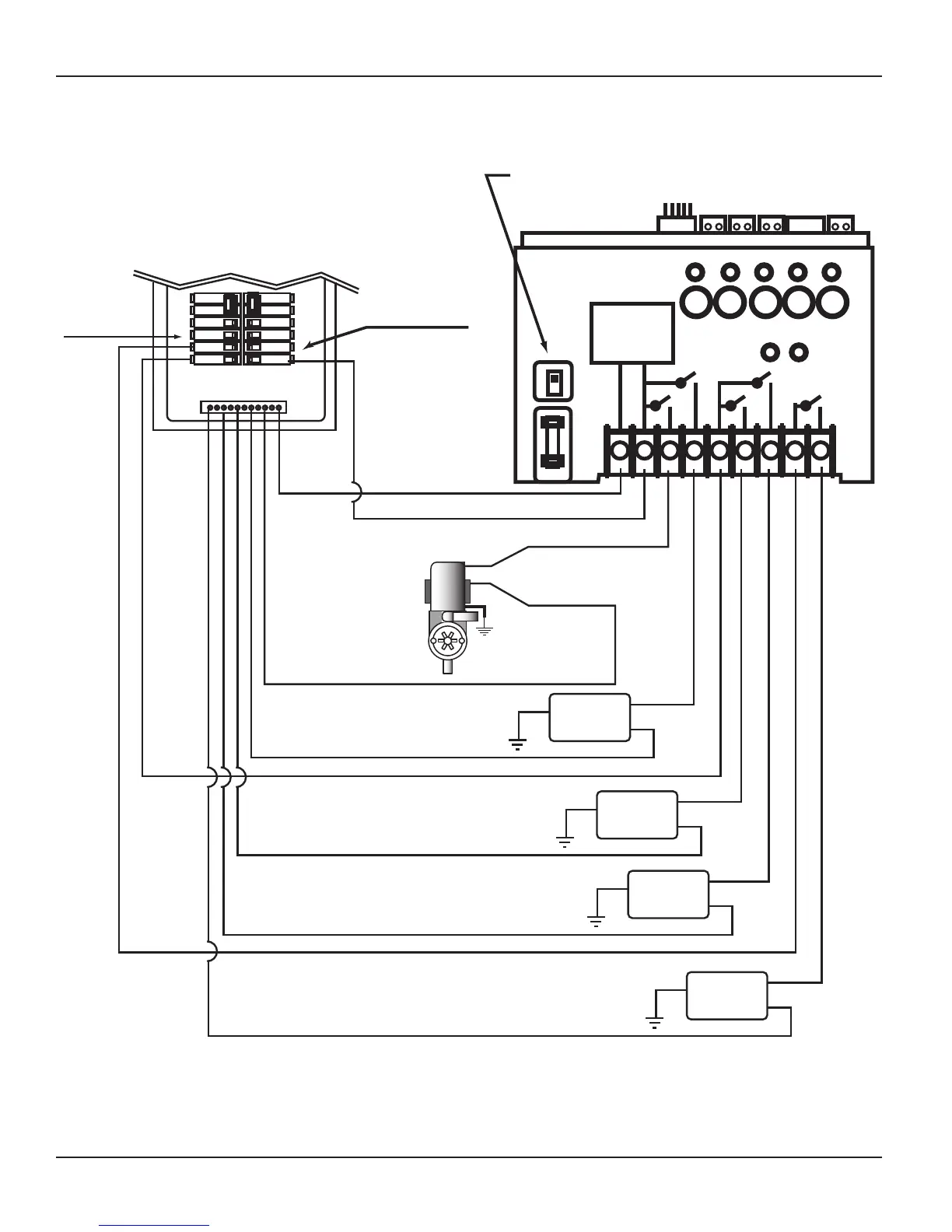

120V 1-speed pump + any four 120 VAC auxiliary equipment
Figure 3-6
1-pole Breaker
1-pole
Breakers
15 A. Max.
NEUTRAL BUS
Select Breaker to match wire size
and load requirement. Observe
maximum control circuit capacity.
120 VAC
1-Speed
Pump
HOT
NEUTRAL
# 1 Button
1 2 3 4 5 6 7 8 9
RECEIVER
POWER
SUPPLY
120V
240V
1 2 3 4 5
120 VAC
Aux.
120 VAC
Aux.
120 VAC
Aux.
120 VAC
Aux.
# 1 Button
# 2 Button
# 3 Button
# 4 Button
# 5 Button
Make sure that voltage selector switch is in 120V
position before applying power to Terminals 1 & 2
NOTE: The combined load on Terminals 6 & 7
must NOT exceed 15 amps Resistive.
