Introduction to the Trigger System
As shown in Figure 3-12, there are one rotary control and three buttons make up
Trigger Controls. The following practices will direct you to be familiar with the
setting of the trigger system gradually.

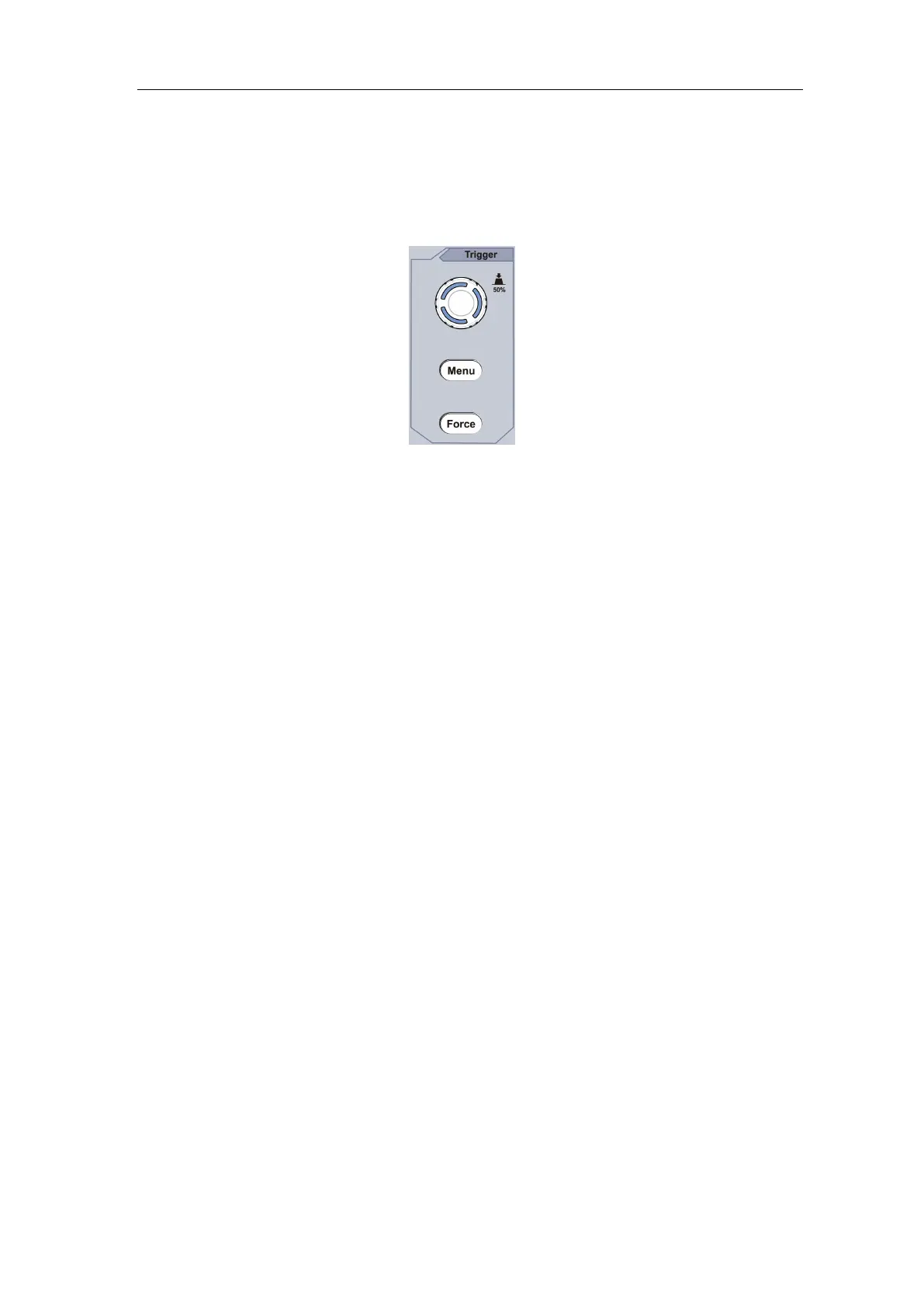

Figure 3-12 Trigger Control Zone
1. Push the Trigger Menu button and call out the trigger menu. With the operations
of the menu selection buttons, the trigger setting can be changed.
2. Use the Trigger Level rotary control to change the trigger level setting.
By turning the Trigger Level rotary control, the trigger indicator in the screen
will move up and down. With the movement of the trigger indicator, it can be
observed that the trigger level value displayed in the screen changes accordingly.
Note: Turning the Trigger Level rotary control can change trigger level value
and it is also the hotkey to set trigger level as the vertical mid point values of the
amplitude of the trigger signal.
3. Push the Force button to force a trigger signal, which is mainly applied to the
"Normal" and "Single" trigger modes.
